ADJ ElectraPix Bar 16 Pak Lighting Fixture Package

ADJ ElectraPix Bar 16 Pak Lighting Fixture Package

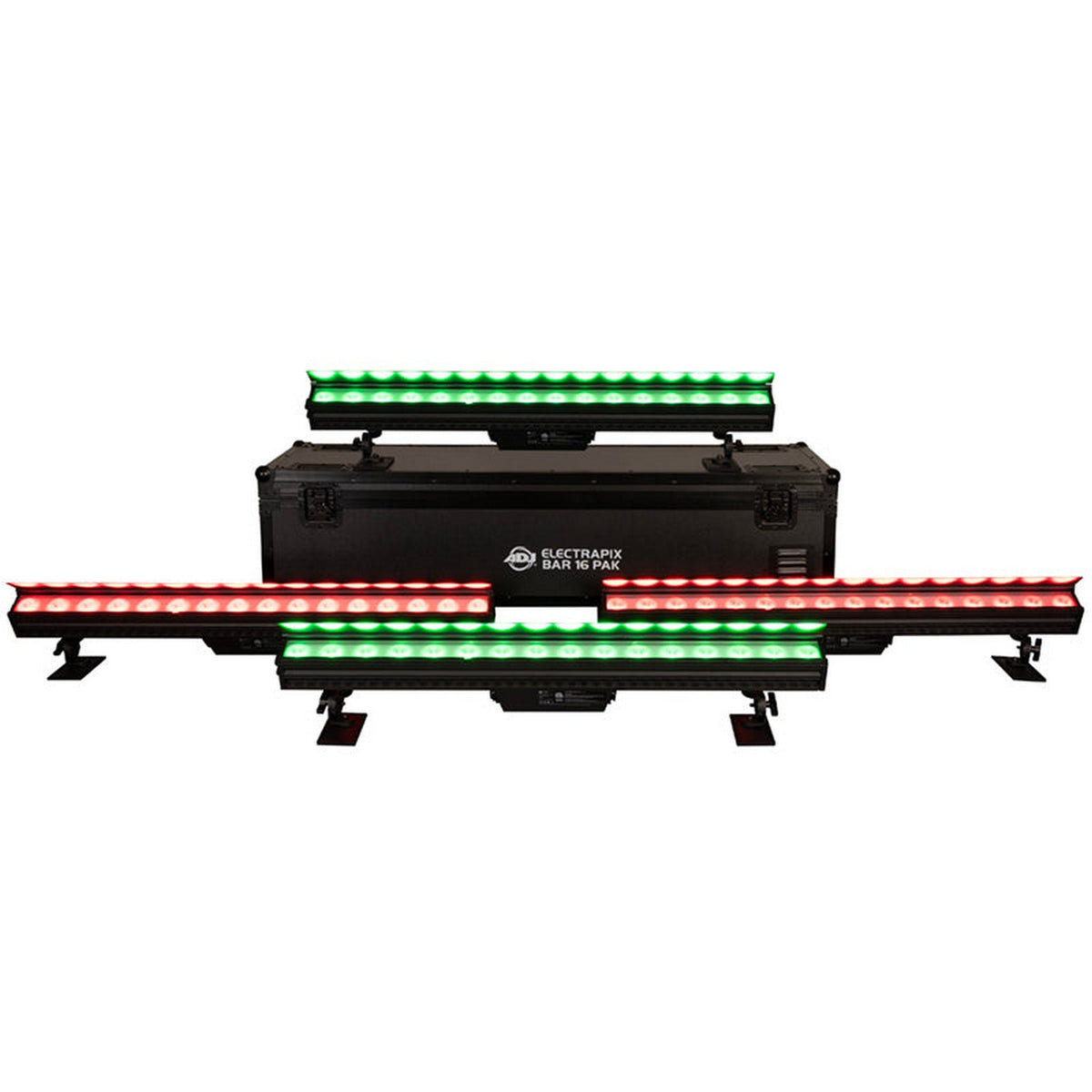

The ElectraPix Bar 16 Pak from ADJ is a robust, portable lighting system designed for professional stage and event use. It includes four battery-powered ElectraPix Bar 16 fixtures housed in an IP65-rated flight case for easy transport and charging.

Each fixture features sixteen 20 W Hex Color RGBAL+UV LEDs, individual pixel control, wireless DMX (Aria X2), DMX512, Bluetooth, RDM, and a UC-IR24 remote. With up to 20 hours of battery runtime and full IP65 protection, this system delivers high-performance lighting in any environment.

Key Features

• Fixtures Included: Four ElectraPix Bar 16 linear lighting fixtures
• Charging & Transport: Flight case with four charging bases; charges via AC or in-case power
• LEDs: 16 × 20 W Hex Color RGBAL+UV (foreground), plus 66 × 0.2 W RGB background LEDs
• Color Temperature: 2,300 K to 9,900 K
• Control Options: DMX512, Aria X2 Wireless DMX, Bluetooth, RDM, onboard manual, UC-IR24 remote
• IP Rating: IP65 housing—weather resistant
• Battery: 14,000 mAh @ 22.2 V, up to 20 h runtime, 500 cycles
• Optics: 17° beam angle; 45 mm lens; diffusion filter slot
• Display: OLED user menu (English/Spanish); adjustable dim/strobe modes
• Flight Case: Holds, charges, and transports all components; rugged design

Technical Specifications

• Flight Case Dimensions: 1443 mm × 498.4 mm × 459.9 mm (56.8" × 19.6" × 18.1")
• Flight Case Weight (Loaded): 87 kg (191.8 lb)
• Fixture Dimensions: 1158.7 mm × 191.2 mm × 85.7 mm (45.6" × 7.5" × 3.4")
• LED Life: Avg. 50,000 h
• Battery Capacity: 14,000 mAh (22.2 V)
• Charge Time (AC or Flight Case): 5.5 h
• Battery Cycles: 500
• Battery Runtime: Up to 20 h
• Optical: 17° beam angle; 45 mm lens diameter
• Power Input: AC 100–240 VAC, 50/60 Hz; max consumption per case: 400 W, ~2 A @ 230 VAC
• Temperature Range: Operating: −20 °C to 45 °C; Storage: −30 °C to 45 °C
• Certifications: CE, FCC, cETLus; IP65 rating

What's Included

• 4x ElectraPix Bar 16 fixtures
• 1x ElectraPix Bar 16 flight case
• 4x Charging bases (with power supplies)
• 4x IP65-rated locking power cables
• 1x UC-IR24 wireless infrared remote
