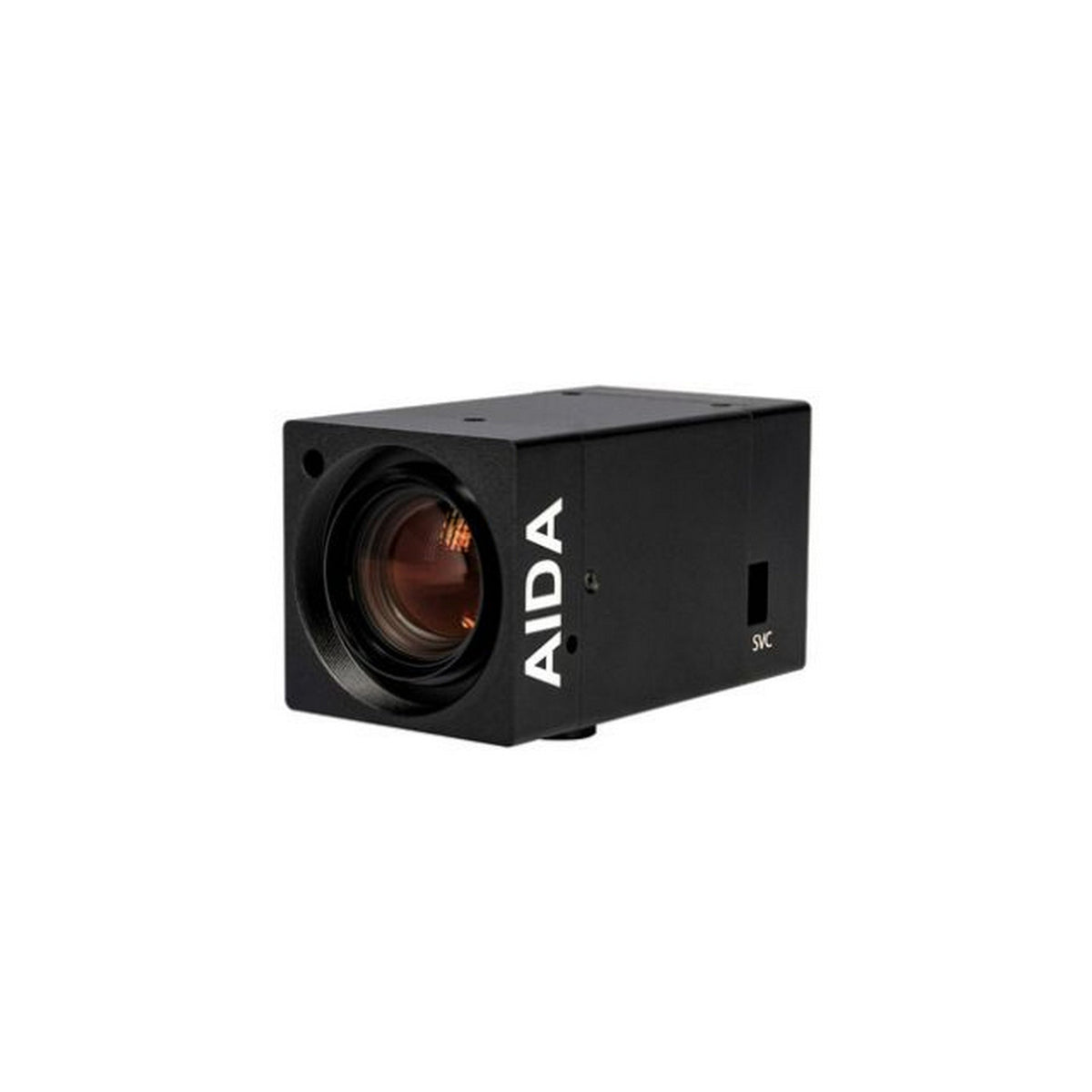

AIDA Imaging HD3G-IPC-MX10 Full HD 10x Macro Zoom POV Camera

AIDA Imaging HD3G-IPC-MX10 Full HD 10x Macro Zoom POV Camera

The HD3G-IPC-MX10 by AIDA Imaging is a robust Full-HD POV camera optimized for close-up visuals with its built-in 10× optical zoom and compatibility with macro lenses. Outputs from both HDMI and 3G-SDI support uncompressed 1080p60 video, while PoE+ simplifies deployment with power and data over a single cable. VISCA over IP allows flexible network-based control, making it ideal for industrial, broadcast, or live-streaming workflows.

This compact, aluminum-bodied camera features a 49 mm front filter thread for adding ND filters or macro lenses, enhancing its adaptability for precise imaging needs.

Key Features

• Optical Zoom: 10× zoom (4.5–47 mm focal length)
• Dual HD Outputs: HDMI and 3G-SDI at up to 1080p60
• Network Control: VISCA over IP, plus RS-485, RJ-45 control interfaces
• PoE+ Support: via included adapter cable
• Filter Thread: 49 mm front thread for ND filters or macro lenses
• Low-Light Capability: Minimum illumination of 0.2 Lux (day) / 0.1 Lux (night)
• Design: Rugged aluminum chassis with 1/4-20" mounting thread

Technical Specifications

• Dimensions: 3.74" × 2.13" × 2.13" (95 × 54 × 54 cm)
• Weight: 1 lb (453 g)
• Sensor: 1/2.8" progressive scan CMOS
• Effective Pixels: 1920 × 1080
• Pixel Size: 2.9 µm × 2.9 µm
• Supported Resolutions: 1080p/i, 720p (various frame rates up to 60p)
• Color Format: 4:2:2 10-bit (YCbCr)
• Lens Module: 10× optical zoom (F1.5–F3.0)
• Field of View: 61°–6°
• Audio Input: 3.5 mm stereo line in; audio embedded over SDI only
• Control Interfaces: VISCA (serial and over IP), RS-485, RJ-45
• Operating Temperature: 32°F–104°F
• Power: 12 VDC (9–15 VDC), or PoE+ via adapter
