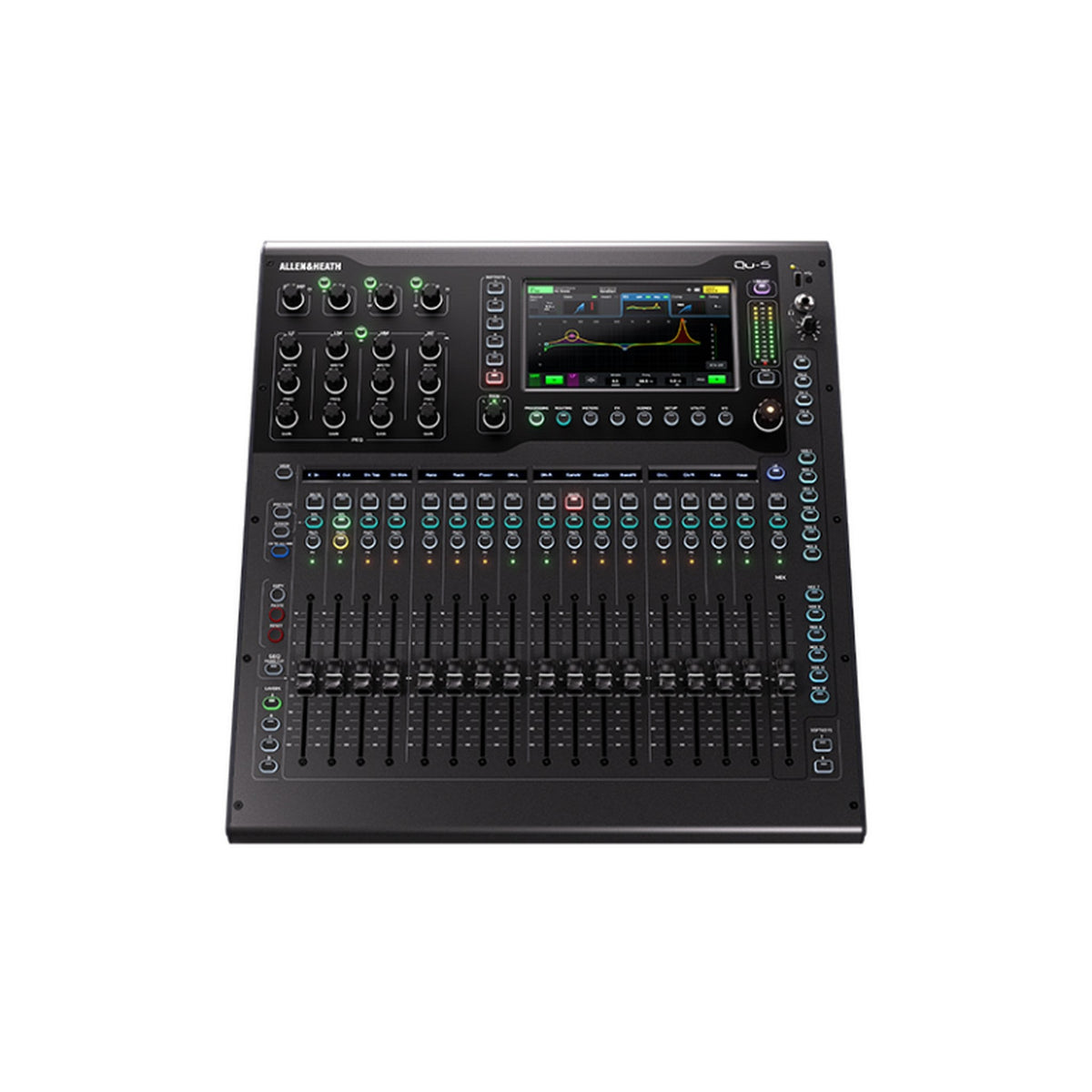

Allen & Heath QU-5 38-Channel Digital Mixer

Allen & Heath QU-5 38-Channel Digital Mixer

The Allen & Heath Qu-5 and Qu-5D are compact digital mixers designed for professional audio engineers, touring musicians, houses of worship, and broadcast applications that demand high-quality sound and versatility in a portable footprint. Powered by the groundbreaking 96kHz XCVI Core, these mixers deliver pristine sound, ultra-low latency, and high-speed processing that ensures every performance and recording is captured with clarity and precision. Whether used for live sound reinforcement, studio recording, or fixed installations, the Qu-5 and Qu-5D provide unparalleled flexibility and professional-grade control.

Equipped with an intuitive 7” capacitive touchscreen, motorised faders, and customizable controls, the Qu-5 series allows engineers to achieve fast and accurate mixing with ease. The deep integration of Allen & Heath’s DEEP processing ensures that users have access to studio-quality processing models without the need for external plug-ins or hardware. The Qu-5D further extends this power by adding a Dante interface, making it the perfect choice for networked audio environments that require high-channel counts and seamless system integration.

Designed for scalability, the Qu-5 series features Allen & Heath’s SLink port, enabling intelligent 128x128 I/O expansion with Everything I/O devices. With flexible recording options, including direct-to-USB, USB-C multichannel audio interface, and SD card recording, the Qu-5 provides a comprehensive workflow for both live and studio applications. Compact, rack-mountable, and packed with advanced functionality, the Allen & Heath Qu-5 and Qu-5D stand out as a powerful, all-in-one solution for professional audio mixing.

Key Features

• Powered by Allen & Heath’s 96kHz XCVI Core for superior sound and processing speed
• 6 built-in Multi-FX engines with dedicated stereo returns
• DEEP processing ready for studio-quality plug-in style processing
• Versatile mix architecture with 38 inputs and 12 configurable mixes
• Flexible I/O including 16 combi mic/line inputs, AES3 digital out, and SLink expansion
• Dante interface (Qu-5D only) with dedicated locking EtherCon port
• Intuitive 7” capacitive touchscreen with 17 motorised faders
• Comprehensive recording options via USB, USB-C, and SD card
• Rack-mountable design with optional kit for compact installations

Technical Specifications

Processing & FX:
96kHz XCVI Core
6 Multi-FX Engines with dedicated Stereo Returns
DEEP Processing Ready

Mix Architecture:
38× Inputs to Mix (32× Mono/Linkable, 3× Stereo)
12 Mixes (6× Mono/Linkable Aux/Group, 6× Stereo Aux/Group)
4× Mono/Linkable Matrix
Stereo Main LR Output

I/O:
16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
2 Stereo Line Input Sockets (each 2× TRS)
12 XLR Output Sockets
1 XLR Talkback Socket
2 TRS Output Sockets
1 AES3 Stereo Digital Output Socket
128×128 Intelligent SLink Port for Everything I/O Expansion and System Connections
16×16 48/96 kHz Dante Interface with Dedicated Locking EtherCon Port (Qu-5D only)
Stereo Headphone Output

Control:
7” Capacitive Touchscreen
17 × 100mm Motorised Faders
4 Channel Strip Layers
Remote Control via Free Apps – Windows/MacOS/iOS/Android
8 SoftKeys
Configurable Single/Dual Footswitch Connection

Recording & Playback:
USB-A for Stereo Audio Record/Playback and Data Transfer
USB-C Audio Interface for Multichannel Record/Playback (32×32)
SD Card Slot for Multichannel Audio Recording or Playback (16×16 @ 96kHz, 32×32 @ 48kHz)

Misc:
19” Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
12V Lamp Socket
Configurable Chromatic Channel Meter LEDs

What’s Included

• Allen & Heath Qu-5 or Qu-5D Digital Mixer
• Power Cable
• User Documentation
• Optional Rack-Mount Kit (sold separately)
