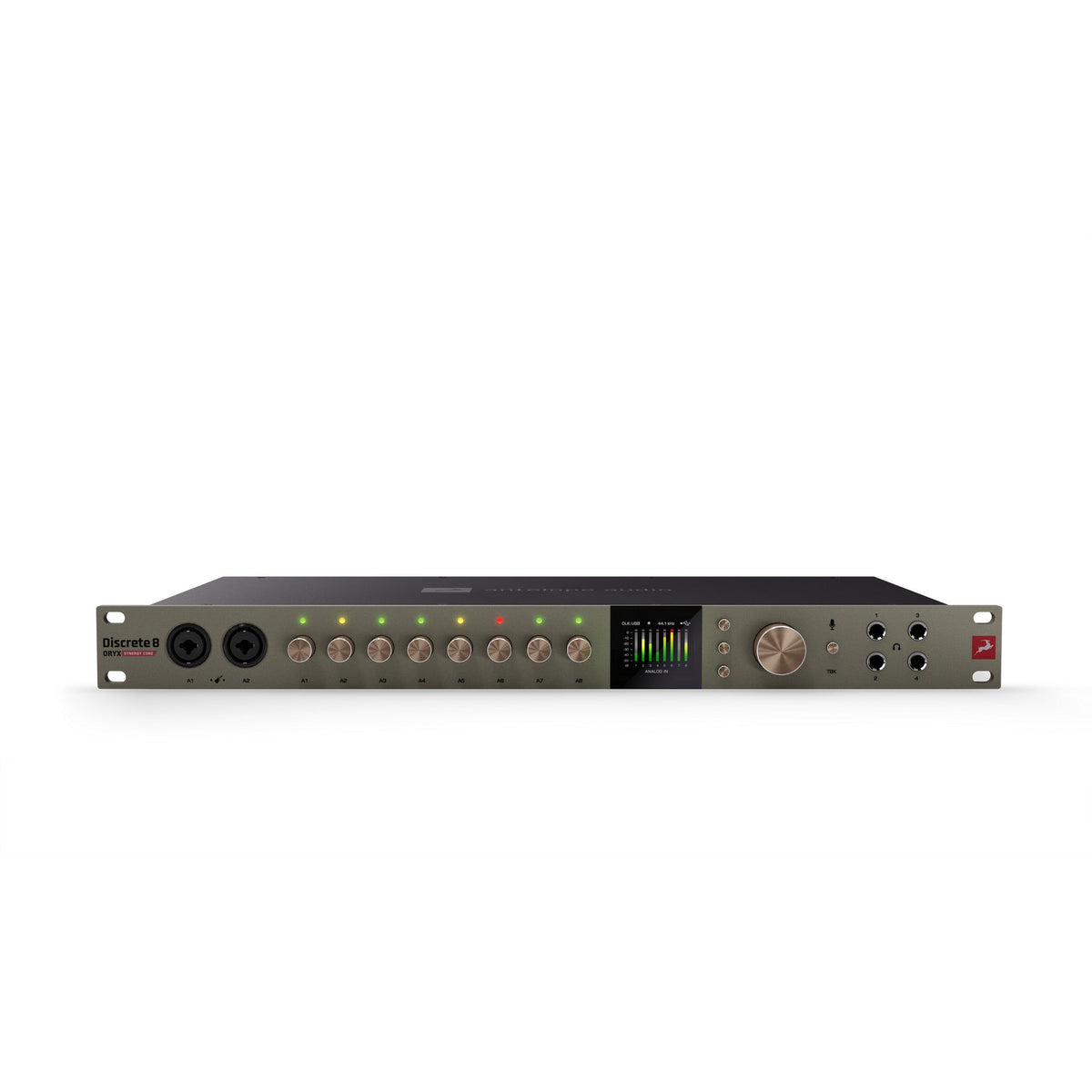

Antelope Audio Discrete 8 Oryx 26×38 USB-C Audio Interface with Synergy Core Real-Time FX Processing

Antelope Audio Discrete 8 Oryx Synergy Core USB-C Audio Interface

The Antelope Audio Discrete 8 Oryx Synergy Core redefines the standard for high-performance audio interfaces. Designed for producers, engineers, and bands, this powerful rackmount unit integrates multi-instrument recording capabilities with hybrid workflow efficiency. Featuring pristine AD/DA conversion, advanced clocking, and console-grade preamps, the Discrete 8 Oryx delivers unparalleled sonic clarity and detail in any recording environment.

Equipped with eight discrete Class-A microphone preamps and six-transistor circuitry, this interface ensures ultra-low noise performance and exceptional gain of up to 75 dB. Its DC-coupled inputs and versatile line, XLR, and Hi-Z connections support both instruments and microphones seamlessly. The interface’s 26×38 simultaneous connectivity allows for complex routing with ease, including monitor outputs, reamp outputs, multiple digital inputs and outputs, and four independent headphone outputs.

The Discrete 8 Oryx also features fourth-generation 64-bit Acoustically Focused Clocking™ and ultra-wide dynamic range converters, delivering precise stereo imaging, depth, and detail beyond conventional converter specifications. Its intuitive virtual patch bay streamlines workflow, offering drag-and-drop routing, low-latency monitoring, and onboard FX processing for a truly hybrid studio experience.

Key Features

• Uncompromising Sound Quality – Equipped with the latest-generation AD/DA converters offering up to 130 dB of dynamic range, combined with Antelope’s proprietary 64-bit Acoustically Focused Clocking™ (AFC™) for pristine stereo imaging and unmatched audio fidelity.
• World-Class Microphone Preamps – Eight discrete 6-transistor preamps inspired by classic recording consoles, providing up to 75 dB of gain for ultra-clean, professional-grade recordings.
• Synergy Core Real-Time FX Processing – Powered by dual DSP and an FPGA chip, running 37 built-in effects including compressors, EQs, guitar amps, and mic preamp emulations with imperceptible latency.
• Advanced Monitoring Control – Four independent stereo headphone outputs with cross-feed and calibration options, delivering precise monitoring and a natural, immersive stereo image for tracking and mixing.
• Flexible Routing & Connectivity – Virtual patch bay enables simultaneous use of all analog and digital I/O, providing over 60 channels of flexible signal routing for complex recording setups.

Technical Specifications

Analog Inputs: 6 x Mic/Line, 2 x Mic/Line/Hi-Z, DC-Coupled

Analog Outputs: 1 x Monitor Out (TRS 1/4") +20 dBu max, 2 x Reamp Out (TRS 1/4"), 1 x Line Out (8 channels, DB25) +20 dBu max, 4 x Stereo Headphone Outputs

Mic Preamp: EIN -128 dBu (A-weighted), Dynamic Range 121 dB, THD -106 dB, Max Input +20 dBu, Max Gain 75 dB

D/A Monitor Converter: Dynamic Range 130 dB, THD+N -115 dB

A/D Converter: Dynamic Range 121 dB, THD+N -112 dB

D/A Converters (Line Out): Dynamic Range 121 dB, THD+N -100 dB, DC-Coupled

Digital Inputs: 2 x ADAT (up to 16CH), 1 x S/PDIF

Digital Outputs: 2 x ADAT (up to 16CH), 1 x S/PDIF

USB 2.0 I/O: USB 2.0 Type-C connector, up to 24-bit, 192 kHz

Word Clock Input: 1 x Input @ 75 Ohms, 3 Vpp, 32–192 kHz (BNC)

Word Clock Outputs: 3 x Outputs @ 75 Ohms, 3 Vpp, 32–192 kHz (BNC)

Clocking System: 4th Generation Acoustically Focused Clocking, 64-bit DDS

Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192

Operating Temperature: 32–122°F

Weight - Unit: 6.83 lbs

Dimensions - Unit: 19" W x 1.7" H x 8.6" D

Weight - Box: 10.8 lbs

Dimensions - Box: 25.4" W x 3.9" H x 13.4" D

Power Consumption: 25 Watts

What's Included

• Discrete 8 Oryx Synergy Core USB-C Audio Interface
• Getting Started Guide
• USB 2.0 Type-C Cable
• USB Type-C to Type-A Adapter
• External Power Supply Unit
