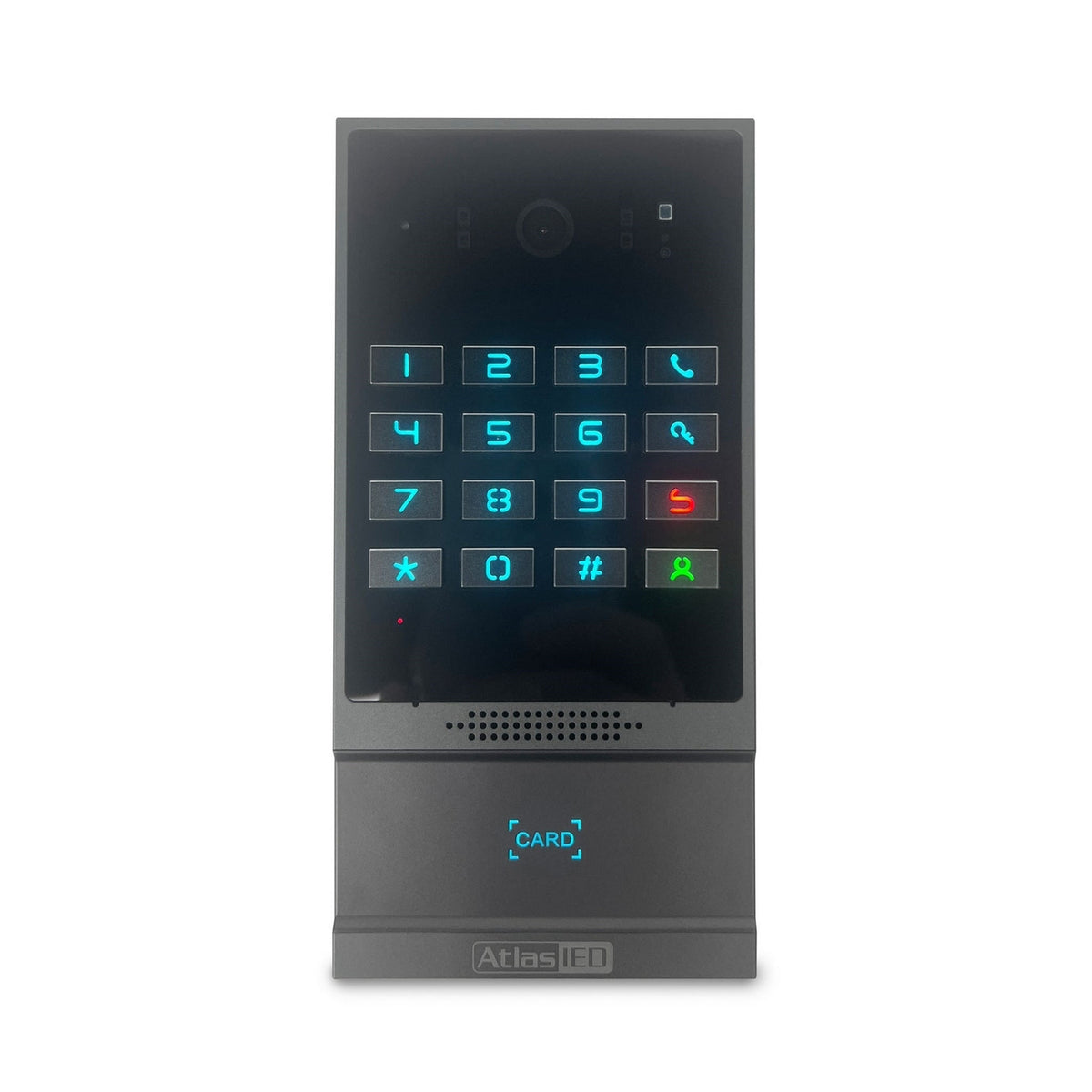

AtlasIED IP‑DB PoE IP Video Doorbell with Camera, RFID, and Keypad
AtlasIED IP‑DB PoE IP Video Doorbell with Camera, RFID, and Keypad The AtlasIED IP‑DB is a rugged, VoIP-enabled doorbell built for harsh commercial environments. Featuring a 2MP camera with IR LEDs for night vision, backlit keypad, and support for 10,000 RFID cards,...
PRODUCT DETAILS
Everything you need to know.
AtlasIED IP‑DB PoE IP Video Doorbell with Camera, RFID, and Keypad
The AtlasIED IP‑DB is a rugged, VoIP-enabled doorbell built for harsh commercial environments. Featuring a 2MP camera with IR LEDs for night vision, backlit keypad, and support for 10,000 RFID cards, it offers secure, convenient access control and two-way communication while seamlessly integrating with your IPX system.
Ideal for offices, healthcare facilities, schools, and industrial sites, the IP‑DB provides full-duplex audio with AEC, SIP registration, and support for InformaCast. With PoE power and a durable IP66-rated metal housing, it's engineered for outdoor reliability and consistent performance.
Key Features
- 2MP Camera with IR LEDs: 1080p video at 30fps, wide 120°H ×60°V FOV
- Access Control: Backlit keypad and RFID reader (supports 10,000 cards)
- Industrial‑Grade Design: IP66 and IK07-rated metal housing with tamper detection
- VoIP Integration: SIP compliant, supports G.711/G.722/Opus, HTTPS registration
- GPI/O & Relays: 3 inputs, 2 relay outputs (30VDC/125VAC) for lock control or sensors
Technical Specifications
- Model: IP‑DB
- Dimensions: 7×3.46×1.42in (177×88×36mm)
- Weight: 1.28lb (0.58kg); Shipping: 1.7lb (0.77kg)
- Connectivity: RJ‑45 Ethernet (10/100/1000Base‑T, PoE IEEE802.3af) + Wi‑Fi
- Video: H.264, 1080p@30fps; night vision
- Audio: Full-duplex with Acoustic Echo Canceller; 80Hz–7kHz
What's in the Box
- IP‑DB Unit
- Mounting Template & Hardware
- Two RFID Cards
