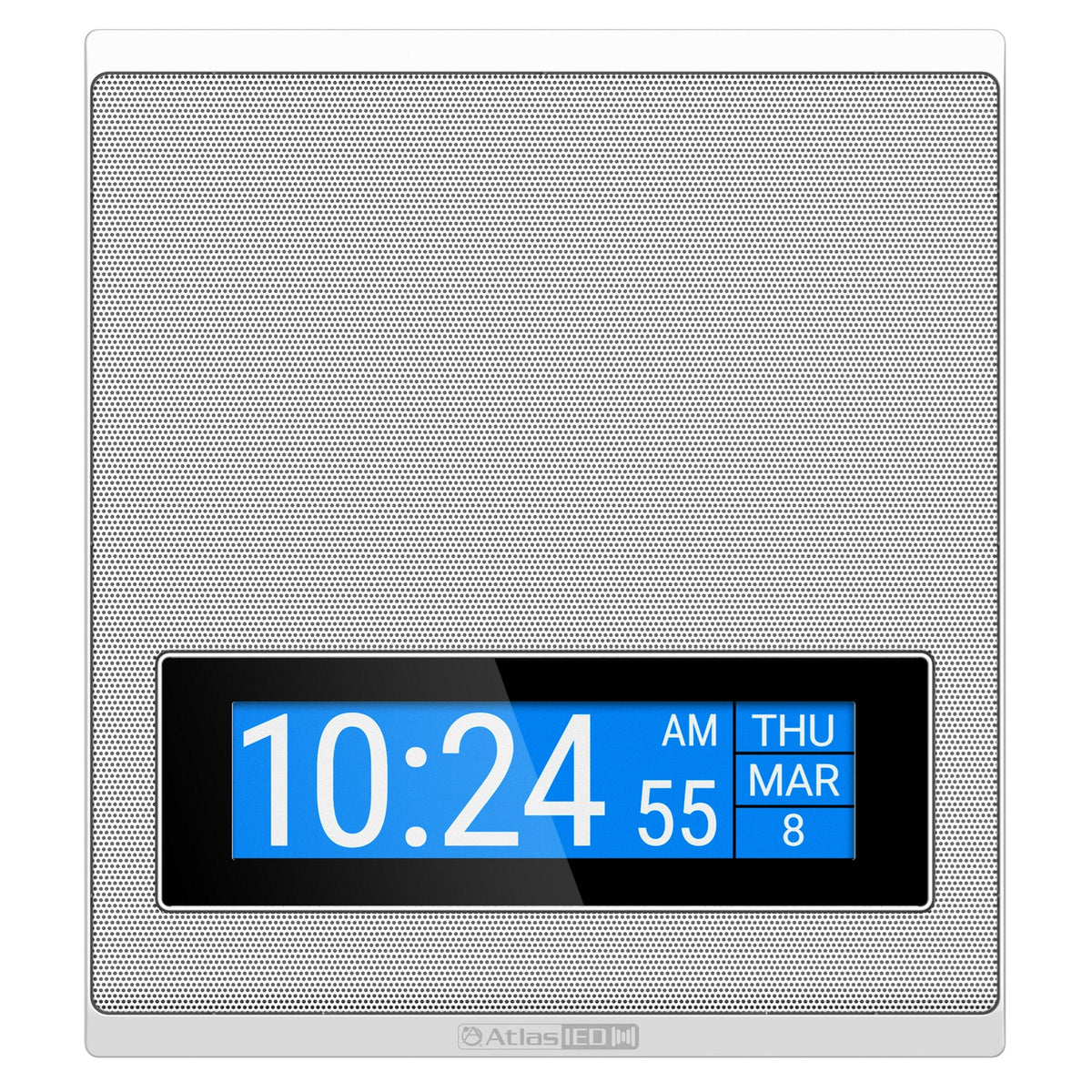

AtlasIED IP‑SDM PoE+ Wall‑Mount IP Speaker with LCD Display and Microphone
AtlasIED IP‑SDM PoE+ Wall‑Mount IP Speaker with LCD Display and Microphone The AtlasIED IP‑SDM combines high‑intelligibility audio with a full‑width LCD display and talkback microphone. Wall‑mountable and PoE+ powered, it integrates with VoIP networks and platforms like InformaCast, Syn‑Apps Revolution, GCK, or...
PRODUCT DETAILS
Everything you need to know.
AtlasIED IP‑SDM PoE+ Wall‑Mount IP Speaker with LCD Display and Microphone
The AtlasIED IP‑SDM combines high‑intelligibility audio with a full‑width LCD display and talkback microphone. Wall‑mountable and PoE+ powered, it integrates with VoIP networks and platforms like InformaCast, Syn‑Apps Revolution, GCK, or directly as a SIP endpoint for emergency paging, two‑way communication, and synchronized alerts.
Designed for ADA‑compliant effective communication, it displays synchronized time via NTP when idle and scrolls alerts or messages during active use. Perfect for corporate, educational, healthcare, and transportation environments.
Key Features
- 8″ Coaxial Speaker + Mic: Delivers clear speech and full‑duplex talkback functionality
- Full‑Width LCD Display: Shows time/date in standby and scrolling text/alerts when active
- PoE+ Powered: Operates via IEEE 802.3af/at; optional 24 VDC backup
- VoIP & SIP Integration: Works with InformaCast, Revolution, GCK, Cisco SRST, or SIP servers
- GPI/O Triggers: Includes 2 inputs and a 2 A relay output for automation
Technical Specifications
- Model: IP‑SDM
- Dimensions: 14.38 × 12.88 × 3.42 in (365 × 327 × 87 mm)
- Weight: 6.37 lb (2.89 kg)
- Connectivity: RJ‑45 Ethernet (10/100 Base‑T, VLAN), balanced audio I/O
What's in the Box
- AtlasIED IP‑SDM speaker unit
- Wall‑mount back box (sold separately)
- Mounting hardware
