AtlasIED IP116-CS Announcement Control System with 16 CobraNet Simultaneous Audio Streams

AtlasIED IP116-CS Announcement Control System with 16 CobraNet Simultaneous Audio Streams

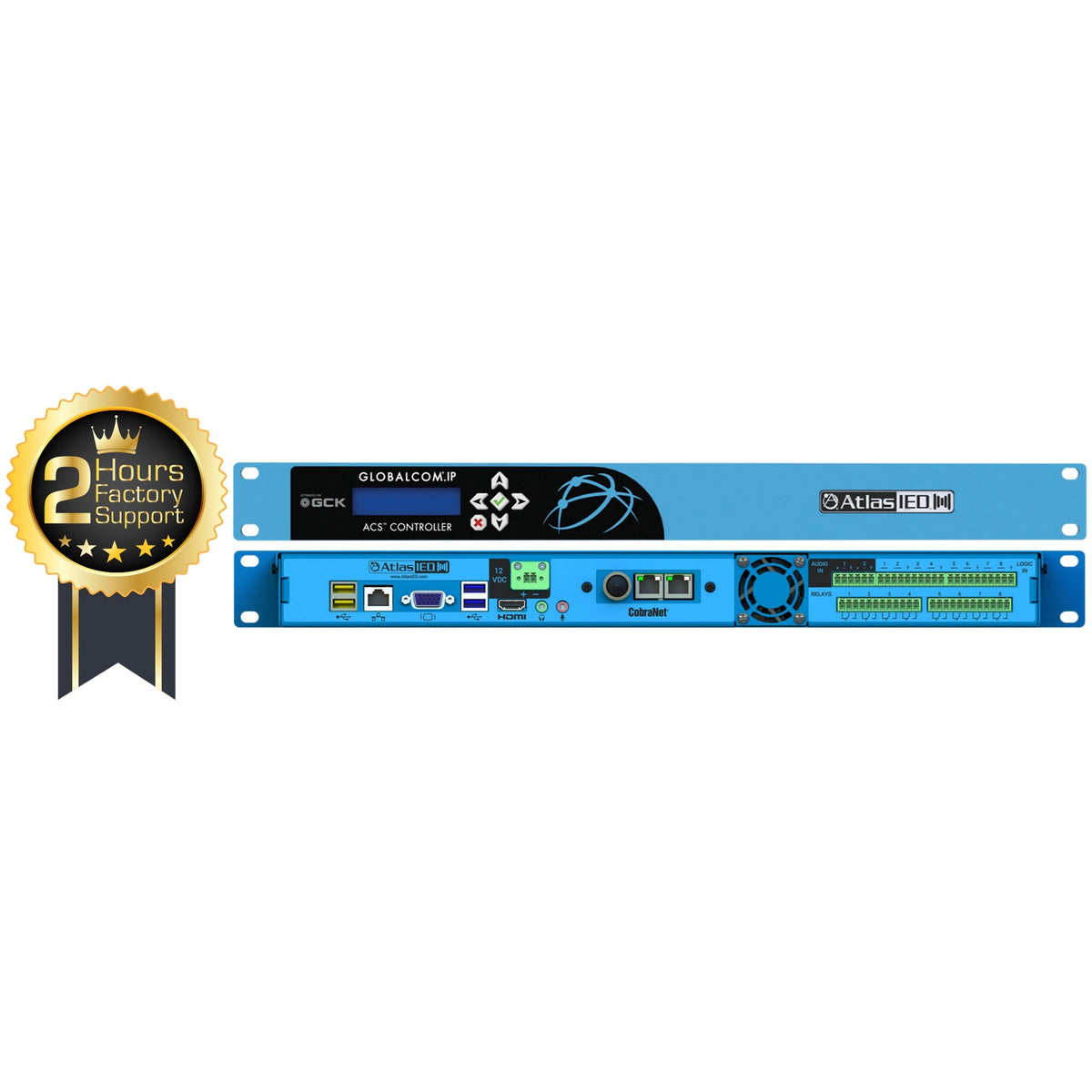

The AtlasIED IP116‑CS is the flagship 1RU controller of the GLOBALCOM® mass communication platform, engineered for enterprise-class paging and messaging. With 16 CobraNet® audio‑over‑Ethernet channels and VoIP integrations, it handles live, delayed, prerecorded, and text‑to‑speech announcements across large networks.

Featuring eight logic inputs, eight relay outputs, and two balanced audio inputs, the unit seamlessly interfaces with paging stations, alarms, analog systems, and VoIP/SIP telephony. Configured via the intuitive GCK software, it offers scheduling, priority handling with NeverMISS™, intercom functionality, and emergency alerting (S.A.F.E™).

Key Features

• 16 CobraNet® Channels: High‑quality multi-zone audio delivery
• VoIP & Network Integration: Supports SIP, PBX trunking, WAN‑enabled paging
• Logic I/O & BGM Inputs: 8 logic + 8 relay + 2 balanced audio inputs
• Advanced Messaging: Live, scheduled, pre‑recorded, TTS, zone mutes, and intercom
• Emergency and Priority Control: NeverMISS™ with 65,565 priority levels, S.A.F.E™ alerts

Technical Specifications

• Model: IP116‑CS
• Dimensions: 17.25 × 7.75 × 1.75 inches (438 × 197 × 44 mm)
• Weight: 6.5 lbs (3 kg)
• Processor: 64‑bit Intel® Quad Core, 24‑bit audio, 48 kHz
• Power: 12 VDC, 36 W (123 BTU/hr)
• Connectivity: RJ‑45 (100/1000 Mbps), CobraNet®, SIP, FXO, logic I/O
• Display: 2‑line LCD
• Certifications: ETL to UL 60950‑1, UL 62368‑1, CSA
• Warranty: 36 months

What's in the Box

• IP116‑CS Controller
• Pre‑installed GCK Configuration Software
• Power Supply

Includes two hours of factory technical support.
