AtlasIED IPCSD1 Digital Push-to-Talk Microphone Station, Dante Enabled
AtlasIED IPCSD1 Digital Push-to-Talk Microphone Station, Dante Enabled The IPCSD1 is a professional-grade, Dante-enabled PoE-powered digital microphone station designed for use with the GLOBALCOM IP announcement system. With instant full-bandwidth audio digitization and push-to-talk operation, it delivers crystal-clear paging for both emergency...
PRODUCT DETAILS
Everything you need to know.
AtlasIED IPCSD1 Digital Push-to-Talk Microphone Station, Dante Enabled

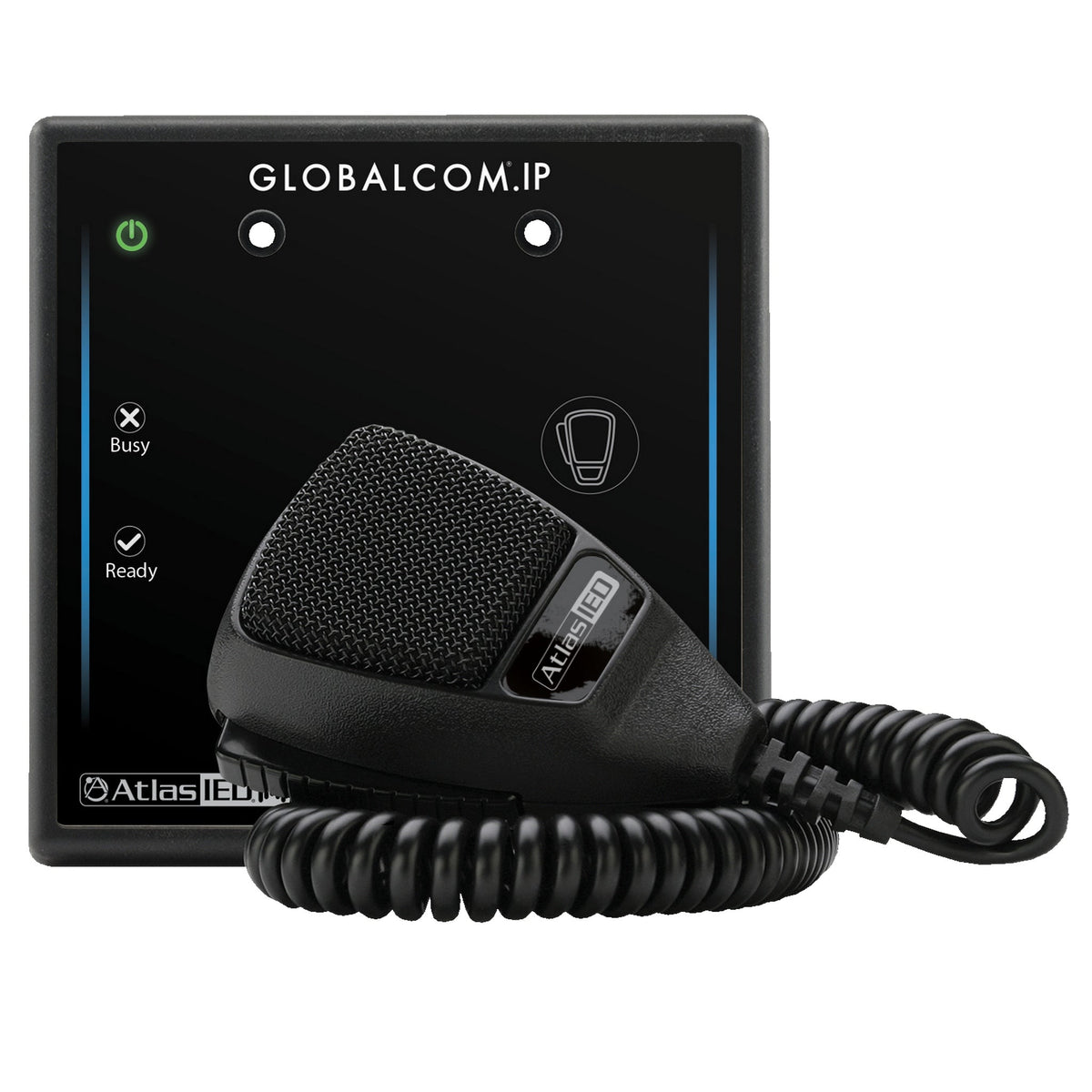

The IPCSD1 is a professional-grade, Dante-enabled PoE-powered digital microphone station designed for use with the GLOBALCOM IP announcement system. With instant full-bandwidth audio digitization and push-to-talk operation, it delivers crystal-clear paging for both emergency evacuations and everyday communications.
Featuring a compact form that mounts in standard 1- or 2-gang electrical boxes, this station can also sit on a desk with the optional weighted base. Its LEDs for power, busy, and ready status make operation intuitive and efficient in live scenarios.
Key Features
- Push-to-Talk Handheld Mic: Provides controlled paging with busy indication
- Dante Audio over Ethernet: High-quality, low-latency transport via PoE
- PoE Powered: Compatible with IEEE 802.3af switches—no separate power needed
- LED Status Indicators: Power, busy, and ready LEDs for clear operational feedback
- Flexible Mounting: Installs in standard gang boxes or desktop base (optional)
Technical Specifications
- Model: IPCSD1
- Dimensions: 4.95 × 4.95 × 1.90 inches (126 × 126 × 48 mm)
- Weight: Approx. 1 lb (0.45 kg); Shipping box ~1.5 lb (0.68 kg)
- Connectivity: RJ‑45 Ethernet (100 Mbps, Dante), PoE
- Audio Specs: 22 Hz–22 kHz, THD < 1%, SNR > 85 dB, 48 kHz/24-bit ADC
What's in the Box
- IPCSD1 Microphone Station
- Mounting hardware & gang box adapter
