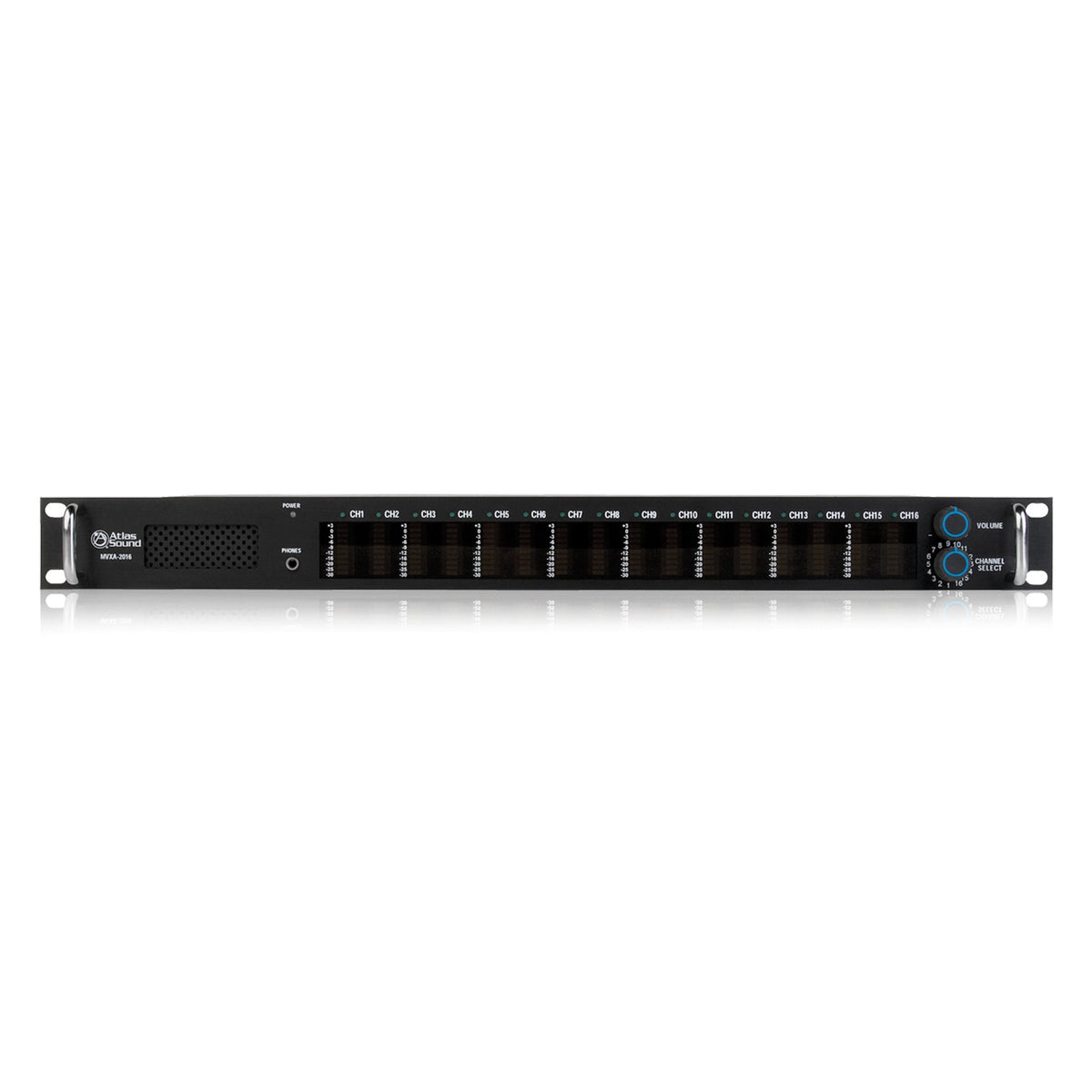

AtlasIED MVXA‑2016 16‑Channel Active Audio Monitor Panel, 1RU
The AtlasIED MVXA‑2016 is a high-performance 1 RU monitor panel offering both audio and visual monitoring for up to 16 speaker-line or line-level circuits. Featuring DC-coupled inputs, it supports 25 V, 70.7 V, 100 V, or standard line-level sources without distortion or ground-loop issues.
Each channel provides a 12-segment LED bargraph with VU-style ballistics and peak indication, along with independent input-level jumpers. A built-in 3 W speaker, headphone output, line-level output, and external speaker output allow flexible audible monitoring. The slim chassis fits standard 19″ racks, backed by AtlasIED reliability.
Key Features
- Channel Count: 16 simultaneous circuits
- Metering: 12-segment bargraph per channel (-30 dBV to +3 dB)
- Input Types: 25 V, 70.7 V, 100 V, or line level
- Aural Monitoring: Internal 3 W speaker, headphone jack, external speaker/line outputs
- Audio Integrity: DC-coupled design to avoid distortion and ground loops
- Construction: Rugged steel chassis with rack ears and wiring access
Technical Specifications
- Size: 1 RU × 19″ W × 13.2″ D (4.445 cm × 48.26 cm × 33.53 cm)
- Weight: 9.5 lbs (4.31 kg)
- Speaker Output: 3 W internal (5 W peak), headphone, and external output
- Power Supply: Included 15 VAC global input
- Frequency Response: 35 Hz – 20 kHz
- Warranty: 12 months, metal chassis 5 years
What’s Included
- MVXA‑2016 rack mount panel
- External 15 VAC power supply
- Rack ears and mounting hardware
