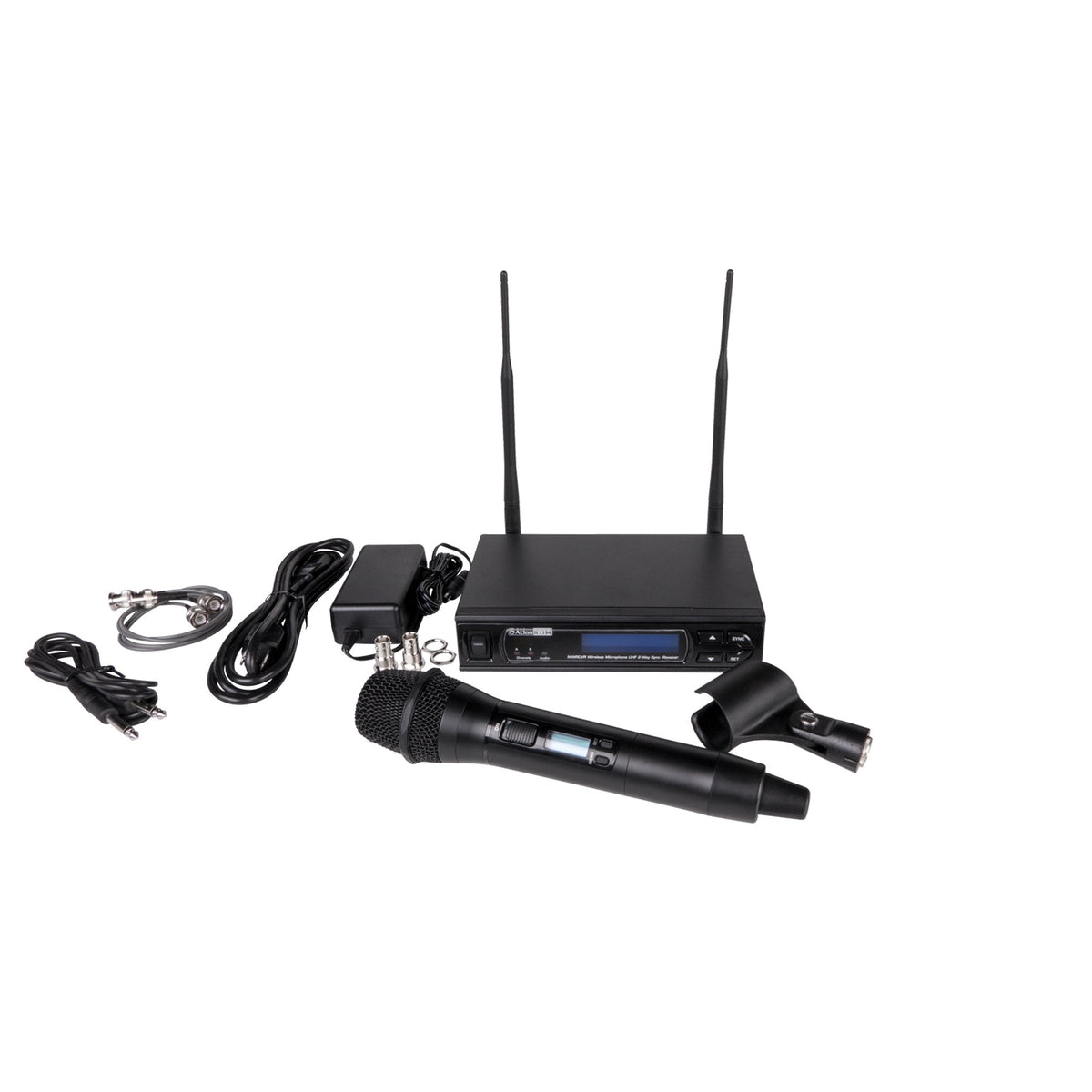

AtlasIED MW100-HH Wireless Microphone Kit with Handheld Microphone

AtlasIED MW100-HH Wireless Microphone Kit with Handheld Microphone

The AtlasIED MW100-HH is a full UHF wireless mic system ideal for classrooms, conference rooms, lecture halls, and live presentations. It includes a true‑diversity receiver (MWRCVR) and a handheld transmitter/microphone (MWHHM), along with essential accessories for immediate use.

With 100 selectable frequencies across a 25 MHz UHF band and patented two‑way communication, this system ensures stable, interference‑free audio within a 100 m (328 ft) range. The receiver offers mic/line selectability with balanced XLR and unbalanced ¼″ outputs. The handheld transmitter features an LCD for channel/frequency/battery type info and runs up to 16 hours on AA batteries.

Key Features

• Wireless Band: UHF 566–585.8 MHz
• Bandwidth: 25 MHz with 100 switchable frequencies
• True Diversity Receiver: dual removable antennas, LCD display
• Output Options: Balanced XLR and ¼″ TS (mic/line selectable)
• Patented 2‑Way Sync: IR sync between transmitter & receiver
• Operating Range: up to 100 m (328 ft) line‑of‑sight
• Handheld Transmitter: cardioid mic, metal housing, internal ¼″ antenna, LCD
• Battery Life: up to 16 hours on 2× AA (alkaline/NiMH)
• Audio Performance: SNR >110 dB, THD <0.5 %

Technical Specifications

• Receiver Sensitivity: –95 dBm
• SNR: >110 dB
• THD: <0.5 %
• Transmitter RF Power: <10 mW
• Frequency Response: 48 Hz–19 kHz
• Power Supply: 100–240 VAC → 12 V DC/1.6 A
• Receiver Weight: 1.39 lb (0.63 kg)
• Receiver Dimensions: 7.87″ × 5.91″ × 1.73″
• Transmitter Weight: 0.66 lb (0.30 kg)
• Transmitter Dimensions: 2.09″ × 10.08″
• Country of Origin: Taiwan
• TAA Compliant: Yes
• Warranty: 12 months

What's Included

• MWRCVR wireless receiver unit
• MWHHM handheld transmitter/microphone
• 2 × detachable antennas
• AC power adapter
• Cables (XLR/¼″ likely included)
• Mic‑stand adapter
