AtlasIED Touch Screen Communication Station

AtlasIED IED550CS GLOBALCOM Touch Screen Communication Station

The AtlasIED IED550CS series digital communication stations provide a fully programmable touch screen interface for initiating announcements and messages within GLOBALCOM® Announcement Control Systems. Designed for reliability and flexibility, each unit operates as a network appliance with automatic or static IP assignment and is powered via PoE.

Both models feature auxiliary line-level input and output, redundant Ethernet ports, and microphone supervision. The IED550CS-G includes a gooseneck microphone, while the IED550CS-H features a handheld mic, allowing integrators to select the best option for their paging environment.

Available Variants

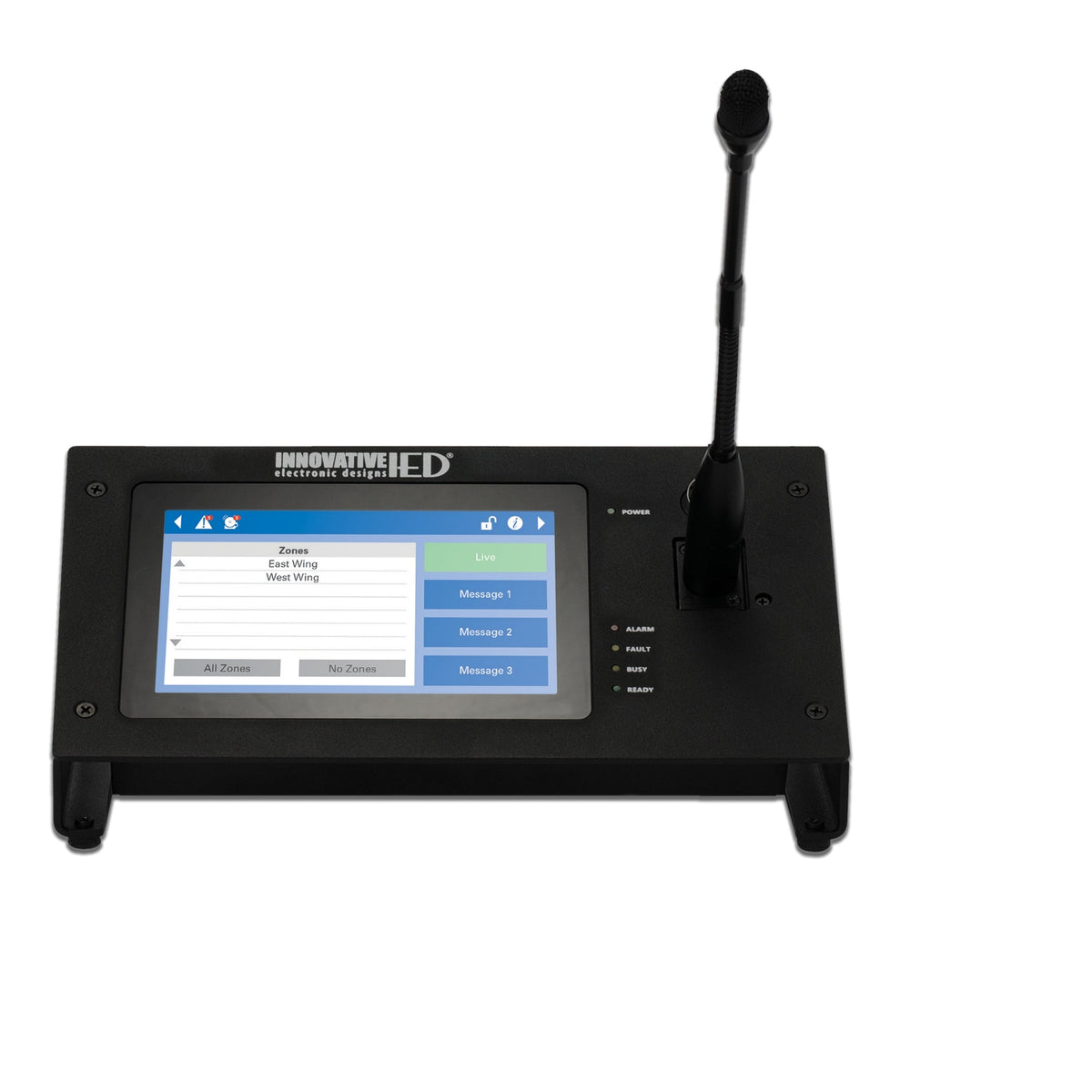

• IED550CS-G: Gooseneck microphone with 12" metal windscreen and 5-pin XLR connection
• IED550CS-H: Handheld microphone with Cyclolac™ housing and coiled RJ25 cable

Key Features

• Touch screen control: Fully programmable user interface
• CobraNet® enabled: Networked audio transmission
• Mic options: Gooseneck or handheld with integrated preamp and line driver
• Network appliance: Auto or static IP assignment
• Audio I/O: Line-level input for BGM, output for zone signal
• Status indicators: Alarm (red), Fault (yellow), Busy (yellow), Ready (green)
• Power: PoE compliant

Technical Specifications

• Models: IED550CS-G / IED550CS-H
• Microphone Type: Electret condenser, omnidirectional
• Connectivity: Dual Ethernet (redundant), RJ25 (handheld), XLR (gooseneck)
• Power: Power over Ethernet (PoE)
• Warranty: 36 months from date of purchase
