Atlona AT-GAIN-60 60W Audio Power Amplifier
In stock SKU: AT-ATGAIN60

EchoForge

Atlona AT-GAIN-60 60W Audio Power Amplifier

$435.00

Atlona AT-GAIN-60 60W Audio Power Amplifier The Atlona Gain™ 60 (AT-GAIN-60) is a compact and efficient Class-D power amplifier designed for both low-impedance and high-impedance speaker installations. It offers flexible mode selection for either two channels of 30 W each at 4...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Atlona AT-GAIN-60 60W Audio Power Amplifier

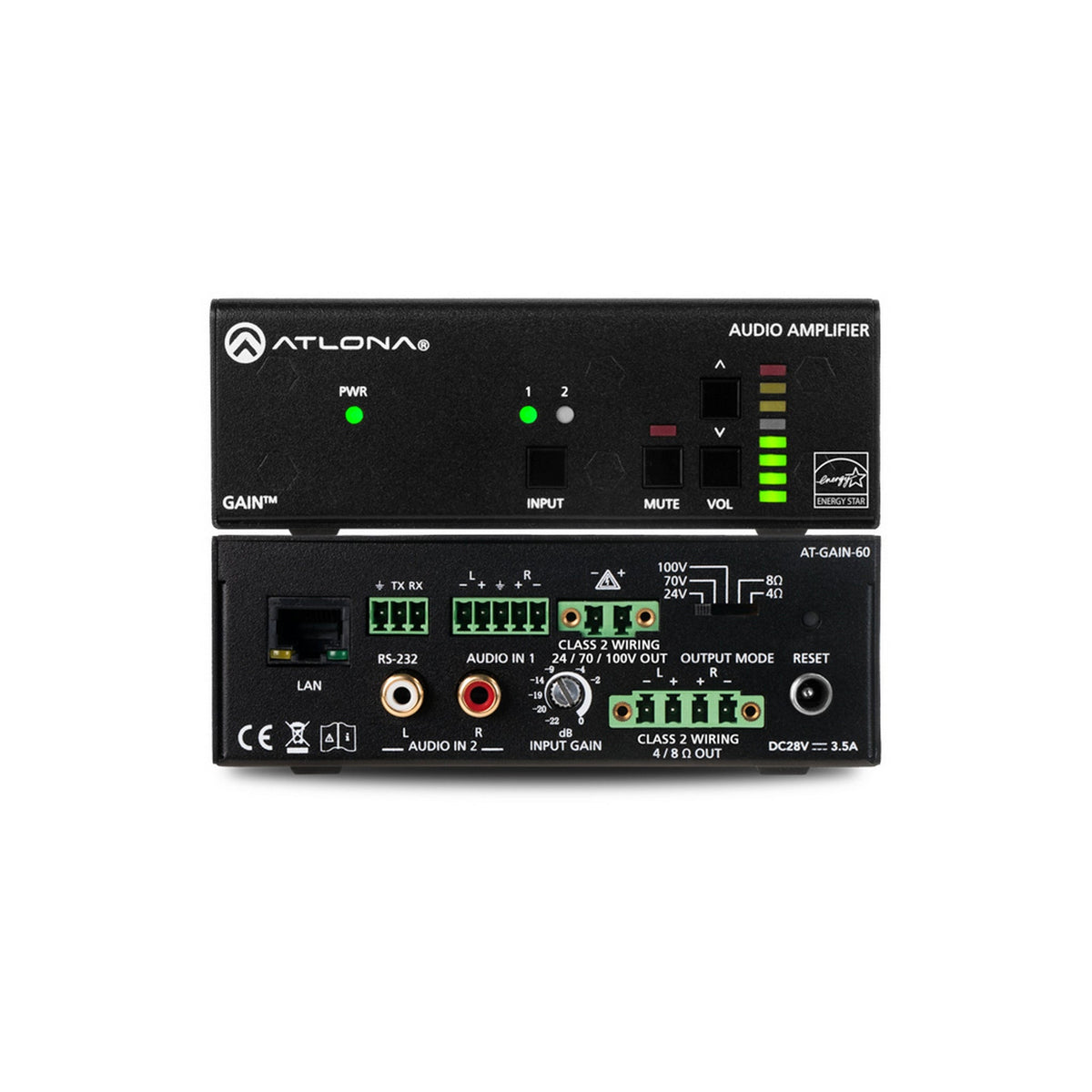

The Atlona Gain™ 60 (AT-GAIN-60) is a compact and efficient Class-D power amplifier designed for both low-impedance and high-impedance speaker installations. It offers flexible mode selection for either two channels of 30 W each at 4 Ω/8 Ω or one channel of 60 W at 24 V, 70 V, or 100 V. Ideal for meeting rooms, classrooms or plenum installations above drop ceilings, this amplifier delivers reliable sound and integration ease.

Featuring ENERGY STAR® qualification, convection cooling (no fan), plenum-rated UL 2043 construction, selectable balanced/unbalanced inputs, and network control via RS-232 or IP, the Gain 60 is built for modern AV systems. Its front-panel controls, automatic standby mode, tone controls and protection circuitry make it versatile for installations requiring compact, smart amplification.

Key Features

  • Selectable Output Modes: 2 × 30W at 4Ω or 8Ω; 1 × 60W at 24V/70V/100V.
  • Balanced & Unbalanced Inputs: Versatile audio source connectivity.
  • Class-D Design: Energy-efficient, convection-cooled, fan-less.
  • Plenum-Rated: UL 2043 qualifies above-ceiling installation.
  • Network Control: RS-232 and TCP/IP for volume, mute, and tone control.
  • Auto Standby: Adjustable 5-25 minutes no-signal shutdown to save power.
  • Installation Ready: Compact chassis, optional rack shelf, captive screw connectors.

Technical Specifications

  • Input Impedance: Balanced 20 kΩ; Unbalanced 10 kΩ.
  • Gain Adjustment: -22 dB to 0 dB.
  • Output Loads: Stereo: 4 Ω/8 Ω @ 30 W per channel. Mono: 24 V/70 V/100 V @ 60 W.
  • Audio Processing: 24-bit, 44.1-96 kHz sampling; 2-band EQ Bass/Treble ±10 dB.
  • Frequency Response: 20 Hz-20 kHz ±0.2/-2 dB at 4Ω.
  • THD + N: <0.1% @1 kHz, 3 dB below clipping.
  • SNR: >95 dBA WTD.
  • Power Consumption: Max 60W; Standby <1.2W.
  • Dimensions: 5.00 in × 7.95 in × 1.69 in (12.7 cm × 20.2 cm × 4.3 cm).
  • Weight: 3.15 lb (1.43 kg).
  • Operating Temp: 32-122 °F (0-50 °C). Storage: -40-158 °F (-40-70 °C).
  • Certifications: CE, FCC, CB, RoHS, WEEE, ENERGY STAR®.

What’s in the Box

  • AT-GAIN-60 Amplifier Unit.
  • Universal External Power Supply.
  • Documentation and Quick Start Guide.
  • Captive Screw Connectors for Input and Output.
