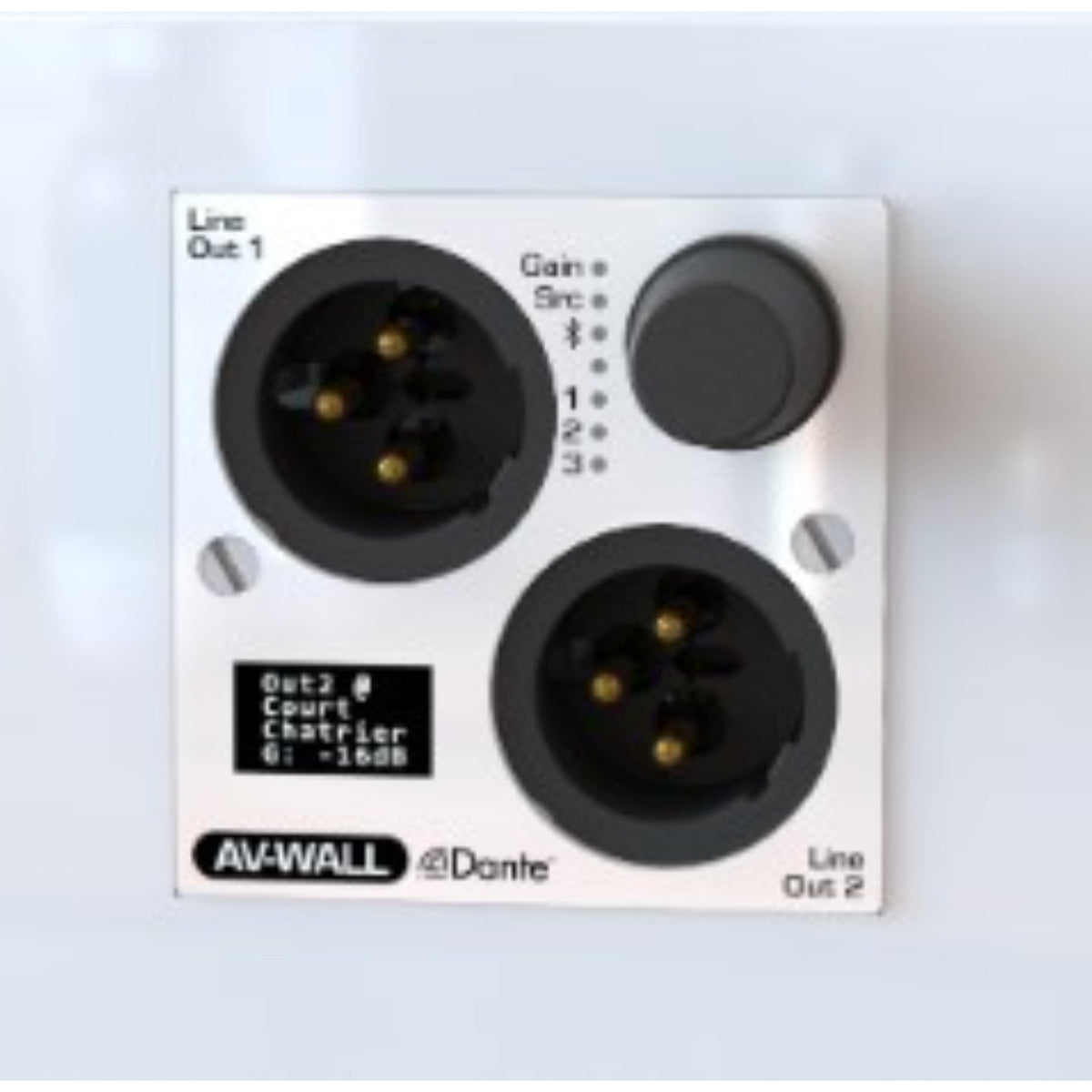

AuviTran AV-WALL-DT4o-B Dante Wall Plate Audio Interface with XLR Line Outputs and Bluetooth

AuviTran AV-WALL-DT4o-B Dante Wall Plate Audio Interface with Bluetooth Output

The AuviTran AV-WALL-DT4o-B is a compact Dante-enabled wall mounted audio interface designed to provide seamless integration between networked audio systems and analog outputs. Designed for professional AV installations, this ultra-compact interface converts Dante network audio to analog outputs while offering built-in Bluetooth connectivity for wireless audio streaming.

Engineered for flexibility and simple installation, the DT4o-B fits into a standard single-gang wall box and is powered via Power over Ethernet (PoE), allowing audio, power, and control to be delivered through a single network cable. A rotary push button and integrated OLED display allow quick pairing and device selection for Bluetooth sources, while Dante sources can be selected directly without external patching software.

Key Features

• Dante network to analog audio interface for wall mounting
• 2 balanced XLR analog line outputs
• Integrated stereo Bluetooth output
• OLED display with rotary push button for local control
• PoE powered via RJ45 (802.3af compliant)
• Compact design fits a standard single-gang wall box
• Remote monitoring and configuration through AVS Monitor and Dante Controller
• Compatible with Apple and Android Bluetooth devices

Technical Specifications

• Outputs: 2 x XLR line outputs + stereo Bluetooth output
• Output Level (XLR): +24 dBu
• Dynamic Range: >106 dB (A-weighted)
• Frequency Response: 20 Hz – 20 kHz
• Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz
• Bit Depth: 24 or 32 bit
• Power: PoE (IEEE 802.3af)
• Maximum Power Consumption: 5.5 W
• Dimensions (in-wall): 49 x 47 x 46 mm
