BirdDog 3x X1 30x PTZ Cameras and KBD Keyboard Bundle (Black)
In stock SKU: BIR-BDX130BUNDLEB

EchoForge

BirdDog 3x X1 30x PTZ Cameras and KBD Keyboard Bundle (Black)

$2,913.75

BirdDog 3x X1 30x PTZ Cameras and KBD Keyboard Bundle (Black)BirdDog's X1 30x Bundle in black combines three X1 30x PTZ cameras, the KBD Controller, and a custom protective foam case for transport. The X1 30x is a Full HD PTZ built...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

BirdDog 3x X1 30x PTZ Cameras and KBD Keyboard Bundle (Black)

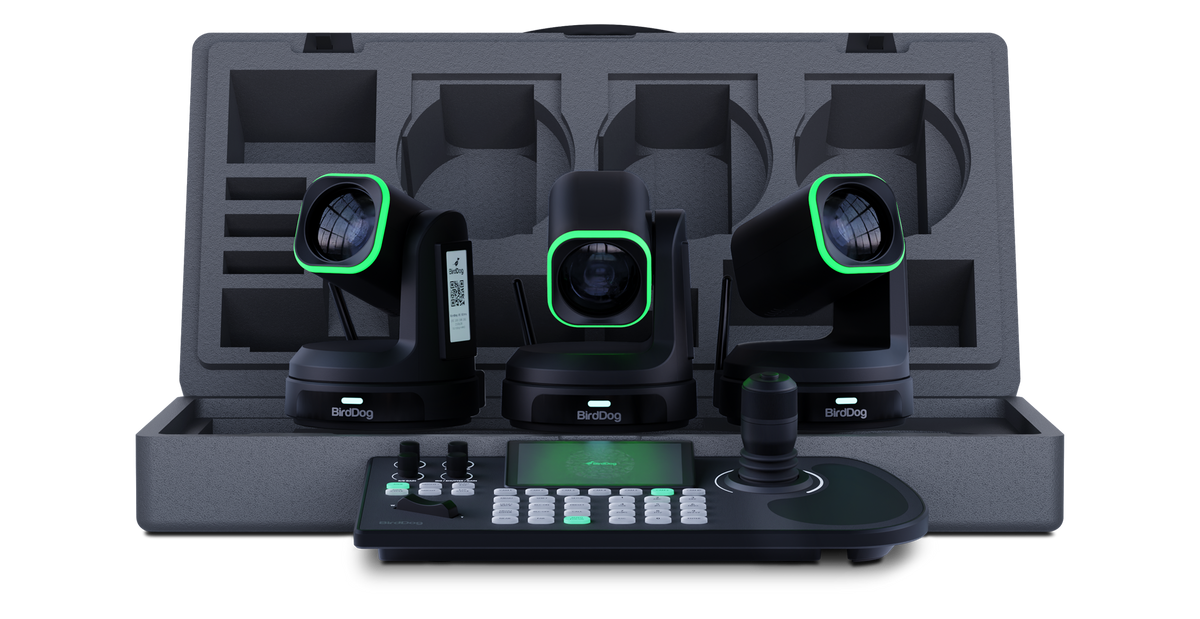

BirdDog's X1 30x Bundle in black combines three X1 30x PTZ cameras, the KBD Controller, and a custom protective foam case for transport. The X1 30x is a Full HD PTZ built for precision and versatility, serving creators and production teams working across NDI, baseband video, or wireless workflows, with 30x optical zoom providing long reach and a wide angle of view for flexible framing.

A Sony 1/2.8 inch CMOS sensor outputs 1080p at up to 60 fps, including a 608x1080 vertical 9:16 mode. Streaming runs over NDI HX2, NDI HX3, SRT, RTSP, and RTMP, with built-in Wi-Fi, PoE, HDMI, and USB-C UVC connections plus NDI HX decoding. AI tracking, Halo Tally, and an E-Ink display round out the cameras, while the KBD Controller shows up to four feeds with tally on its integrated screen.

Key Features

  • Three X1 30x Full HD PTZ cameras in black with KBD Controller and foam transport case
  • 30x optical zoom with wide angle of view; Sony 1/2.8 inch CMOS sensor
  • 1080p60 video plus 608x1080 vertical 9:16 output
  • NDI HX2/HX3, SRT, RTSP, and RTMP streaming with built-in NDI HX decoding
  • Built-in Wi-Fi (802.11ac), PoE 802.3af, HDMI, and USB-C UVC connections
  • AI tracking, Halo Tally, and industry-first E-Ink display
  • Limited 5-year manufacturer warranty

Specifications

  • Image Sensor:Sony 1/2.8” CMOS - FULL HD
  • Lens: f=5.2~148.4
  • Optical Zoom:30x
  • Video Format: 1080p @ 60/59.94/50/30/29.97/25fps, 720p @ 60/50/30/25fps 608x1080p (9:16 ratio) @ 60/59.94/50/30/29.97/25fps
  • Horizontal angle of view:58.1° (W) – 2.14° (T)
  • Vertical angle of view:33.8° (W) – 1.2° (T)
  • Diagonal angle of view:65.4° (W) - 2.48° (T)
  • Aperture: F1.3~F4.8
  • Focus: AI Face, Auto, Manual
  • Exposure:Auto, Shutter Priority, Iris Priority, Manual
  • Backlight Compensation: Yes
  • Digital Noise Reduction: 2D and 3D Noise Reduction
  • SNR: >50dB
  • Effective Pixels: 2.07 MP
  • Pan/Tilt Rotation:±175°, -90° ~ +90°
  • Pan Control Speed: 0.1 -80°/sec
  • Tilt Control Speed:0.1 -60°/sec
  • Preset Number: 255 presets
  • Filter Ring: Φ52mm
  • Video Output Interfaces: HDMI, USB-C UVC 1.1, Network
  • Video Compression Formats: H.264, H.265
  • Network Interfaces:100M adaptive Ethernet port; POE IEEE 802.3af, Wi-Fi IEEE 802.11ac
  • Encoder Network Protocols: NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
  • HDMI Decoder Network Protocols:NDI|HX2, NDI|HX3
  • Control Interfaces:10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
  • Control Protocols:VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
  • Input Voltage:DC 12V, POE IEEE 802.3af
  • Input Current:2.0A (Max)
  • Power Consumption: 13W (Max)
  • Working Temperature: -10ºC ~ +40ºC
  • Working Humidity:20% ~ 80%
  • Dimension (W*H*D): 171.6*192.6*171.6mm/ 260*217*197mm (before / after packing)
  • Net and Gross Weight: 1.35kg/2.05kg (Net/Gross weight)
  • IMAGING
  • MECHANICAL
  • I/O INTERFACE
  • GENERAL

What's Included

  • 3x BirdDog X1 30x PTZ Camera Remote Controller
  • DC 12V Power Supply
  • Welcome Pack
  • Rear Silicone Numbers
  • USB Cable
  • 1x KBD Controller
  • 1x Protective foam case for easy transport
  • Limited 5-Year Manufacturer Warranty
