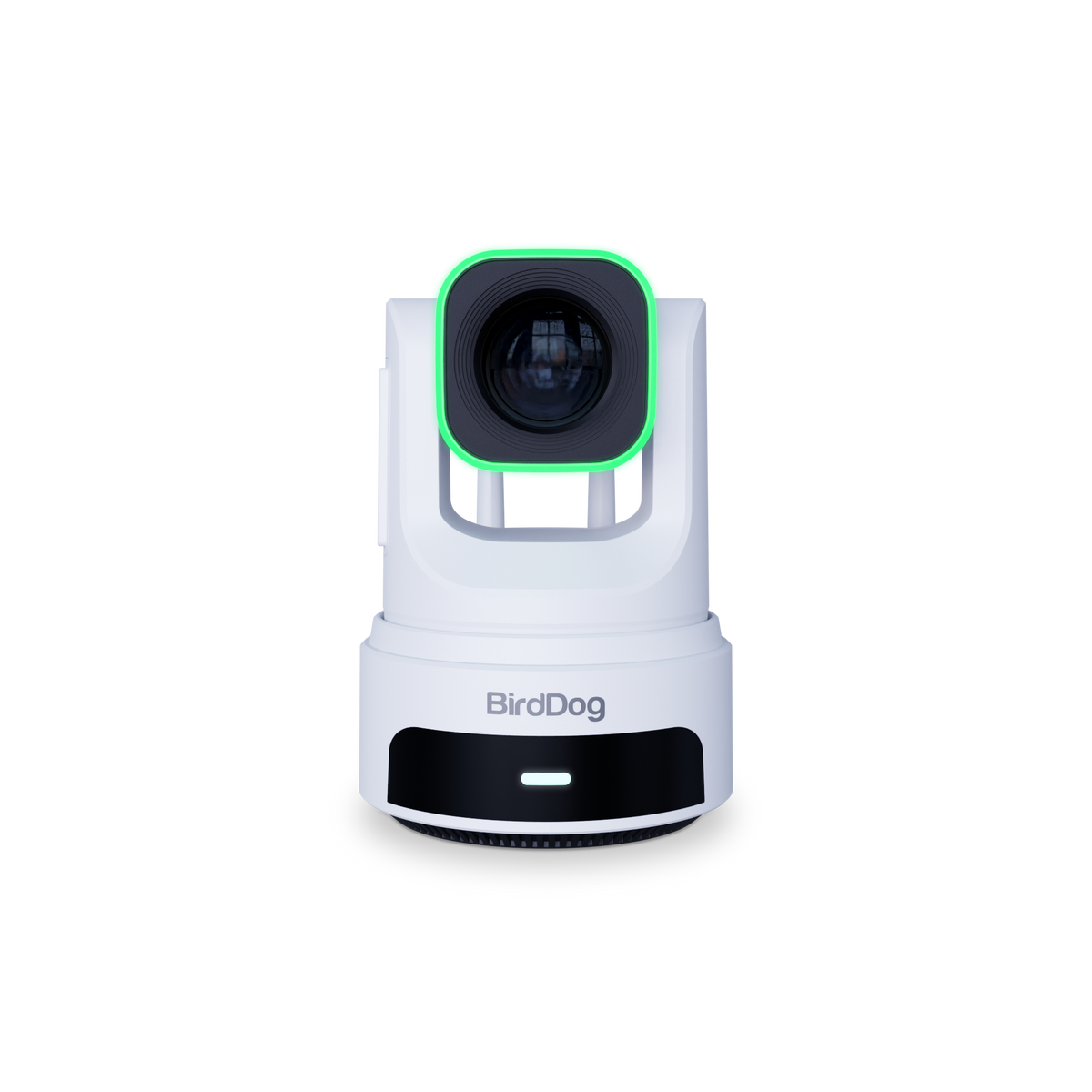

BirdDog X4 Ultra 20X 2160p60 4K PTZ camera - White
BirdDog X4 Ultra 20X 2160p60 4K PTZ camera - WhiteThe BirdDog X4 Ultra is a 4K60 PTZ camera in white built around wireless freedom. A built-in battery and Wi-Fi 6 let it shoot where cables cannot reach, and up to four cameras...
PRODUCT DETAILS
Everything you need to know.
BirdDog X4 Ultra 20X 2160p60 4K PTZ camera - White
The BirdDog X4 Ultra is a 4K60 PTZ camera in white built around wireless freedom. A built-in battery and Wi-Fi 6 let it shoot where cables cannot reach, and up to four cameras can be managed wirelessly with smooth NDI|HX3 streaming when paired with BirdDog's receiver. It fits mobile producers, event teams, and venues with camera positions that are awkward to wire.
A Sony 1/1.8-inch sensor with 8.42 effective megapixels outputs 2160p60 over 3G-SDI, HDMI, USB-C UVC, and a 1Gbps network port with PoE 802.3at. Streaming spans NDI|HX2, NDI|HX3, SRT, RTSP, and RTMP, and the 9450mAh battery runs up to 6 hours per charge depending on usage, with USB recharging and external power options. HALO tally surrounds the lens, AI handles presenter and zone tracking, and a customizable 2.13-inch e-ink label identifies each unit.
Key Features
- Sony 1/1.8-inch CMOS sensor delivering 2160p60 with 20x optical zoom
- Built-in 9450mAh battery for up to 6 hours of operation per charge
- Wi-Fi 6 wireless streaming; manage up to 4 cameras with BirdDog receiver
- NDI|HX2/HX3, SRT, RTSP, and RTMP encoding over 1GbE with PoE 802.3at
- 3G-SDI, HDMI, and USB-C UVC outputs for hybrid workflows
- Daylight-visible HALO tally ring plus rear number tally system
- AI presenter and zone tracking; customizable 2.13-inch e-ink display
Specifications
- Image Sensor: Sony 1 / 1.8” CMOS – ULTRA HD
- Lens: f= 6.25 - 125mm
- Optical Zoom: 20x
- Video Format 2160p @ 60/59.94/50/30/29.97/25fps,
- 1080p @ 60/59.94/50/30/29.97/25fps,
- 1080i @ 59.94/50fps,
- 720p @ 60/59.94
- Horizontal Angle of View: 60° (W) ~ 3.5°(T)
- Vertical Angle of View: 35° (W) ~ 2.0°(T)
- Diagonal Angle of View: 66.6°(W) ~ 4.0°(T)
- Aperture: F1.58 (W) ~ 3.95 (T)
- Focus: Auto, Manual
- Exposure: Auto, Shutter Priority, Iris Priority, Manual
- Shutter Speed: 1/1 - 1/10000s
- Backlight Compensation: Yes
- Digital Noise Reduction: 3D Noise Reduction
- SNR: ≥45dB
- Effective Pixels: 8.42 MP
- AI Tracking: Presenter Tracking, Zone
- Pan/Tilt Rotation: ±170°, -30° ~ +90°
- Pan Control Speed: 1.7-80°/sec
- Tilt Control Speed: 1.7-60°/sec
- Preset Number: 255 Presets
- Integrated Tally Light: HALO tally and rear number tally system
- Display: e-Ink 2.13” with customization logo
- Video Output Interfaces: 3G-SDI, HDMI, USB-C UVC, Network
- Video Compression Formats: H.264, H.265
- Network Interfaces: 1Gbps adaptive Ethernet port; PoE IEEE 802.3at, WiFi 6
- Encoder Network Protocols: NDI®|HX2, NDI®|HX3, RTSP, RTMP, SRT
- Control Interfaces: 1Gbps Ethernet, USB-C, RS-232
- Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®, ONVIF
- Analogue Audio: 3.5mm TRS Line input/Mic Input
- Environmental Operation: Internal
- Input Voltage: DC 12V, POE IEEE 802.3at
- Input Current: 5.0A (Max)
- Battery Capacity: 9450mAh
- Battery operating time (per charge): up to 6 hours run time (usage dependent)
- Working Temperature: 0°C ~ +40°C
- Working Humidity: 20% ~ 80%
- Dimension (W*H*D) mm: 140.2*188.9*203.2mm/ 295*245*254mm (before / after packing)
- Dimension (W*H*D) in: 5.5*7.43*8.0in/ 11.6*9.6*10.0in (before / after packing)
- Net and Gross Weight: 2.19kg (Net Weight)
- IMAGING
- MECHANICAL
- I/0 INTERFACE
- GENERAL
What's Included
- BirdDog X4 Ultra PTZ Camera
- IR Remote Controller
- DC 12V Power Supply
- Welcome Pack
- 2x Antennas
- Rear Silicon Numbers
- Limited 5-Year Manufacturer Warranty
