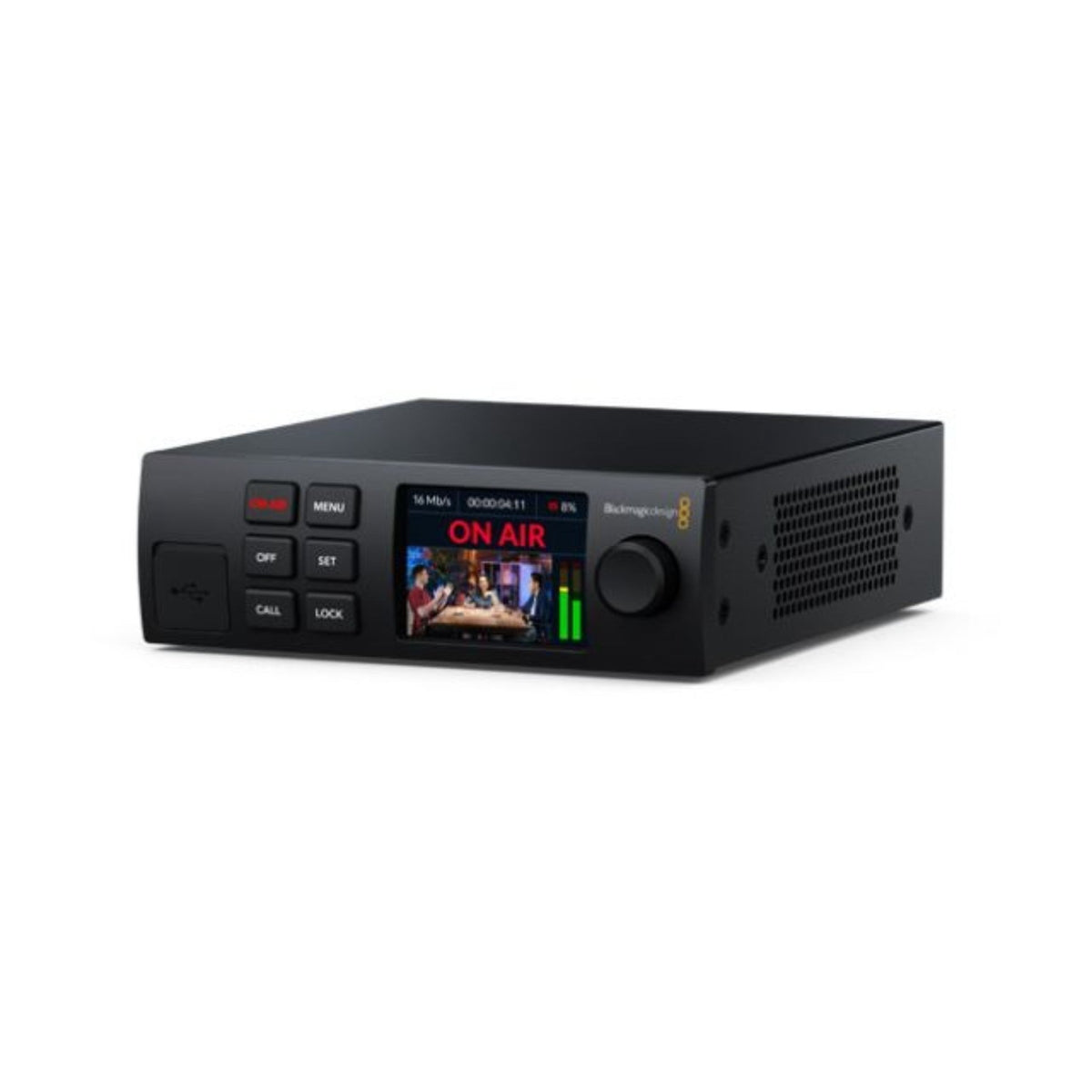

Blackmagic Design Streaming Encoder HD BMD-BDLKWEB/C/SEDHD

Blackmagic Design Streaming Encoder HD — Professional H.264/H.265 Live Streaming Encoder

The Blackmagic Design Streaming Encoder HD is a self-contained H.264 and H.265 hardware encoder that streams live HD and Ultra HD content to YouTube, Facebook, X, Blackmagic Cloud, and other major platforms — no computer required. With a 12G-SDI input supporting resolutions up to 2160p60, it delivers broadcast-quality live streaming via SRT or RTMP protocols in a compact ⅓ rack-width chassis.

For professionals seeking the best hardware encoder for live streaming without the complexity of a dedicated streaming PC, the Streaming Encoder HD eliminates that dependency entirely. Simply connect an SDI source from a live production switcher, enter your streaming key using the Blackmagic Streaming Utility, and go on-air. Support for Ethernet alongside 4G and 5G mobile data connections makes it equally capable in permanent installs and on-location broadcast environments — a compelling option for houses of worship, sports venues, and broadcast trucks.

Built around a meticulously engineered hardware streaming engine, the Streaming Encoder HD delivers dropped-frame-free performance with presets for all major platforms stored in editable XML files — giving technically minded operators the flexibility to add custom platforms or fine-tune low-level encoding parameters. USB-C webcam output, HDMI status monitoring, and compatibility with the Blackmagic Streaming Decoder for tally, talkback, and camera control round out a professional broadcast streaming workflow in a single compact unit.

Key Features of the Blackmagic Streaming Encoder HD

• Self-Contained Hardware Encoding: Delivers H.264 and H.265 encoding with no computer required, eliminating dropped frames and the overhead of software-based streaming solutions.
• 12G-SDI Input with Ultra HD to HD Downconverter: Accepts SDI sources up to 2160p60 and automatically downconverts Ultra HD signals to HD for streaming, preserving full production quality at every resolution.
• Multi-Platform Streaming Support: Streams via SRT or RTMP protocols to YouTube, Facebook, X, Blackmagic Cloud, and additional platforms — with presets stored in editable XML files for custom configuration.
• Flexible Connectivity — Ethernet, 4G, and 5G: Enables reliable internet connectivity via wired Ethernet or a connected smartphone's mobile data, supporting both permanent installs and remote live productions.
• USB-C Webcam Output: Outputs video as a USB webcam signal, expanding compatibility with video conferencing and software-based production workflows without additional hardware.
• HDMI Status Monitoring: Provides a dedicated HDMI monitoring output for at-a-glance encoder status, keeping operators informed without interrupting the primary SDI signal path.
• Blackmagic Streaming Utility Software: Mac- and Windows-compatible configuration software connects via USB or Ethernet, enabling quick platform selection, streaming key entry, and preset management from a remote workstation.

Technical Specifications

• SKU: BMD-BDLKWEB/C/SEDHD
• Codec Support: H.264, H.265
• Video Input: 12G-SDI
• Maximum Input Resolution: 2160p60
• Downconverter: Built-in Ultra HD to HD
• Streaming Protocols: SRT, RTMP
• Network Connectivity: Ethernet; 4G/5G via smartphone
• Webcam Output: USB-C
• Monitoring Output: HDMI
• Form Factor: ⅓ rack width
• Software: Blackmagic Streaming Utility (Mac/Windows); USB or Ethernet connection
• Compatible Platforms: YouTube, Facebook, X, Blackmagic Cloud, and more
