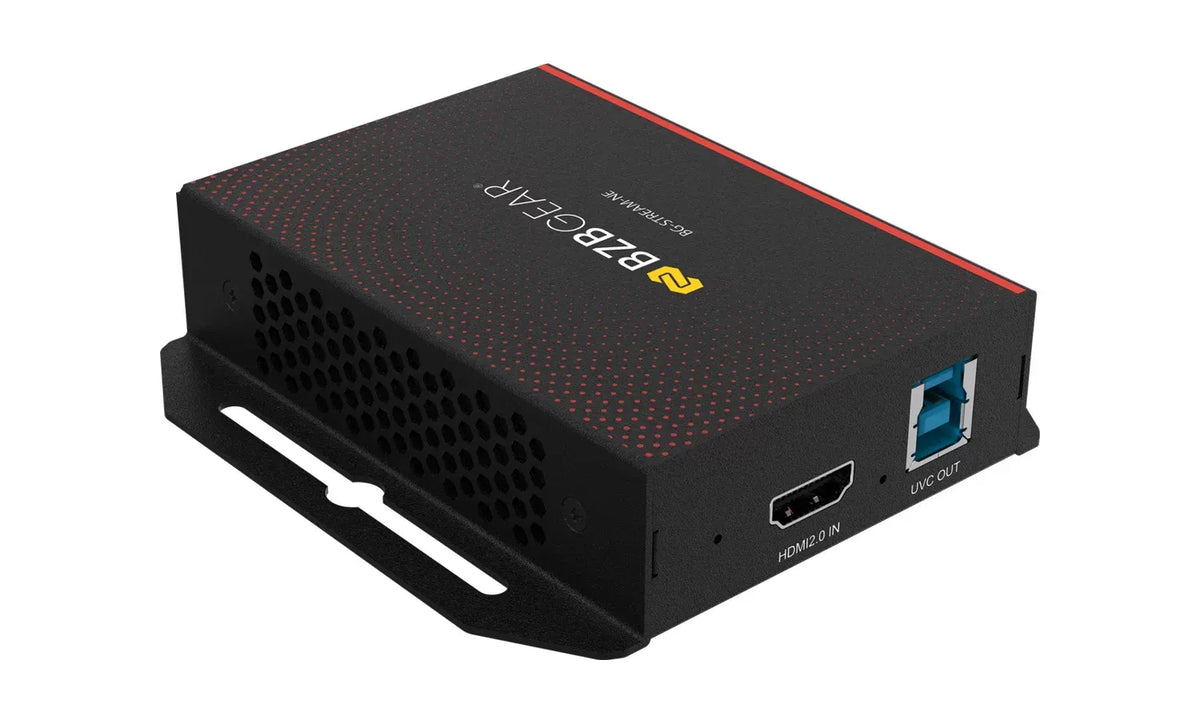

BZBGEAR BG-STREAM-E HDMI to IP UVC Streaming Encoder
In stock SKU: BZB-BGSTREAMNE

EchoForge

BZBGEAR BG-STREAM-E HDMI to IP UVC Streaming Encoder

$561.75

BZBGEAR BG-STREAM-E HDMI to IP UVC Streaming Encoder The BZBGEAR BG-STREAM-E is a professional-grade HDMI to IP streaming encoder designed for modern AV-over-IP, live streaming, and USB capture workflows. Built for reliability in commercial, education, worship, and broadcast environments, this compact encoder...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

BZBGEAR BG-STREAM-E HDMI to IP UVC Streaming Encoder

The BZBGEAR BG-STREAM-E is a professional-grade HDMI to IP streaming encoder designed for modern AV-over-IP, live streaming, and USB capture workflows. Built for reliability in commercial, education, worship, and broadcast environments, this compact encoder converts HDMI video sources into high-quality IP streams while simultaneously supporting USB UVC output for direct connection to computers.

Supporting advanced compression formats including H.264 and H.265, the BG-STREAM-E ensures efficient bandwidth usage without sacrificing image quality. With support for multiple streaming protocols such as NDI HX, RTSP, RTMP, HLS, and Dante AV-H (license required), this encoder integrates seamlessly into existing IP-based production and distribution systems.

Key Features

  • HDMI to IP Encoding: Converts HDMI video sources into IP streams for flexible network-based distribution.
  • USB 3.0 UVC Output: Functions as a UVC device for plug-and-play use with conferencing and streaming software.
  • Advanced Video Compression: Supports H.265 and H.264/AVC for high-quality, low-bandwidth streaming.
  • Multi-Protocol Streaming Support: Compatible with NDI HX, RTSP, RTMP, HLS, TS over IP, and Dante AV-H (licenses required where applicable).
  • Full HD Performance: Supports resolutions up to 1920x1080 at 60fps.
  • PoE Capability: Power the unit via Ethernet for simplified installation.
  • Web-Based Management: Built-in Web UI allows easy configuration and monitoring.
  • Firmware Upgradable: Ensures long-term usability with future feature enhancements.

Technical Specifications

  • Video Input: 1 × HDMI
  • Video Outputs: 1 × RJ45 Ethernet, 1 × USB 3.0 Type-B (UVC)
  • Video Compression: H.265 / H.264 / AVC (Baseline, Main, High Profile)
  • Maximum Resolution: 1920 × 1080p @ 60/50fps
  • Supported Resolutions: 1080p, 1080i, 720p, XGA, SVGA, VGA, and additional legacy formats
  • Audio Support: AAC-LC
  • Audio Bit Rate: 32 Kbps to 384 Kbps
  • Audio Sample Rate: 48 kHz, 16-bit
  • Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet
  • Network Features: DHCP Client
  • Streaming Protocols: RTSP (UDP/TCP/Multicast/HTTP), RTMP (Publish), HLS, TS over IP
  • NDI Support: NDI HX (separate license required)
  • Dante AV-H Support: Separate license required
  • Power: DC Input or PoE
  • Unit Dimensions: 4.1 × 2.8 × 1.0 inches

What's Included

  • 1 × BG-STREAM-E HDMI to IP Encoder
  • 1 × DC Power Adapter
