CHAUVET DJ Freedom H1 X4 Wireless Battery-Operated LED Wash Light System (4-Pack)

CHAUVET DJ Freedom H1 X4 Wireless Battery-Operated LED Wash Light System (4-Pack)

The Freedom H1 is a compact, battery-operated, 100% wireless LED wash fixture with a built-in D-Fi transceiver for wireless DMX control. The X4 kit bundles four Freedom H1 fixtures with diffusers, a multi-charger, IRC-6 infrared remote, and a soft carry bag—designed for fast setup, effortless transport, and flexible placement. The single hex-color 10W LED (RGBAW+UV) delivers saturated color mixing in a small footprint and the magnetic base and gel holder make mounting and filter changes quick and convenient.

Control options include stand-alone modes, wireless DMX (built-in D-Fi), infrared remote control, or manual operation via the fixture’s digital display. With a fixed beam angle and multiple DMX channel modes (6 / 8 / 12), the Freedom H1 is suitable for uplighting, stage washes, accent lighting, and portable event installations.

Key Features

• Type: Battery-operated wireless LED wash (par-style).
• Kit: X4 kit includes 4 x Freedom H1 fixtures plus diffusers, multi-charger, IRC-6 remote and carry bag (kit contents verified on manufacturer/retailer pages).
• Light Source: 1 × 10 W hex-color LED (RGBAW+UV), ~50,000 hours life expectancy.
• Colors / Effects: RGBAW + UV color mixing; strobe and dimming functions; magnetic gel holder for filters/gradients.
• Wireless: Built-in D-Fi transceiver (wireless DMX) and IR remote (IRC-6) control; operating frequency 2.412–2.484 GHz.
• DMX Modes: 6, 8, or 12 DMX channels for flexible control options.
• Beam / Field: Beam angle 21°; field angle 32° (measured/spec).
• Illuminance: With filter: 268 lux @ 2 m; Without filter: 314 lux @ 2 m.
• Battery & Run Time: Fixed rechargeable lithium-ion battery; Maximum run time: up to 8 hours (all LEDs full), up to 20 hours (single color / economy). Recharge time ~7 hours via multi-charger.
• Inputs / Charging: Multi-Charger included (AC: 100-240 VAC, 50/60 Hz); fixture DC input: 8.4 VDC, 1.5 A. Multi-Charger provides DC power out and charges multiple fixtures simultaneously.
• Mounting: Magnetic base for metal surfaces; bracket mounting point (M12 hole reported by some retailers) for standard fixtures.
• Controls / UI: Digital display for addressing and local control; stand-alone programs available; master/slave via wireless DMX; IR remote support (IRC-6 included).
• Approvals: CE, FCC (where applicable).

Technical Specifications

• DMX Channels: 6 / 8 / 12.
• Light Source: 1 LED (hex-color RGBAW+UV), 10 W (3 A), ~50,000 hours life expectancy.
• Strobe Rate: 0 – 25 Hz.
• Beam Angle: 21°.
• Field Angle: 32°.
• Operating Frequency (wireless): 2.412 – 2.484 GHz (built-in D-Fi).
• Illuminance: 268 lux @ 2 m (with filter); 314 lux @ 2 m (without filter).
• Input Voltage: Fixture: 8.4 VDC, 1.5 A. Charger: 100-240 VAC, 50/60 Hz.
• Maximum Run Time: Up to 8 hours (all on); Up to 20 hours (single color / economy).
• Recharge Time: ~7 hours (multi-charger to full charge, depending on load).
• Weight: 1.4 lb (0.64 kg) per fixture.
• Dimensions: 3.8 x 3.0 x 8.5 in (97 x 75 x 139 mm) per fixture.
• Certifications: CE, FCC.

What's Included (X4 Kit)

• 4 x Freedom H1 fixtures (battery-powered LED wash lights)
• 4 x diffusers / gel holders (kit-specific accessories vary by retailer)
• 1 x Multi-Charger (charges multiple fixtures; AC power supply included)
• 1 x IRC-6 Infrared Remote

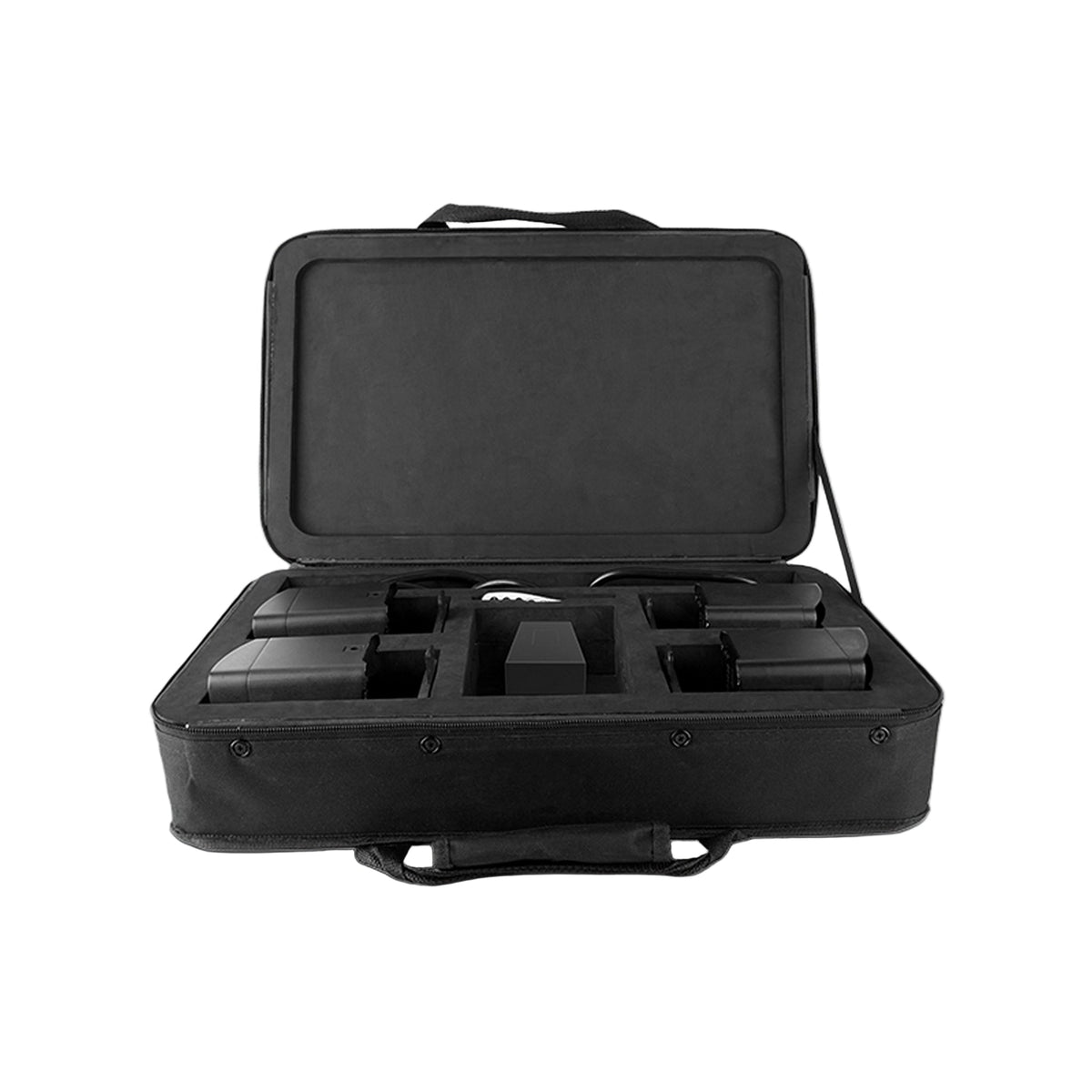

• 1 x Soft carry bag for fixtures and accessories
• User manuals, safety documentation, and quick reference guides (paper and/or downloadable PDFs)
