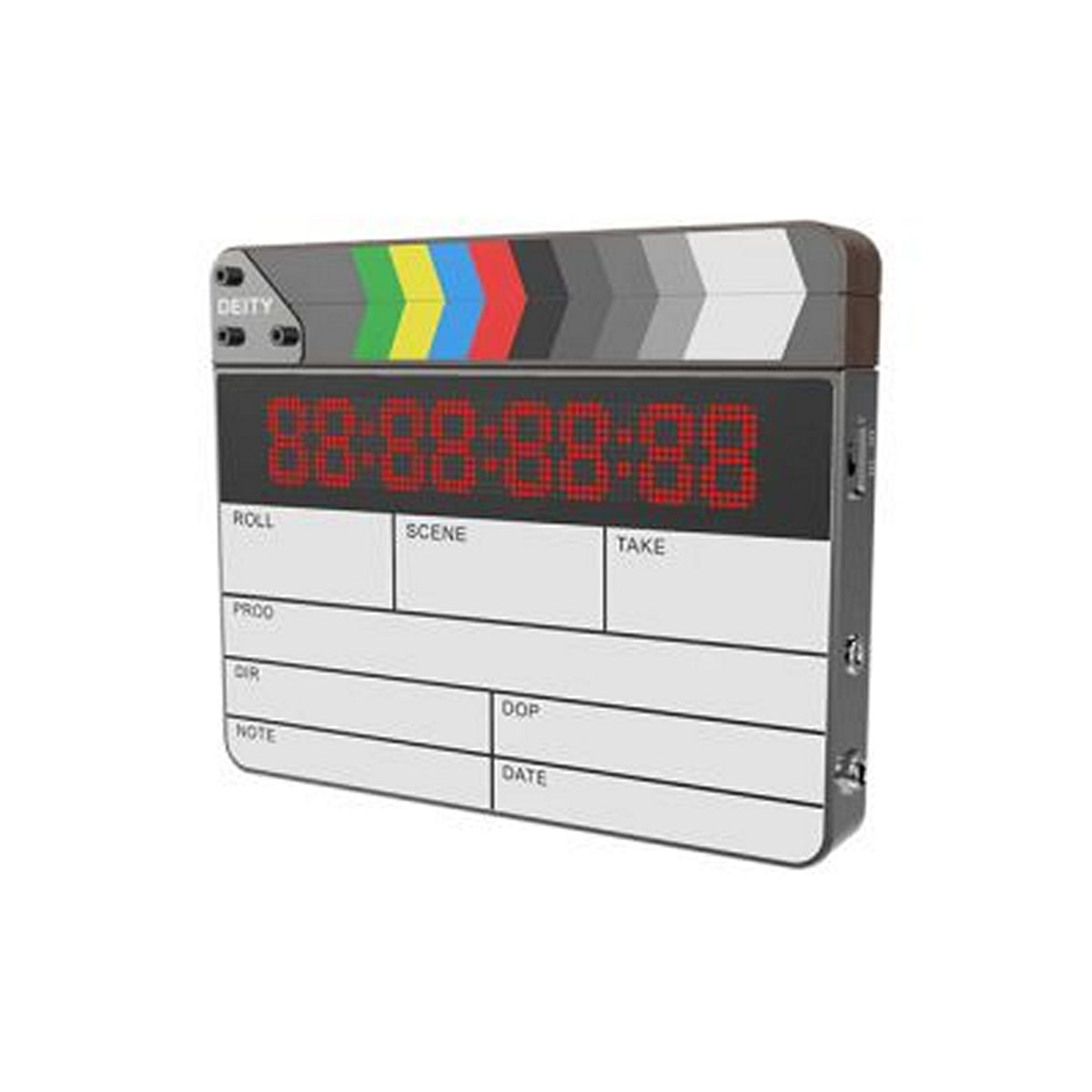

Deity TC-SL1 Smart Timecode Slate Wireless Smart Slate / Timecode Clapper

DEITY TC-SL1 Smart Timecode Slate — Wireless Smart Slate / Timecode Clapper

The DEITY TC-SL1 is a professional smart timecode slate that combines a bright, backlit slate surface and a low-drift timecode generator with wireless control. Designed for film, TV and multicamera shoots, the TC-SL1 can be jam-synced by cable or wirelessly and controlled from the Sidus Audio app for rapid group management on set.

Featuring a large dot-matrix timecode display, a backlit dry-erase slate panel and a precision oscillator, the TC-SL1 is built for rapid slating and reliable sync across cameras and audio devices. The slate supports multiple jam modes and frame rates and accepts standard timecode cables/adapters for professional workflows.

Rugged and bag-friendly, the TC-SL1 ships with rechargeable NP-F batteries, a soft case and timecode cabling, making it ready for field use in narrative, documentary and broadcast setups.

Key Features

• Timecode Generation: SMPTE timecode generator with multiple frame rates (23.98 / 24 / 25 / 29.97 / 29.97DF / 30, etc.).
• Accuracy / Drift: Precision oscillator (±0.5 ppm) — extremely low drift (manufacturer ≈ less than 1 frame per 48 hours stated in manual).
• Wireless & App Control: 2.4 GHz RF + Bluetooth (Sidus Audio app) for wireless master/peer sync and app-based monitoring/configuration.
• Display: Bright dot-matrix / rear OLED timecode display; backlit dry-erase slate surface for notes.
• Power: Dual NP-F battery bays (FB-NP-F550-DT ×2 included); USB-C quick charging supported.
• Jam & Sync Modes: Master Run, Auto Jam, Jam Once & Lock; cable jam via included timecode cable supported.
• Connectors: 5-pin timecode port (5P), 6.35 mm / 3.5 mm TRS timecode outputs (adapter/cable variants included depending on region/kit).
• Construction: Rugged slate body with ergonomic handle and walnut clapper sticks (magnetic joint), soft carry case included.
• Use Cases: Multicamera shoots, production slating, timecode master for on-set sync, rental houses and documentary/ENG workflows.

Technical Specifications

• Dimensions: 9.17" × 7.28" × 1.61" (233 × 185 × 41 mm).
• Weight: 2.49 lb (1.13 kg) — net weight (includes batteries as shipped by manufacturer).
• Timecode Accuracy: ±0.5 ppm (manufacturer TCXO precision).
• Wireless: 2.4 GHz RF and Bluetooth (Sidus Audio app support).
• Display Type: Dot-matrix / OLED timecode display (rear OLED and front dot matrix/timecode display).
• Battery: 2 × FB-NP-F550-DT (3350 mAh each) — included in the package.
• Operating Temperature: −20 °C to +45 °C.

What's Included

• 1 × DEITY TC-SL1 Smart Timecode Slate
• 2 × FB-NP-F550-DT rechargeable batteries (3350 mAh each)
• 1 × USB-C charging cable
• 1 × Erasable marker
• 1 × Soft carry case
• 1 × USB-C → USB-A firmware update adapter
• 1 × 3.5mm locking TRS → 5P timecode cable (or region variant cable as included)
