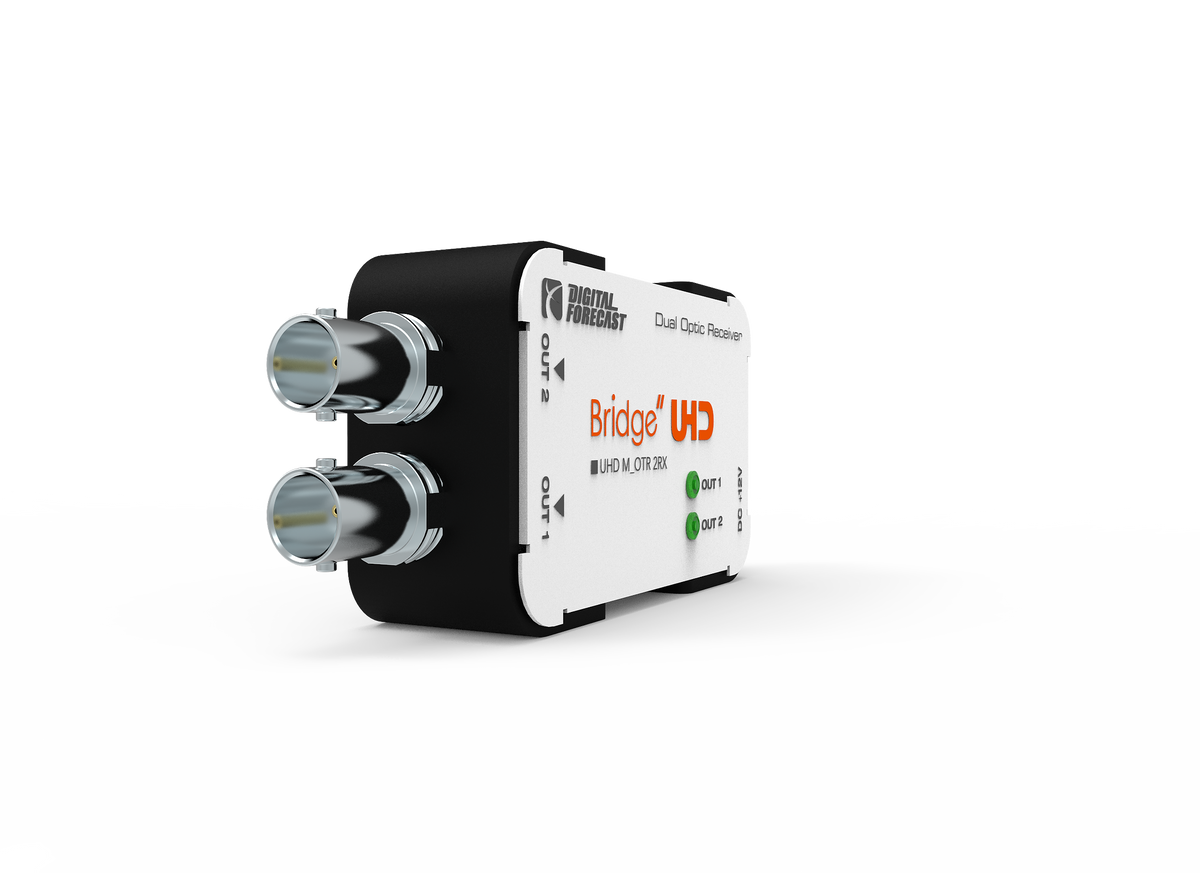

Digital Forecast UHD M_OTR 2TX/2RX 3G Dual-Channel 3G-SDI Extender
In stock SKU: DIGIT-UHDMOTR2TX2RX3G

EchoForge

Digital Forecast UHD M_OTR 2TX/2RX 3G Dual-Channel 3G-SDI Extender

$554.25

Digital Forecast UHD M_OTR 2TX/2RX 3G Dual-Channel 3G-SDI Optic Extender Set The Digital Forecast UHD M_OTR 2TX/2RX 3G is a micro-compact 3G-SDI over fiber optic extender set designed to convert 3G-SDI signals to optical for reliable long-distance transmission. Built for space-constrained rigs...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Digital Forecast UHD M_OTR 2TX/2RX 3G Dual-Channel 3G-SDI Optic Extender Set

The Digital Forecast UHD M_OTR 2TX/2RX 3G is a micro-compact 3G-SDI over fiber optic extender set designed to convert 3G-SDI signals to optical for reliable long-distance transmission. Built for space-constrained rigs and professional video workflows, it supports dual-channel transport over LC single-mode fiber for clean, stable signal extension.

Ideal for studios, live production, and remote camera runs, this dual-channel 3G-SDI optic extender set helps reduce signal loss across long cable paths while keeping your system compact and power-efficient. With an included 3G SFP module and a rated maximum transmission distance up to 10 km, it’s well-suited for demanding SDI over fiber deployments.

Key Features

  • Micro-Compact Size: Space-saving form factor for tight installations and mobile rigs.
  • Dual-Channel 3G-SDI Transport: Supports extending up to two 3G-SDI channels over optical signal conversion.
  • 2x 3G-SDI Inputs: Dual SDI input connectivity for multi-signal workflows.
  • 2x 3G-SDI Outputs: Dual SDI output connectivity for return to SDI environments.
  • LC Single-Mode Fiber: Designed for LC single-mode fiber connections.
  • Single-Core Fiber Operation: Supports single-core (one LC fiber strand) operation as specified.
  • 3G SFP Module Included: Includes the 3G SFP module for optical transmission.
  • Up To 10 km (3G): Rated for long-range transmission up to 10 km (3G).

Technical Specifications

  • Brand: Digital Forecast
  • Model / SKU: UHD M_OTR 2TX/2RX 3G
  • Signal Type: 3G-SDI to Optical (SDI over fiber)
  • Channels: Dual channel
  • SDI I/O: 2x 3G-SDI Input; 2x 3G-SDI Output
  • Fiber Type: LC Single Mode
  • Power Input: 7V ~ 16VDC
  • Power Consumption: 3.1W (Max 4W)
  • Operating Temperature: 0°C ~ 55°C
  • Humidity: 0% ~ 95% RH, Non-condensing
  • Signal Level: 800mVp-p +/- 80mV
  • Warranty: Limited 2-Year Manufacturer Warranty
  • Dimensions: 3.15 x 2.34 x 0.89 in (W x L x H)
  • Weight: 105 g (0.23 lb)

What's Included

  • 1x Digital Forecast UHD M_OTR 2TX 3G
  • 1x Digital Forecast UHD M_OTR 2RX 3G
  • 2x Power Adapter
