DZOFILM Pictor T2.8 Super35 Zoom 3-Lens Bundle – 14-30 mm, 20-55 mm & 50-125 mm (PL / EF, White)
In stock SKU: DZO-DZO7220001W2W3W

EchoForge

DZOFILM Pictor T2.8 Super35 Zoom 3-Lens Bundle – 14-30 mm, 20-55 mm & 50-125 mm (PL / EF, White)

$4,799.25

DZOFilm Pictor T2.8 Super35 Zoom 3-Lens Bundle (White) Cover every key focal range on Super35 cameras with the white-finish DZOFilm Pictor bundle. The 14-30 mm extreme-wide, 20-55 mm mid-range, and 50-125 mm telephoto zooms share a fast T2.8 aperture, parfocal design, and...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

DZOFilm Pictor T2.8 Super35 Zoom 3-Lens Bundle (White)

Cover every key focal range on Super35 cameras with the white-finish DZOFilm Pictor bundle. The 14-30 mm extreme-wide, 20-55 mm mid-range, and 50-125 mm telephoto zooms share a fast T2.8 aperture, parfocal design, and matched 95 mm fronts, enabling rapid swaps while preserving consistent look and exposure.

Each lens features a 16-blade iris for smooth oval bokeh, minimal breathing, and a 2× to 2.75× zoom ratio. Interchangeable ARRI PL and Canon EF bayonets, 0.8 MOD gear rings, and 270° focus throws integrate with standard cine rigs, gimbals, and drones. The included hard case secures all three zooms plus accessories for travel.

Key Features

  • Focal Lengths: 14-30 mm • 20-55 mm • 50-125 mm
  • Constant T-Stop: T2.8–T22 across the set
  • Parfocal Design: holds focus while zooming
  • Minimal Breathing: internal floating focus groups
  • 16-Blade Iris: round, cinematic bokeh
  • Matched Front Diameter: Ø95 mm; 86 mm filter thread
  • Gear Pitch: 0.8 MOD on focus, iris & zoom
  • Focus / Iris / Zoom Rotation: 270° / ≈ 61–72° / 100°
  • Mounts Included: ARRI PL (installed) & Canon EF (in box)
  • Image Circle: φ31.1 mm – full Super35 coverage
  • All-Metal Housing: lightweight 1.52–1.86 kg per lens

Technical Specifications

  • 14-30 mm Weight / Length: 4.1 lb (1.86 kg) • 6.8″ (17.3 cm)
  • 20-55 mm Weight / Length: 3.35 lb (1.52 kg) • 6.46″ (16.4 cm)
  • 50-125 mm Weight / Length: 3.75 lb (1.70 kg) • 6.89″ (17.5 cm)
  • Front Diameter / Filter: 3.7″ (95 mm) • 86 mm thread (all)
  • Image Circle: φ31.1 mm Super35
  • Gear Pitch: 0.8 MOD (focus/iris/zoom)
  • Flange Distance: 52 mm (PL) • 44 mm (EF)
  • Zoom Ratios: 2.14× (14-30) • 2.75× (20-55) • 2.5× (50-125)
  • Package Weight (kit): 29.94 lb (13.58 kg)
  • Package Size: 23.3 × 19.6 × 13.7″ (59.2 × 49.8 × 34.8 cm)

What's Included

  • Pictor 14-30 mm T2.8 Zoom (PL, white) + Front & PL Rear Caps, Shim Set, Support Rod, EF Bayonet & Cap
  • Pictor 20-55 mm T2.8 Zoom (PL, white) + Front & Rear Caps, Zoom Stick, EF Mount & Cap
  • Pictor 50-125 mm T2.8 Zoom (PL, white) + Front & Rear Caps, Zoom Stick, EF Mount & Cap

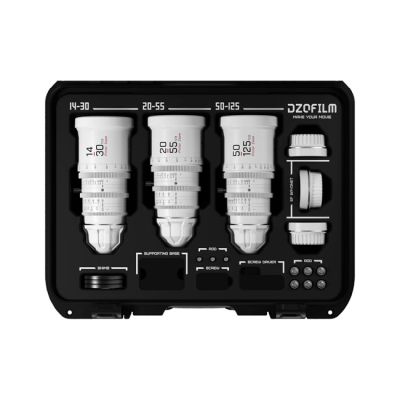

  • Hard Carry Case with Laser-Cut Foam (3-Lens)
  • Limited 1-Year Manufacturer Warranty
