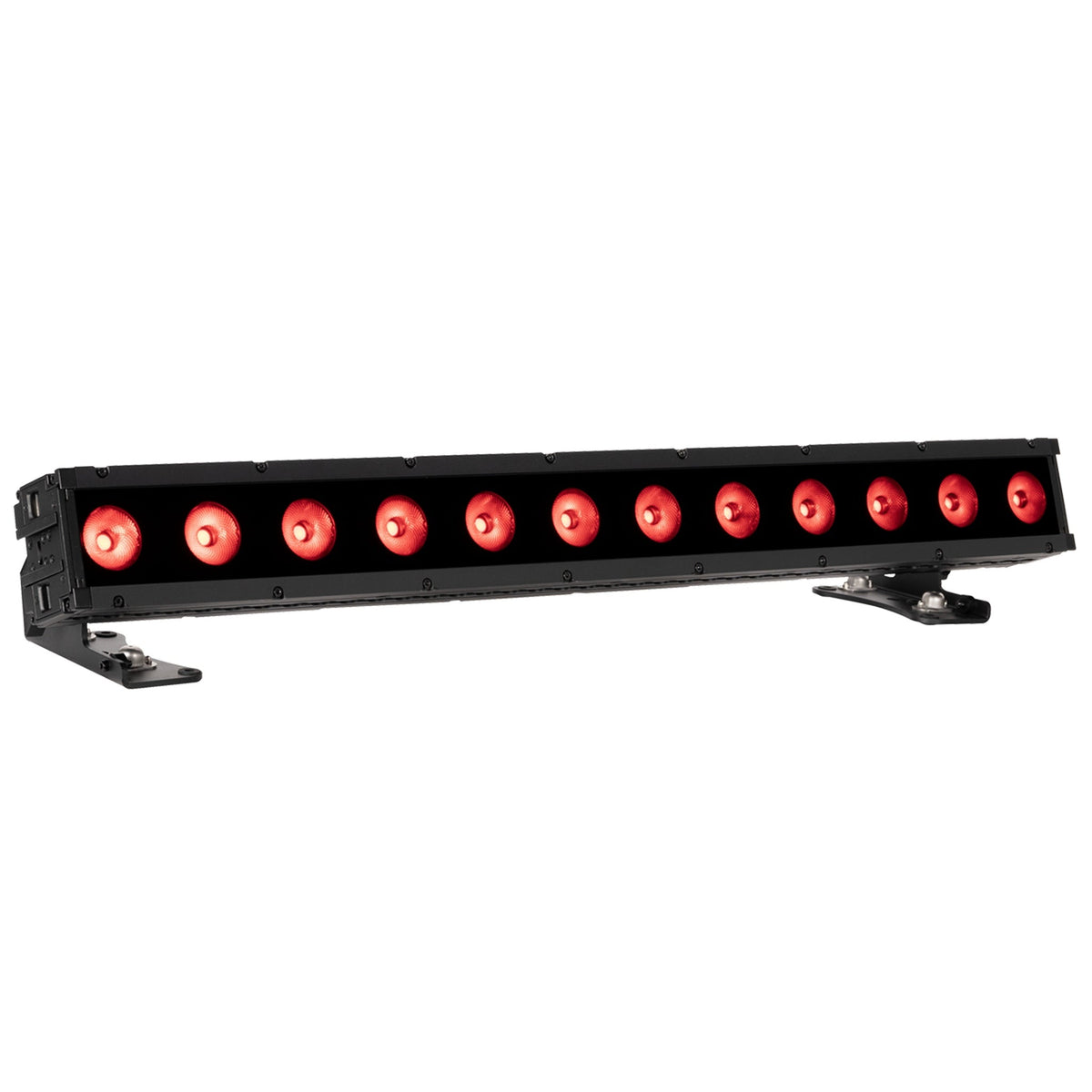

Elation SIX+ BAR L 20W RGBLA+UV LED Batten Fixture, IP65 Rated

Elation SIX+ BAR L RGBLA+UV LED Batten (IP65)

Unleash clean, high-output color with the meter-long SIX+ BAR L—an all-weather LED batten built for tours, installs, and broadcast. Its RGB + Lime + Amber + UV engine delivers rich primaries, beautifully calibrated whites, and smooth, homogenized washes that hold up on camera and on stage. A fanless convection design keeps operation whisper-quiet for theaters and houselights while the included frost and glare shield make it equally at home as a wall/cyc wash or direct-view pixel strip.

End-to-end mechanical interconnection and integrated L-track on three sides give you flexible rigging options, fast alignment, and secure positioning. Designers get full pixel control, variable CCT from warm 2400K to crisp 8500K, CMY emulation, and a virtual gel library for instant looks. Robust IP65 construction with marine-grade C4-M coating stands up to outdoor use and coastal environments without sacrificing precision color or reliability.

Control is production-ready out of the box: DMX/RDM, Art-Net, sACN, and KlingNet over IP65-rated XLR and RJ45 connections, plus SixBar 1000 emulation modes for easy drop-in upgrades. Power linking, wide channel mode support, and included accessories streamline setup so crews can move quickly between venues.

Key Features

• (12) 20W RGBLA+UV LED array with homogenized optics
• 9,325-lumen output, 92.3 CRI; TLCI 83
• Fanless convection cooling for silent operation
• 20-Degree native beam / 32-Degree beam with included frost; wide, even field
• Variable CCT 2400K–8500K, CMY emulation, virtual gel library
• Full pixel control with smooth 16-bit dimming and strobe effects
• Integrated L-track on three sides and end-to-end interconnection system
• IP65 weatherproof housing with C4-M marine-grade coating
• DMX/RDM, Art-Net, sACN, and KlingNet control; Aria x2 wireless device management

Technical Specifications

• LED Source: (12) × 20W RGBLA+UV; 30,000-hour average life
• Photometrics: 9,325 lm (integrating sphere) / 7,554 lm (goniometer); CRI 92.3; TLCI 83
• Optics: 20-Degree beam / 36-Degree field (no lens); 32-Degree beam / 60-Degree field (with frost)
• Dimming: Electronic, 16-bit modes and curves; strobe
• Control: 15 DMX modes (1–154 ch range) + 5 SixBar 1000 emulation modes (6/7/11/13/75 ch)
• Connections: IP65 5-pin XLR DMX in/out; IP65 RJ45 (Art-Net, sACN, KlingNet); 4-button UI with LED display
• Power: 100–240V AC, 50/60 Hz; 210W max; power thru @110V: 7 units, @240V: 16 units
• Cooling: Fanless convection
• Approvals/Ratings: CE, cETLus, FCC, UKCA, IP65
• Operating Temperature: 5-Degree F to 113-Degree F (-15-Degree C to 45-Degree C)
• Dimensions (L × W × H): 39.4-Inch × 6.9-Inch × 8.11-Inch
• Weight: 24 lb (10.9 kg)

What’s in the Box

• 1x Six+ Bar L fixture
• 1x IP65 locking power cable (in/out capable)
• 1x Frost filter
• 1x Glare shield
• 1x Fixture interconnect splice
• 1x Safety cable
