Focusrite RedNet A16R MkII 16-Channel Analog I/O Dante Audio Interface
$3,299.99
Focusrite RedNet A16R MkII 16-Channel Analog I/O Dante Audio Interface The Focusrite RedNet A16R MkII is a high-performance 1U rackmount interface offering 16 channels of analog line-level I/O with precision level control, seamlessly integrated into Dante audio-over-IP networks. Engineered for reliability and...
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product
PRODUCT DETAILS
Everything you need to know.

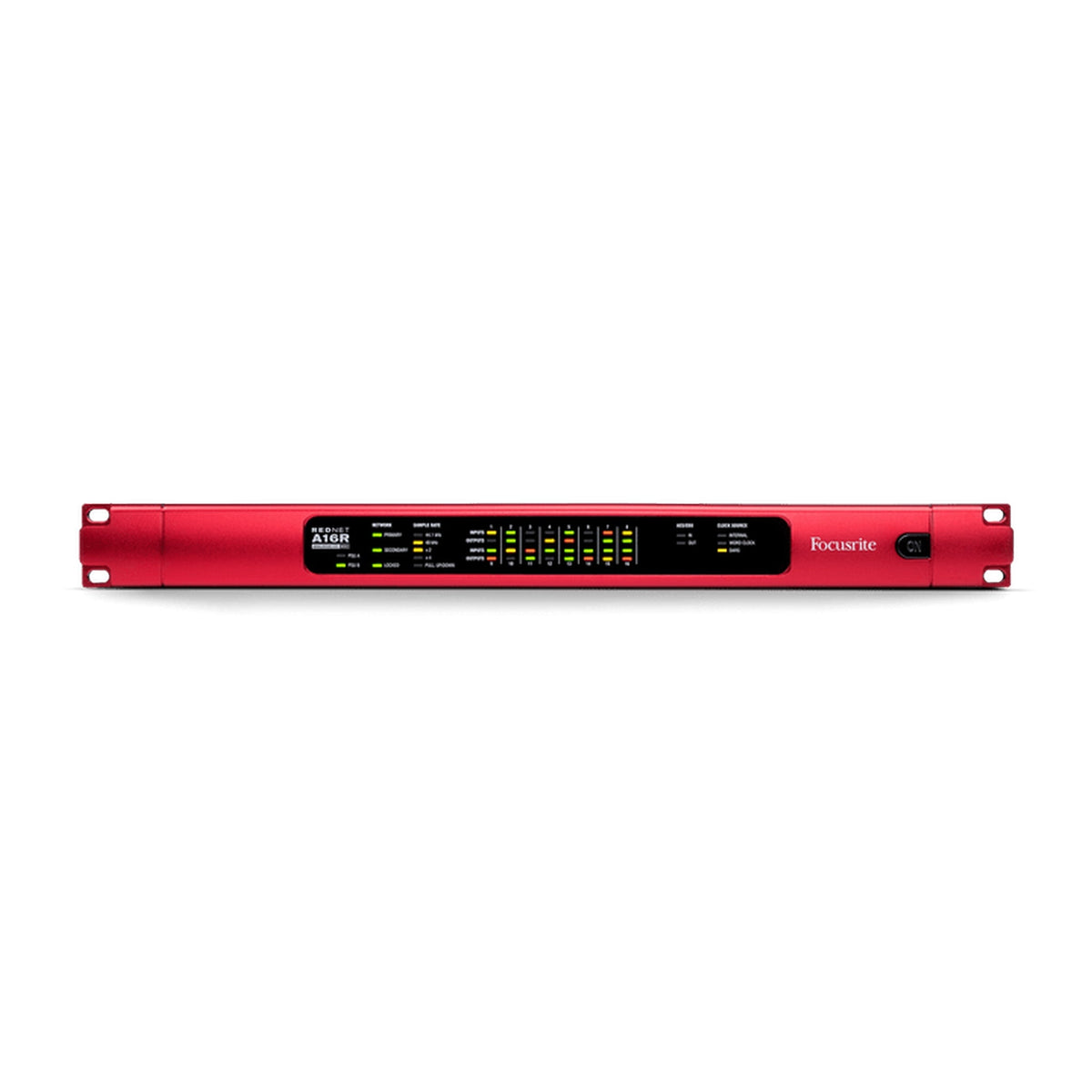

Focusrite RedNet A16R MkII 16-Channel Analog I/O Dante Audio Interface
The Focusrite RedNet A16R MkII is a high-performance 1U rackmount interface offering 16 channels of analog line-level I/O with precision level control, seamlessly integrated into Dante audio-over-IP networks. Engineered for reliability and flexibility, it features redundant power and network connections, remote control via RedNet Control software, and exceptional audio quality up to 24-bit/192 kHz.
Key Features
- Analog I/O: 16 inputs and 16 outputs via four AES59-standard DB-25 connectors
- Digital I/O: Stereo AES3 input and output via XLR (channels 17–18); includes sample-rate conversion on AES3 inputs
- Audio Quality: Up to 24-bit/192 kHz; 119 dB dynamic range; flat frequency response from 20 Hz–20 kHz (±0.15 dB); THD+N < –100 dB
- Level Control: Independent level trim, mute, and dim functionality per channel via RedNet Control
- Redundancy: Dual locking etherCON Dante network inputs and dual internal power supplies with seamless auto switch-over
- Clocking: Word Clock I/O via BNC and optional DARS sync via XLR; sample-rate conversion on AES3 channels
- Monitoring: Front-panel LEDs for PSU, network, sample rate, clock source, and channel signal presence
- Software Integration: Compatible with RedNet Control and Dante Controller; supports AES67, AES70, and SMPTE ST 2110 (with Dante Domain Manager)
Technical Specifications
- Rack Size: 1U (19″ rack)
- Dimensions: 482 mm × 44.5 mm × 352 mm (18.98″ × 1.75″ × 12.8″)
- Weight: ~5.0 kg (11.1 lb)
- Analog I/O: 16 Inputs, 16 Outputs via DB-25
- Digital I/O: AES3 Input/Output (XLR); sample-rate conversion on AES3 Input
- Audio Quality: 24-bit / 192 kHz max resolution; 119 dB dynamic range
- Connectivity: Dual Dante etherCON, BNC Word Clock I/O, XLR DARS/AES3 input, IEC power connectors (x2)
- Power Consumption: ~30 W (internal)
What's Included
- 1x RedNet A16R MkII unit
- 2x IEC power cables with retaining clips
- 3-year manufacturer’s warranty
