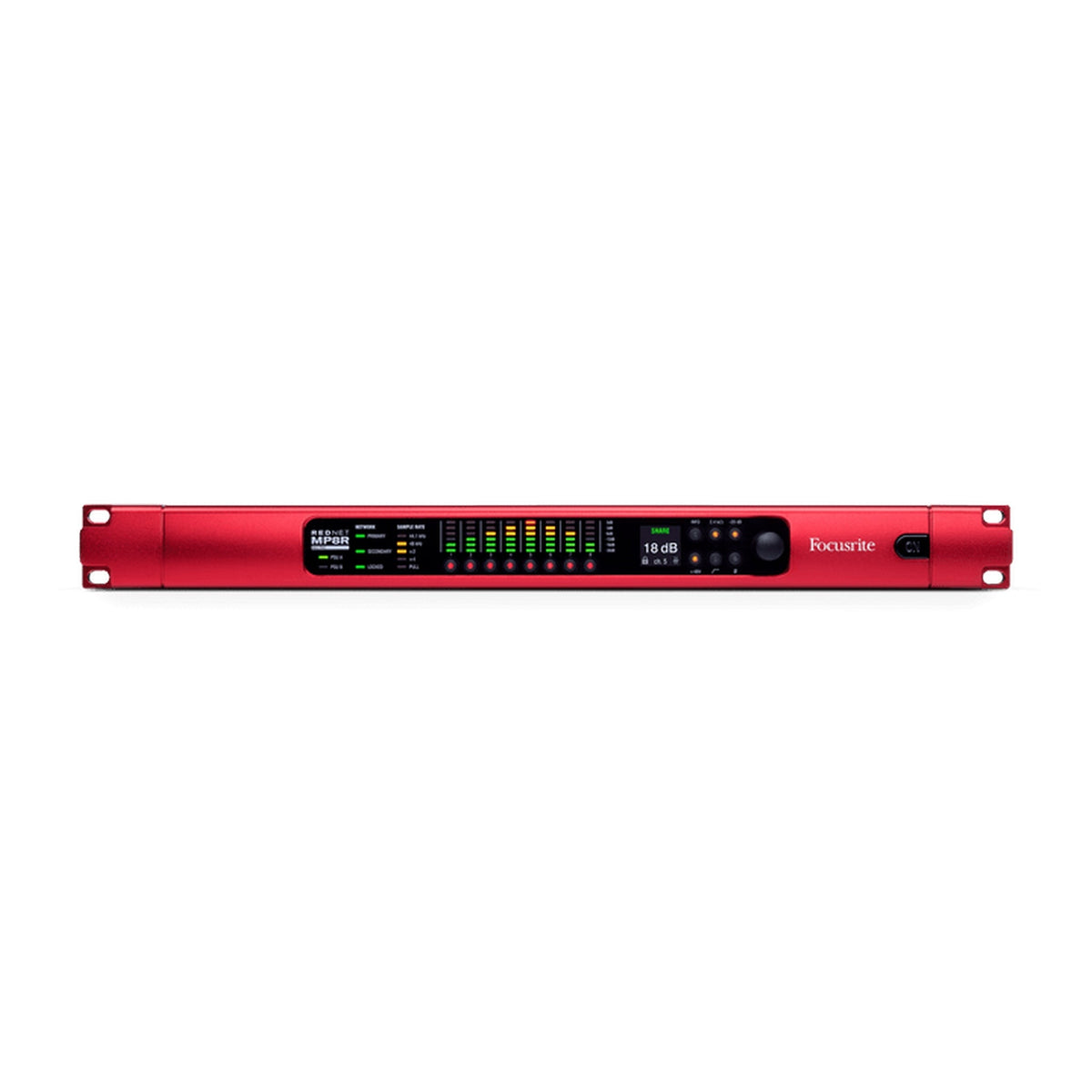

Focusrite RedNet MP8R 8-Channel Remote Controlled Microphone Preamplifier and A-D Converter for Dante, 1RU
$3,074.99
Focusrite RedNet MP8R 8-Channel Remote Controlled Microphone Preamplifier and A-D Converter for Dante, 1RU The RedNet MP8R is a rugged, live sound/broadcast-ready 8-channel microphone preamp with built-in A-D conversion and Dante networking. It delivers high-quality Sound with reliability, featuring redundant power and...
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product
PRODUCT DETAILS
Everything you need to know.
Focusrite RedNet MP8R 8-Channel Remote Controlled Microphone Preamplifier and A-D Converter for Dante, 1RU
The RedNet MP8R is a rugged, live sound/broadcast-ready 8-channel microphone preamp with built-in A-D conversion and Dante networking. It delivers high-quality Sound with reliability, featuring redundant power and network connectivity, remote control options, and a compact 1U form factor.
Key Features
- Mic Preamps: 8 remotely controlled Focusrite preamps with dual input impedance (2.4 kΩ or 10 kΩ), 20 dB pad, high-pass filter, polarity inversion, and +48 V phantom power
- Gain Tracking Split: Appears as 16 Dante channels—8 direct preamp outputs and 8 DSP gain-compensated copies for stable level splits (e.g., FOH/monitoring)
- Redundancy: Dual etherCON (locking) Ethernet ports for daisy-chaining/redundancy and dual internal power supplies with front-panel and remote fault indicators
- A/D Conversion: 8 channels of high-performance A/D conversion, up to 24-bit/192 kHz, with minimal latency and high dynamic range
- Metrology & Display: 6-segment LED level meters per channel plus OLED display for gain and status info
- Control Options: Control via front panel, RedNet Control software, Pro Tools, MIDI, or OCA (Open Control Architecture) post-firmware update
- Build Quality: Rugged all-metal chassis, locking XLR & etherCON connectors, made for reliable field use
- Software Bonus: Includes Brainworx bx_console Focusrite SC plugin—an emulation of the legendary Focusrite Studio Console strip
- Warranty: 3-year manufacturer’s warranty
Technical Specifications
- Mic Gain Range: 10–65 dB in 1 dB steps
- Max Input Level: +28 dBu; Min Input Level: –46 dBu
- Frequency Response: 20 Hz–55 kHz ±0.1 dB
- THD+N: –98 dB (0.0012%)
- SNR (A-weighted): 118 dB; EIN: –129 dBu
- HPF: –6 dB @ 65 Hz, 12 dB/oct — switchable per channel
- Sampling Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz at 24-bit
What's Included
- 1x RedNet MP8R unit
- 2x IEC power cables with retaining clips
- Support documentation and software access
- Brainworx bx_console Focusrite SC plugin
- 3-year warranty
