Galaxy Audio AS-1200 4-Receiver Wireless In-Ear Monitors P4 470–494 MHz

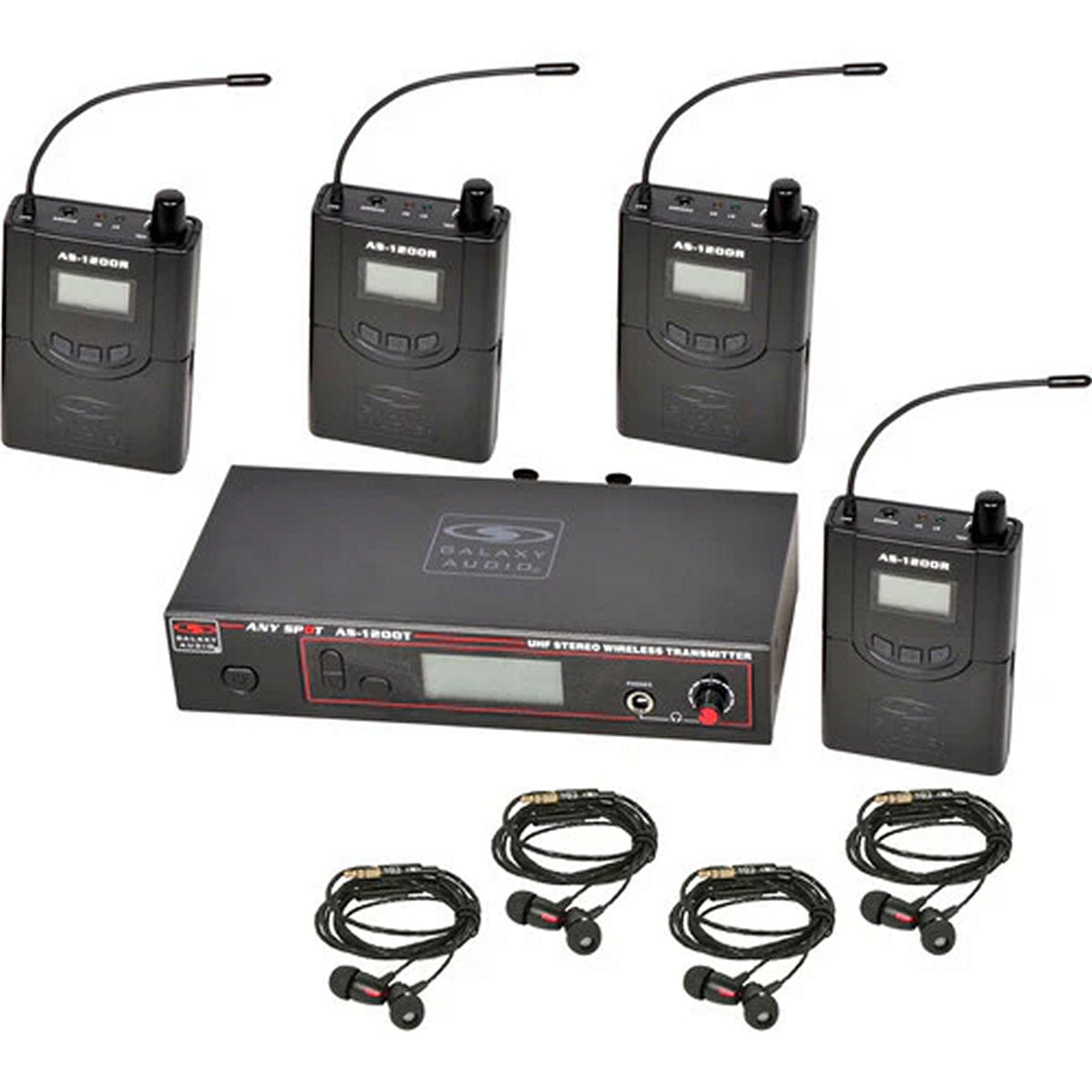

Galaxy Audio AS-1200 4-Receiver Band Pack (P4 470–494 MHz)

The Galaxy Audio AS-1200 4-Receiver Band Pack delivers a high-fidelity wireless in-ear monitoring solution for up to four performers. This P4-band configuration (470–494 MHz) pairs one AS-1200T half-rack transmitter with four AS-1200R bodypack receivers and EB4 earbuds to provide clear, personalized mixes and eliminate stage noise.

Optimized for touring acts, houses of worship, and feature performers, the AS-1200 features 210 user-selectable UHF frequencies, a backlit LCD interface for fast setup and metering, balanced XLR/¼" combo inputs on the transmitter, and compact receivers powered by two AA batteries for true on-stage mobility.

Perfect for ensembles, backup vocalists, or multi-instrument setups, this four-receiver pack keeps every performer in sync without floor wedges.

Key Features

• System: UHF wireless in-ear monitor system — 1 transmitter + 4 receivers
• Frequency Band: P4 (470–494 MHz)
• Channels: 210 user-selectable UHF frequencies
• Transmitter I/O: 2 × XLR/¼" combo inputs with level controls; front ¼" headphone output
• Receiver Output: 1/8" (3.5 mm) stereo earphone jack; compatible with standard earbuds
• RF Power & Range: 10 mW RF output; up to 300' (92 m) typical range
• Power: Transmitter: external 12–18 V DC; Receivers: 2 × AA (≈ 5 hr alkaline)
• Display & Controls: Backlit LCDs with AF/RF metering, group/channel selection, battery indicator, and panel lock
• Included Earbuds: EB4 titanium-driver earbuds with 51" cable
• Rackmount: Half-rack transmitter with rack ears and removable BNC antenna
• Durability: Rubberized receiver housing and built-in limiter for protection

Technical Specifications

• System Band: UHF
• Frequency Range: 470–494 MHz (P4)
• Selectable Frequencies: 210
• RF Output: 10 mW
• Range: Up to 300' (92 m)
• Audio Response: 70 Hz – 13.5 kHz (±3 dB)
• THD: < 1% @ 1 kHz
• S/N Ratio: > 80 dBA
• Dynamic Range: > 88 dB (A-weighted)
• Stereo Separation: 40 dB @ 1 kHz
• Max Deviation: ±15 kHz
• Transmitter Dimensions: 1.50" × 8.30" × 3.78" (3.81 × 21.08 × 9.60 cm)
• Transmitter Weight: 22.0 oz (1.375 lb / 0.624 kg)
• Receiver Dimensions: 3.73" × 2.54" × 1.00" (9.47 × 6.45 × 2.54 cm)
• Receiver Weight: 3.2 oz (0.200 lb / 0.091 kg)
• Operating Temp: 14 °F to 122 °F (–10 °C to +50 °C)

What's Included

• AS-1200T transmitter (half-rack) with rack ears
• Four AS-1200R bodypack receivers
• EB4 earbuds (one pair per receiver)
• Removable BNC antenna
• External power supply for transmitter
• Quick Start Guide
