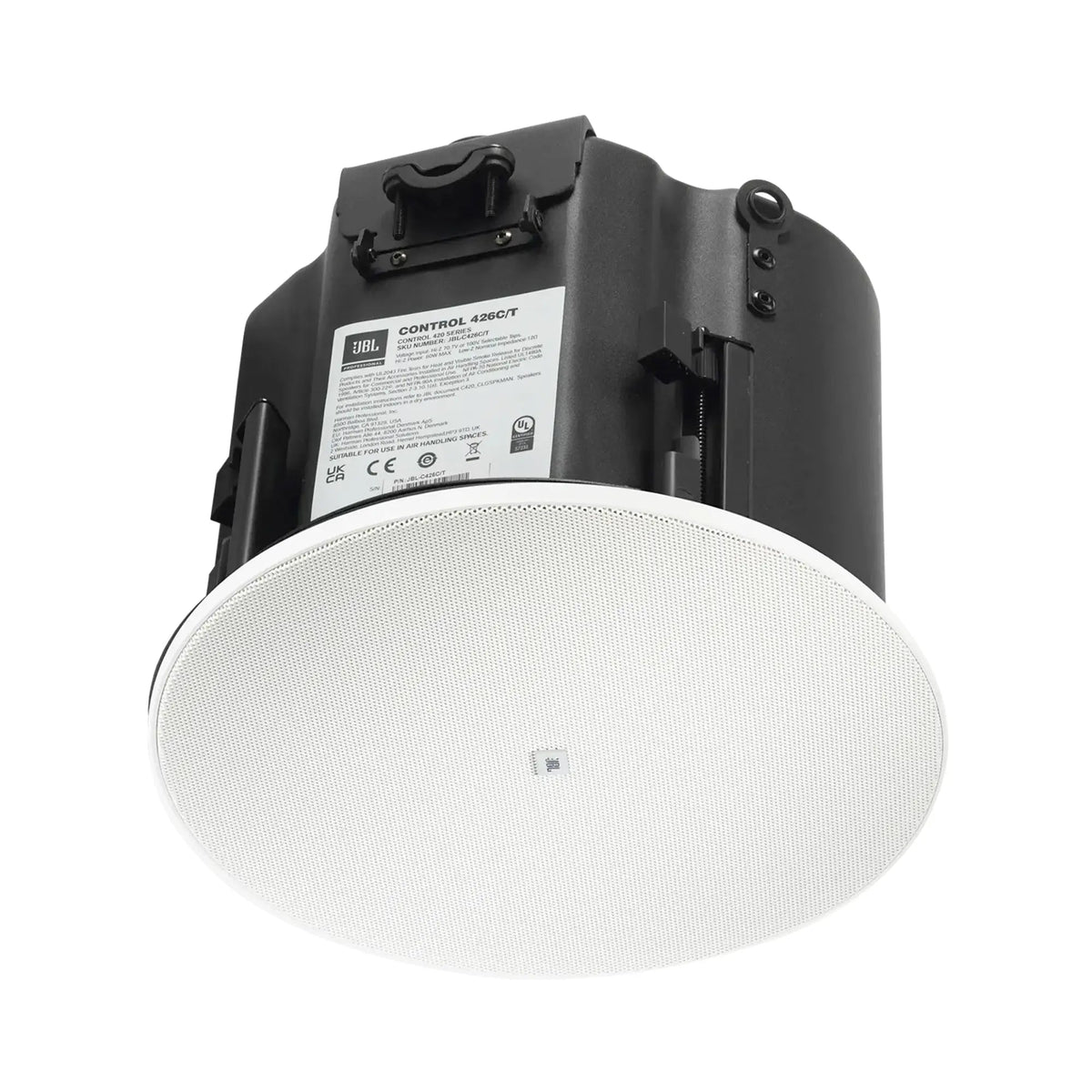

JBL Control 426C/T 6.5-Inch CRBI 2-Way Coaxial Ceiling Loudspeaker (Pair)

JBL Control 426C/T 6.5-Inch CRBI 2-Way Coaxial Ceiling Loudspeaker

The JBL Control 426C/T is a 6.5-inch two-way coaxial ceiling loudspeaker from the Control 400 Enhanced Coverage Series, combining a coaxially mounted 165 mm woofer and 25 mm soft-dome tweeter with JBL's exclusive CRBI (Coplanar Radiation Boundary Integrator) technology for consistent coverage throughout the listening space - replacing the legacy Control 26C and 26C/T.

With 75 watts of continuous power handling and controlled 110-degree conical coverage, the Control 426C/T is the workhorse choice for premium retail, restaurants, conference facilities, and hospitality venues that demand higher fidelity and output than standard-series ceiling speakers. Its 70V/100V multi-tap transformer and low-impedance operation cover any distributed or direct amplifier architecture.

All Control 400 Series models are engineered with installer-friendly features: terminal covers with top and side cable entry, captive hand-screws for tool-free securing, and a captive dogear mounting system compatible with a wide range of ceiling thicknesses. The full-face magnetic grille is paintable and includes an integrated safety tether, meeting UL 1480A, UL 2043, NFPA 90A, and NFPA 70 requirements for plenum-rated installations.

Key Features

• 6.5-Inch Two-Way Coaxial Driver: Coaxially mounted 165 mm woofer and 25 mm soft-dome tweeter for smooth, point-source sound.
• CRBI Technology: JBL-exclusive Coplanar Radiation Boundary Integrator provides consistent coverage and tonality across the room.
• 75 W Continuous Power Handling: Headroom for foreground music and high-clarity paging in demanding commercial spaces.
• 110-Degree Conical Coverage: Controlled dispersion improves intelligibility and zone-to-zone consistency.
• Combined 70V/100V and Direct Operation: Multi-tap transformer plus low-impedance input for any system architecture.
• Plenum-Rated: UL 1480A and UL 2043 listed for safe operation in air-handling ceiling plenum spaces.

Technical Specifications

• LF Driver: 165 mm (6.5 in) woofer
• HF Driver: 25 mm (1 in) soft-dome tweeter
• Power Handling: 75 W continuous
• Coverage: 110 degrees conical
• Transformer: 70V/100V multi-tap with low-impedance direct operation
• Series: Control 400 Enhanced Coverage
• Replaces: JBL Control 26C / 26C/T
• Sold As: Pair
• Safety Certifications: UL 1480A, UL 2043, NFPA 90A, NFPA 70

What's Included

• (2) JBL Control 426C/T Ceiling Loudspeakers
• Mounting Hardware
• White Paintable Magnetic Grilles
