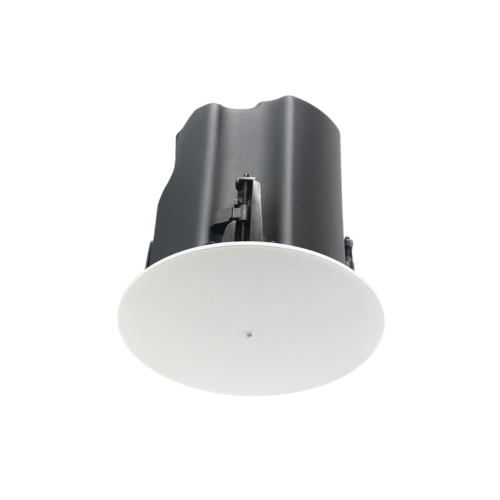

JBL Control 445C/T 5.25-Inch RBI 2-Way Coaxial Ceiling Loudspeaker (Pair)

JBL Control 445C/T 5.25-Inch RBI-Equipped 2-Way Coaxial Ceiling Loudspeaker

The JBL Control 445C/T is a 5.25-inch two-way coaxial ceiling loudspeaker from the Control 400 Premium Coverage Series, featuring JBL's Radiation Boundary Integrator (RBI) technology for broadband pattern control - delivering consistent, even coverage from 55 Hz to 20 kHz for high-end commercial audio installations in hospitality, corporate, retail, and cultural venues.

Replacing the Control 45C/T, the 445C/T occupies the mid-size slot in the Premium Coverage lineup, offering RBI-enhanced directivity control in a 5.25-inch form factor. This makes it ideal for spaces that need more output than a 4-inch speaker but prefer the refined aesthetics and smaller ceiling opening of a 5.25-inch driver over a 6.5-inch model.

Like all Control 400 Premium Coverage Series models, the speaker features JBL's redesigned terminal covers with top and side cable entry, captive hand-screw securing, and a reliable dogear design for a wide range of ceiling thicknesses. The full-face magnetic grille is paintable and includes an integrated safety tether. Safety ratings include UL 1480A, UL 2043, NFPA 90A, and NFPA 70 for plenum-rated environments.

Key Features

• 5.25-Inch RBI-Equipped Coaxial Driver: Coaxially mounted 130mm woofer with JBL's Radiation Boundary Integrator (RBI) delivers broadband pattern control for consistent coverage throughout the listening space.
• 55 Hz to 20 kHz Response: Full-range frequency coverage handles both music playback and speech reinforcement with high fidelity in premium commercial environments.
• 0.75-Inch Soft-Dome Tweeter: 20mm soft-dome HF driver with neodymium magnet provides detailed, smooth high-frequency response for premium audio performance.
• 70V/100V Transformer Included: Supports distributed audio system integration alongside direct low-impedance operation.
• Paintable Magnetic Grille: Full-face bezel-less magnetic grille with safety tether enables seamless integration into high-end architectural environments.
• Plenum-Rated: UL 1480A and UL 2043 listed for safe deployment in air-handling ceiling plenum spaces.

Technical Specifications

• LF Driver: 130 mm (5.25 in) woofer
• HF Driver: 20 mm (0.75 in) soft-dome tweeter, neodymium magnet
• Frequency Range: 55 Hz - 20 kHz
• Coverage Technology: RBI Radiation Boundary Integrator
• Transformer: 70V/100V multi-tap
• Sold As: Pair
• IP Rating: IP33 per EN/IEC 60529
• Safety Certifications: UL 1480A, UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No. 205
• Operating Temperature: 0 deg C to 45 deg C

What's Included

• (2) JBL Control 445C/T Ceiling Loudspeakers
• Mounting Hardware
• White Round Paintable Magnetic Grilles
