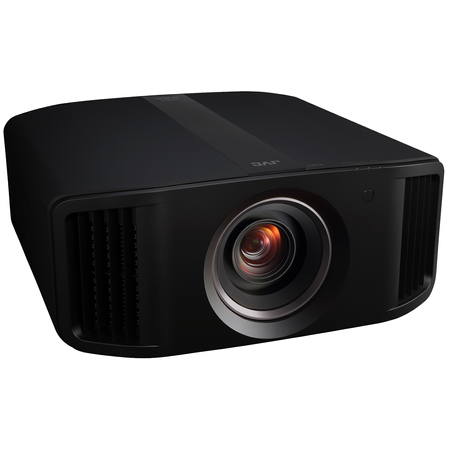

JVC DLA-RS3200 Reference D-ILA Laser 8K e-shift 2,700 Lumen Projector
In stock SKU: JVC-DLARS3200

EchoForge

JVC DLA-RS3200 Reference D-ILA Laser 8K e-shift 2,700 Lumen Projector

$14,249.96

JVC DLA-RS3200 Reference D-ILA Laser 8K e-shift 2,700 Lumen ProjectorThe JVC DLA-RS3200 is a Reference D-ILA laser projector designed for dedicated home theaters that require high brightness and accurate 8K-class imaging. At 2,700 lumens, it is well suited to larger rooms with...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

JVC DLA-RS3200 Reference D-ILA Laser 8K e-shift 2,700 Lumen Projector

The JVC DLA-RS3200 is a Reference D-ILA laser projector designed for dedicated home theaters that require high brightness and accurate 8K-class imaging. At 2,700 lumens, it is well suited to larger rooms with partial light control where consistent, high-quality output is essential across a range of content.

The RS3200 handles 8K/60 and 4K/120 sources through 8K e-shift processing and achieves a native contrast ratio of 100,000:1. Its 1.43-to-2.92:1 throw ratio with 80% vertical and 37% horizontal lens shift provides installation flexibility, and a maximum image size of 200 inches suits purpose-built screening rooms. Integration is supported via RS232, LAN, 12V trigger, and 3D sync, with a universal 110-240V power supply.

Key Features

  • 2,700-lumen D-ILA laser light source
  • 8K/60 and 4K/120 via 8K e-shift processing
  • 100,000:1 native contrast ratio with infinite dynamic contrast
  • 1.43-to-2.92:1 throw ratio with 80% vertical / 37% horizontal lens shift
  • Maximum image size up to 200 inches
  • RS232, LAN, 12V trigger, and 3D sync ports
  • Universal 110-240V power supply

Specifications

  • Power Consumption: 110 v 4.5 amps
  • Power Supply: 110-240
  • IR Receivers: internal
  • 12V Trigger: yes
  • Connectors: HDMI, 3 pin power, Lan USB, RS232, 3d sync, 12v 3.5mm mono
  • Contrast Ratio: 100,000:1 Native. Infinite Dynamic
  • Dimensions (W x H x D): 26 1/4x16 15/32x25 7/16
  • Features: Laser, HDR,8K,4K120 High Contrast
  • IR Inputs: receiving port only
  • Weight: 62.3
  • Lens Shift: 80% Vert 37% Hor
  • Lightsource: Laser
  • Lumens: 2,700
  • Maximum Image Size: 200 in dia.
  • Throw Ratio: 1.43 to 2.92
  • Zoom Ratio: 1.43 to 2.92
  • Aspect Ratio: 17:9
  • Inputs: 2 HDMI
  • Supported Resolutions: All
