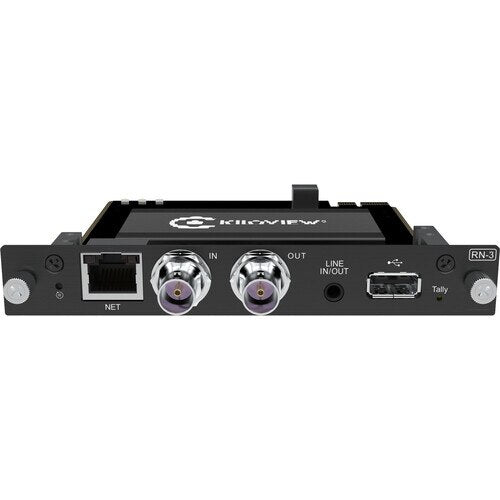

Kiloview RN-3 3G SDI Full NDI Encoding/Decoding Card

Kiloview RN-3 3G SDI Full NDI Encoding/Decoding Card

The Kiloview RN-3 is a bidirectional 3G-SDI and Full NDI converter card that encodes SDI sources to NDI or decodes NDI streams back to SDI. Designed to fit the Kiloview Cradle rackmount frame, it serves broadcast and live production environments moving between baseband and IP video without dedicating a separate box to each direction.

Connectivity includes a 3G-SDI BNC input with loop output, an RJ45 port carrying NDI in or out, a USB-C port, and 3.5 mm analog audio input and output. The card handles SDI video at 1080p up to 60 fps in both directions and carries a large integrated tally light for on-air status in multi-camera setups.

Key Features

• Bidirectional conversion between 3G-SDI and Full NDI
• Handles SDI 1080p video at up to 60 fps in and out
• 3G-SDI loop output on BNC for downstream gear
• 3.5 mm analog audio line input and output
• RJ45 NDI network port plus USB-C connection
• Large integrated tally light for live production
• Card format fits the Kiloview Cradle rackmount frame

Specifications

• Video Inputs: 1x BNC (3G-SDI)
• Audio Inputs: 1x 1/8" / 3.5 mm TRS
• Video Outputs: 1x BNC (3G-SDI) (Loop Output)
• Audio Outputs: 1x 1/8" / 3.5 mm TS
• Other I/O: 1x RJ45 NDI Input/Output, 1x USB-C
• Expansion Slots : No
• Input Video Format: SDI 1080p up to 60 fps
• Output Video Format: SDI 1080p up to 60 fps
• HDR Support: Not Specified by Manufacturer
• Tally Light: Yes
• Wireless: No
• Rack Form Factor: No
• Package Weight: 0.785 lb
• Box Dimensions (LxWxH): 8.6 x 6.4 x 1.9"
• Inputs/Outputs
• Format Support
• Standards
• Hardware
• General
• Packaging Info

What's Included

• RN-3 video encoding/decoding card /1PC
• Quick start guide /1PC
• Certificate/Warranty card /1PC
