Kramer 676T 4K60 4:4:4 HDMI and RS-232 Transmitter over Ultra-Reach MM/SM Fiber Optic
In stock SKU: KRMR-676T-50067690

EchoForge

Kramer 676T 4K60 4:4:4 HDMI and RS-232 Transmitter over Ultra-Reach MM/SM Fiber Optic

$615.00

Kramer 676T 4K60 4:4:4 HDMI and RS-232 Transmitter over Ultra-Reach MM/SM Fiber Optic The Kramer 676T is a high-performance fiber-optic transmitter designed for ultra‑long extension of HDMI (up to 4K @ 60 Hz, 4:4:4) and RS‑232 signals. It accepts HDMI and serial...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

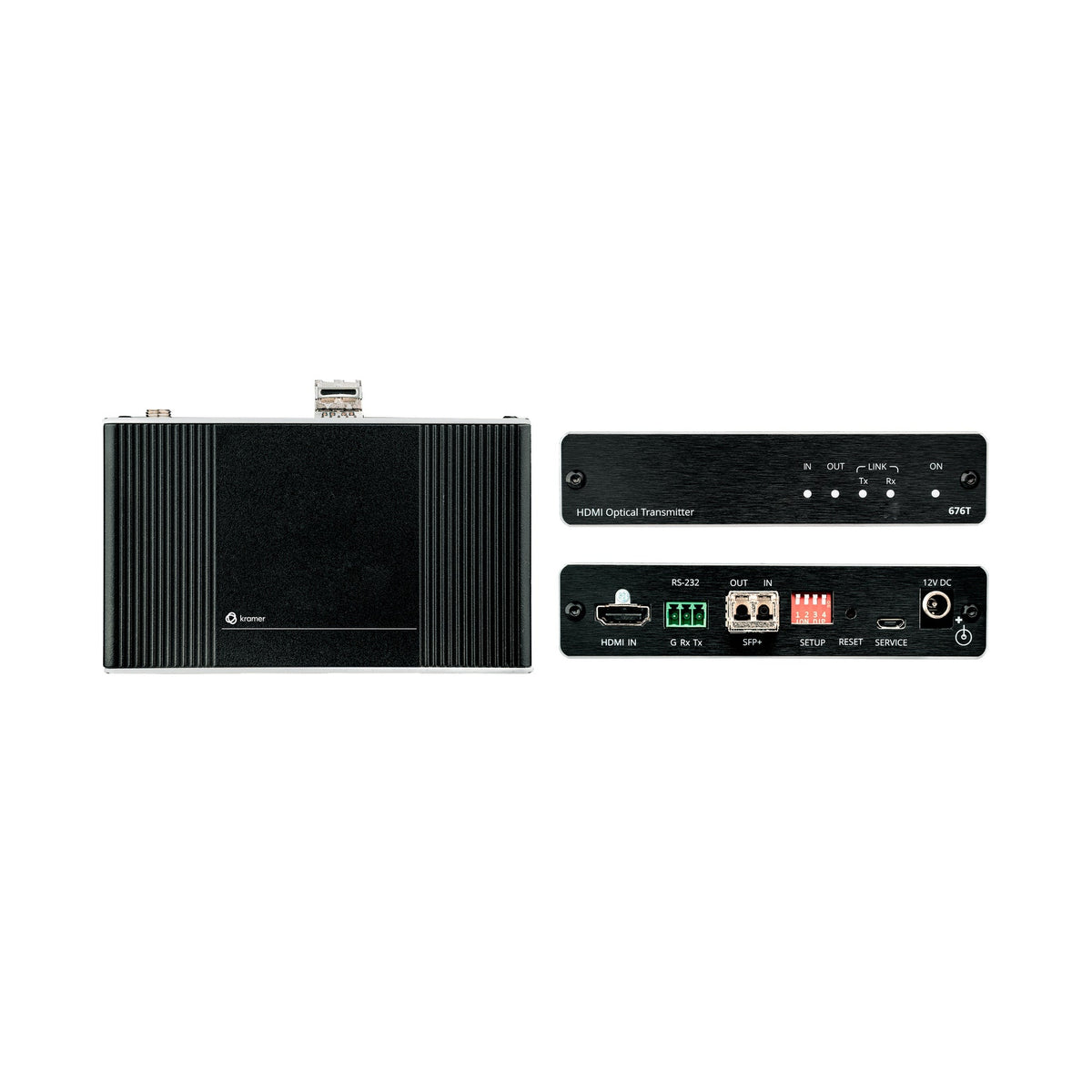

Kramer 676T 4K60 4:4:4 HDMI and RS-232 Transmitter over Ultra-Reach MM/SM Fiber Optic

The Kramer 676T is a high-performance fiber-optic transmitter designed for ultra‑long extension of HDMI (up to 4K @ 60 Hz, 4:4:4) and RS‑232 signals. It accepts HDMI and serial input, converts them into an optical signal, and transmits them over multimode or single-mode fiber with near-zero latency. Ideal for government, medical, rental, staging, and large-scale AV systems.

Equipped with a multi-mode SFP+ (single-mode optional), it supports HDCP 2.2, HDMI 2.0, LPCM 7.1, Dolby TrueHD, DTS‑HD, CEC-based power saving, and Kramer’s I‑EDIDPro™ for seamless EDID management. Compact, fanless aluminum chassis is rack-mountable.

Key Features

  • Resolution: Up to 4096×2160 @ 60Hz (4:4:4)
  • Bandwidth: 18 Gbps (HDMI 2.0, 6 Gbps per channel)
  • Fiber: LC‑connected multimode (incl.) or single-mode (up to 33 km)
  • SFP+ Module: Kramer-certified 10 Gbps IEEE 802.3ae
  • RS‑232: Bidirectional via 3‑pin terminal block
  • CEC Power Control: Auto power on/off linked devices
  • I‑EDIDPro™: Auto EDID management for plug-and-play
  • Indicators: LEDs for source, sink, optical link, and power
  • Rack Mounting: DigiTOOLS® - side-by-side 3 units in 1U
  • Cooling: Passive convection, aluminum chassis

Technical Specifications

  • Dimensions: 4.72″ × 2.81″ × 0.96″ (12.00 × 7.15 × 2.44 cm)
  • Weight: 0.5 lb (0.2 kg)
  • Video Bandwidth: 18 Gbps
  • Max Resolution: 4096×2160 @ 60 Hz (4:4:4)
  • Compliance: HDMI 2.0, HDCP 2.2, LPCM 7.1, Dolby TrueHD, DTS‑HD
  • Fiber Reach: OM3 MM: 3 km; OS1 SM: 33 km
  • SFP+ Standards: IEEE 802.3ae; Class 1 Laser
  • RS‑232 Baud Rate: 300-115,200
  • Power Input: 12 V DC, 2 A (480 mA typical)
  • Operating Temp: 0 °C to +40 °C; Storage: -40 °C to +70 °C
  • Humidity: 10-90% RH, non-condensing
  • Regulatory: CE, UL, RoHS, WEEE, EMC EN55022/24, IEC60825‑1/2, IEC62368‑1

What's Included

  • 676T transmitter unit
  • Multimode 10 Gbps SFP+ transceiver
  • 12 V DC power adapter + cord
  • Mounting bracket set
