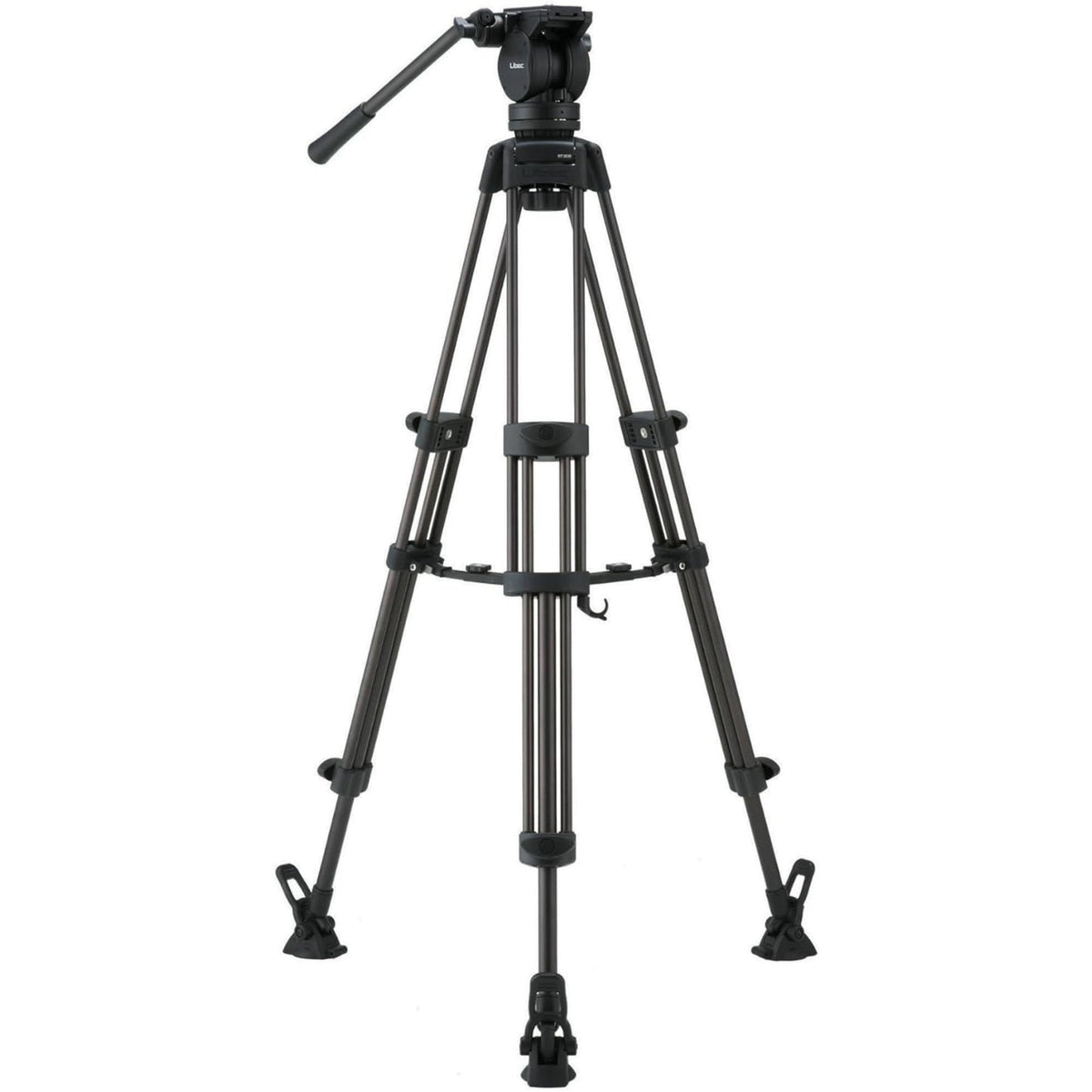

Libec LX-7RM Tripod System with Mid-Level Spreader, 75mm

Libec LX-7RM Tripod System with Mid-Level Spreader — 75mm Fluid Head for Professional Video

The Libec LX-7RM Tripod System is a complete professional video support solution built around the LX7 pan-and-tilt fluid head and the upgraded RT30RB aluminum tripod, with a mid-level spreader included for enhanced outdoor stability. Rated to handle payloads up to 17.5 lb (8 kg), it supports DSLRs, mirrorless cameras, and professional camcorders through a height range of 32 to 65 inches — making it equally capable in the studio and in the field.

For videographers comparing the best 75mm fluid head tripod for outdoor video or on-location ENG work, the LX-7RM addresses a key pain point: ground stability on uneven surfaces. The centered mid-level spreader locks leg spread and keeps the system rigid across terrain that would destabilize a floor-spreader-only configuration. Three accessory ports on the RT30RB legs let operators mount monitors, lights, or other rigging accessories without adding a separate clamp system, making this an efficient choice for run-and-gun production and mobile crew setups. A built-in carry handle rounds out the field-ready design.

The LX7 fluid head delivers fixed counterbalance and drag — engineered to deliver consistent, repeatable motion that suits broadcast, documentary, and event video workflows. A sliding quick release plate with a ±1.6" (±40mm) range enables rapid camera balance adjustments via a 1/4"-20 screw (with spare 3/8"-16). Additional 1/4"-20 and 3/8"-16 accessory threads extend mounting flexibility for on-camera accessories. The LX-7RM operates reliably across a temperature range of -4°F to +140°F (-20°C to +60°C), meeting the environmental demands of outdoor broadcast and field production.

Key Features of the Libec LX-7RM Professional Tripod System

• Mid-Level Spreader for Outdoor Stability: Keeps leg spread locked and consistent on uneven terrain, eliminating the drift and instability common with floor-only spreader designs during exterior shoots.
• LX7 75mm Pan-and-Tilt Fluid Head: Delivers smooth, controlled movement across a full +90°/−80° tilt range with fixed drag and counterbalance — ideal for broadcast and documentary-style motion tracking.
• RT30RB Reinforced Aluminum Tripod: The latest-generation RT30RB legs provide exceptional rigidity at a portable weight, handling payloads up to 17.5 lb to accommodate DSLRs, mirrorless rigs, and professional camcorders.
• Three Accessory Mounting Ports: Integrated ports on the tripod legs allow monitors, LED lights, or other production gear to mount directly to the support system, reducing the need for additional clamps or adapters.
• Sliding Quick Release Plate: A ±1.6" sliding range enables fast camera balance optimization without tools, using a 1/4"-20 attachment screw with video pin and a spare 3/8"-16 screw included.
• Built-In Carry Handle: Integrated directly into the RT30RB tripod body for one-handed transport between setups, streamlining movement on busy production days.
• Wide Operating Temperature Range: Rated from -4°F to +140°F (-20°C to +60°C), this system handles cold exterior environments and warm studio or stage conditions without performance compromise.

Technical Specifications

• Head Type: LX7 Pan-and-Tilt Fluid Head
• Tripod Model: RT30RB Aluminum
• Ball Diameter: 75mm (2.95")
• Payload Capacity: 17.5 lb (8 kg)
• Leg Sections: 2-Stage
• Maximum Height: 65" (166 cm)
• Minimum Height: 32" (81 cm)
• Tilt Range: +90° / −80°
• Pan Range: 360°
• Counterbalance: Fixed
• Tilt Drag: Fixed
• Spreader Type: Mid-Level
• Camera Plate: Sliding Quick Release
• Sliding Range: ±1.6" (±40mm)
• Plate Attachment Screw: 1/4"-20 with Video Pin
• Spare Screw: 3/8"-16
• Accessory Threads: 1/4"-20 and 3/8"-16 (multiple ports)
• Accessory Mounting Ports: 3
• Feet Type: Rubber (Large)
• Leveling: Bubble Level Included
• Material: Aluminum
• Operating Temperature: -4°F to +140°F (-20°C to +60°C)
• System Weight: 11.4 lb (5.2 kg)

What's Included

• Libec LX7 Pan-and-Tilt Fluid Head
• RT30RB Aluminum Tripod Legs
• Mid-Level Spreader
• Sliding Quick Release Plate
• Pan Handle
• Large Rubber Feet
• Carrying Case
