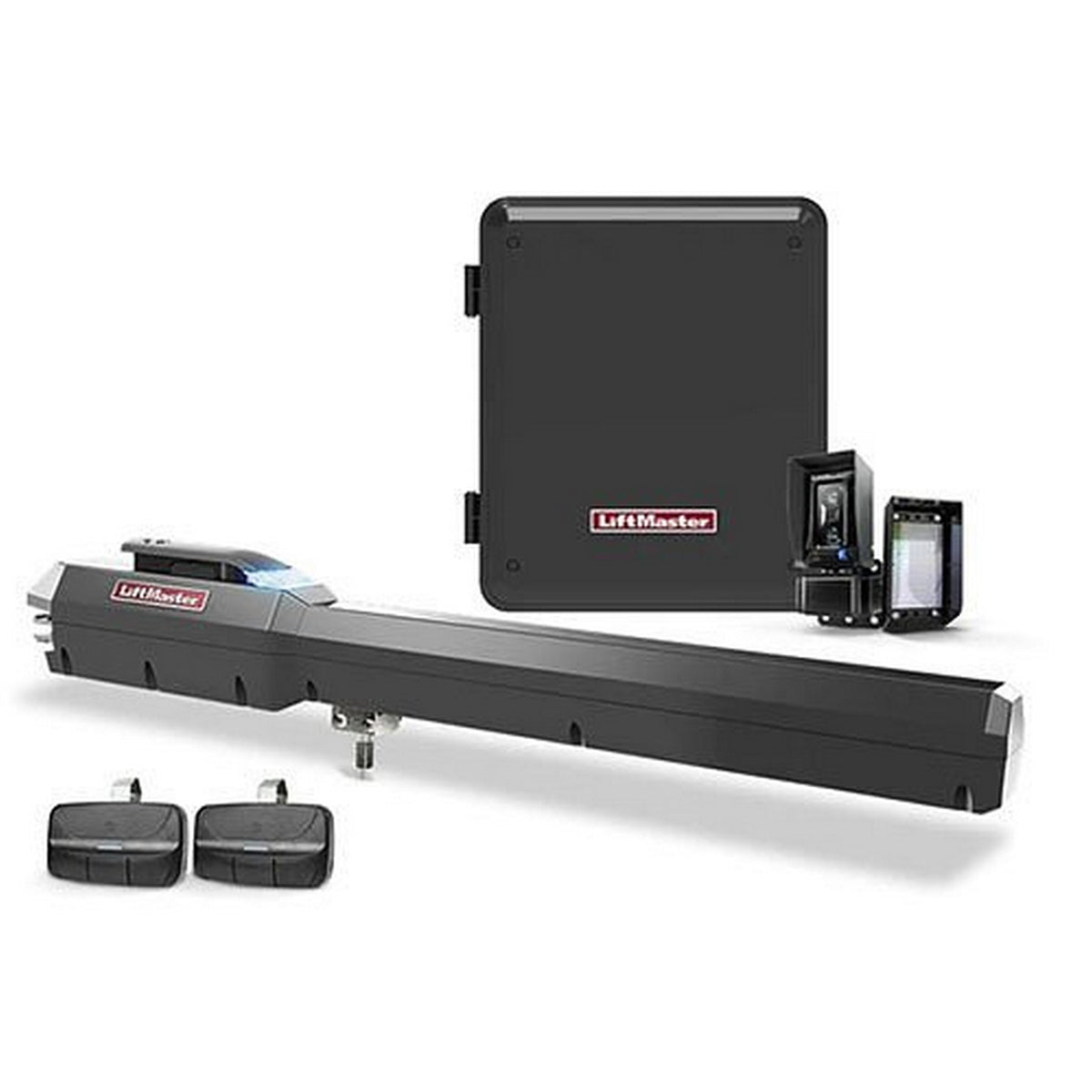

LiftMaster LA500PKGUL 24VDC Swing Gate Opener

LiftMaster LA500PKGUL 24VDC Swing Gate Opener

LiftMaster LA500PKGUL is a 24VDC linear gate actuator designed for residential and light commercial swing gate applications. It enables automated gate opening and closing for property owners and facility managers, supporting controlled perimeter access workflows. This makes it ideal for environments where reliable, secure, and code compliant gate operation is critical.

The actuator uses a continuous duty DC motor and an all metal gear drive to deliver consistent performance under demanding conditions. It integrates safety monitoring, synchronized closing, and programmable control features through compatible LiftMaster control systems.

Designed for long term durability, the LA500PKGUL supports battery backup operation, surge protection, and monitored safety devices. It is suited for properties that require dependable access control, smooth gate movement, and compliance with UL 325 safety standards.

Key Features

• 24VDC Continuous Duty Motor: Designed for demanding residential and light commercial swing gate applications
• Battery Backup Operation: Provides standby power for continued access during power outages
• Security+ 2.0 Radio Receiver: Uses encrypted tri-band signal to reduce interference and extend operating range
• Synchronized Closing: Coordinates dual gate operation for consistent opening and closing
• Monitored Safety Inputs: Supports photo eyes and entrapment protection devices for UL 325 compliance

Technical Specifications

Motor Type
24VDC Continuous Duty Motor

Operator Duty Rating
300 Cycles per Day

Gear Drive
All Metal Gear Drive

Power Input
Full Time AC Run Operation 115V or 230V Single Phase

Accessory Power Output
24VDC 500mA Output

Housing Material
Commercial Duty Cast Aluminum

UL Usage Classification
Class I, II, III and IV

Gate Travel Speed
Opens 90° in 15 to 17 Seconds

Operating Temperature
-4°F (-20°C) to 140°F (60°C)

Radio Frequency
Tri-Band 310 MHz, 315 MHz, 390 MHz

Control Compatibility
HOMELINK Compatible Version 4.0 or Higher
