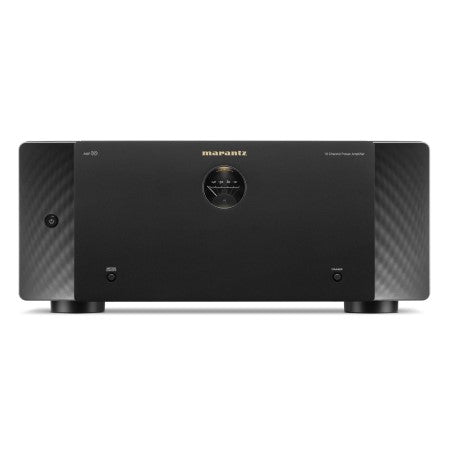

Marantz Power AMP 10 | 200W x 16 Channels

Marantz Power AMP 10 | 200W x 16 Channels

The Marantz AMP10 is a 16-channel power amplifier intended for large-scale distributed audio and custom home theater installations where a high channel count and substantial per-channel output are required from a single chassis. Rated at 200 watts per channel into 8 ohms, it is designed for CI integrators building multi-room or multi-zone systems that demand scalable amplification.

All 16 channels accept balanced and unbalanced inputs via a selector switch, and each channel terminates through SPKT-1+ binding posts. Output in BTL mode reaches 400 watts into 4 ohms, and power consumption is rated at 500 watts. IR output is included for integration, and the 5U chassis measures 17.4 x 7.4 x 19.2 inches at a weight of 43.7 lb.

Key Features

• 16-channel amplifier at 200W per channel into 8 ohms
• BTL mode available for 400W output into 4 ohms
• Balanced and unbalanced inputs across all 16 channels
• SPKT-1+ binding post speaker terminals (x16)
• IR output for system integration
• 5U rack chassis at 17.4 x 7.4 x 19.2 inches
• 500W power consumption

Specifications

• Rack Spacing: 5U
• Channels: 16-Channel
• Watts Per Channel: 101-200W
• Power Output @ 8 ohm: 200 W (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL400 W (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal235 W (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal
• Inputs: Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)Speaker Terminal: SPKT-1+ (x16)
• RS232 Control: No
• Limited to CI Dealers: Yes
• Power Consumption: 500W
• IR Outputs: Yes
• IR Inputs: No
• Dimensions (W x H x D): 17.4" x 7.4" x 19.2"
• Weight: 43.7 lb
