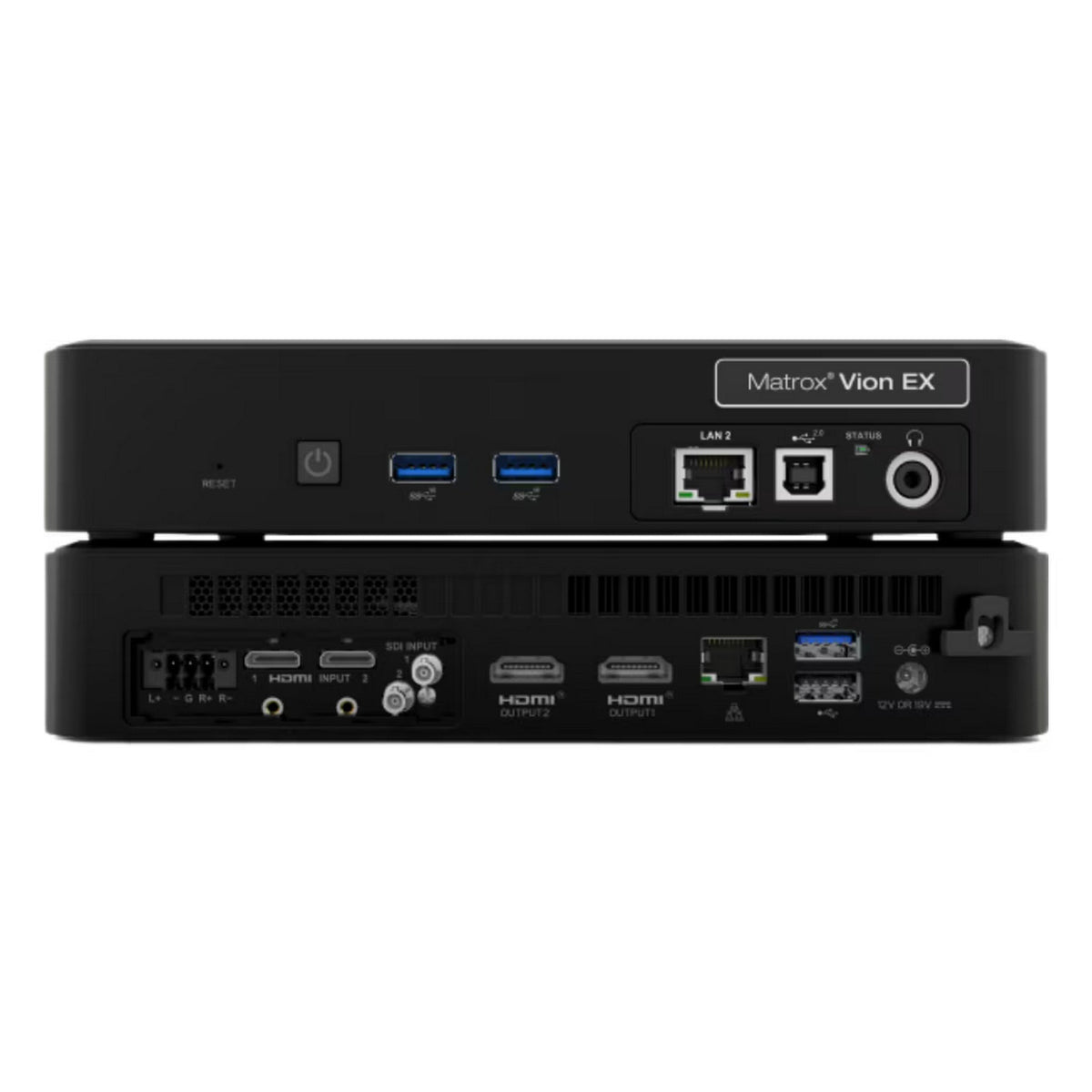

Matrox VION-EXY-NA IP Video Bridge and Media Processing Gateway

Matrox VION-EXY-NA IP Video Bridge and Media Processing Gateway

Matrox Vion is an IP video gateway designed for professional media processing and conversion workflows. It enables multi-channel encoding, decoding, transcoding, and cross-conversion of IP and baseband video signals for broadcast and production environments. This makes it ideal for live production, collaboration, and IP-based routing scenarios where format flexibility is critical.

The system operates as a compact, multi-channel platform supporting a wide range of IP video standards and codecs. It processes video and audio streams across network and baseband inputs while managing protocol, color space, and format conversions. Network-based control enables configuration, monitoring, and signal routing without direct hardware access.

This design supports scalable IP video infrastructures in local or cloud-based workflows. It allows concurrent processing of multiple streams while maintaining signal fidelity. Integration with open standards enables interoperability across diverse production systems.

Key Features

• Multi-Channel IP Video Gateway: Supports encoding, decoding, transcoding, and cross-conversion
• Broad Codec Support: Handles H.264, HEVC, JPEG XS, and NDI video formats
• Open Standards Compatibility: Supports IPMX and SMPTE ST 2110-22 workflows
• Baseband and IP Inputs: Accepts HDMI, SDI, and network-based video sources
• High Color Precision: Supports 4:2:2 and 4:4:4 10-bit video processing

Technical Specifications

Product Type
IP video gateway for media processing and conversion

Video Processing Functions
Encoding
Decoding
Transcoding
Cross-conversion

Supported Codecs
H.264 / MPEG-4 AVC
H.265 / HEVC
JPEG XS
NDI6 SpeedHQ
NDIHX3

Supported Streaming Formats
RTP / RTSP
SRT
MPEG-2 TS
NDI6
NDIHX3
IPMX
SMPTE ST 2110-22

Baseband Video Inputs
2 × mini-HDMI Type C
2 × 12G-SDI via HD-BNC
Maximum two baseband inputs active simultaneously

Baseband Video Outputs
2 × HDMI Type A

Audio Support
8 channels embedded audio per video input
Balanced stereo input via Phoenix connector
Unbalanced audio input and output via 3.5 mm TRS

Network Interfaces
LAN 1: 100 / 1000 Base-T RJ45
LAN 2: 1000 / 2500 Base-T RJ45

USB Interfaces
3 × USB 3.0 Type A
1 × USB 2.0 Type A
1 × USB 2.0 Type B

Video Formats SDI
Up to 4096 × 2160 progressive
YCrCb 4:2:2 10-bit

Video Formats HDMI
Up to 3840 × 2160 progressive
YCrCb 4:2:2 10-bit
sRGB 4:4:4 8 / 10-bit

Audio Interface
Uncompressed audio for IPMX, ST 2110, and NDI
AAC LC / HE support

Power Requirements
Input voltage: 120–240 V
Power supply: 120 W
Power input: 19 V up to 5.5 A

Operating Conditions
Temperature range: 0 to 35 °C

Dimensions
8.27" × 6.89" × 1.65"

Weight
3.3 lb (1.5 kg)

What's in the Box

(1) Matrox Vion IP Video Gateway
(1) Power Supply
(2) HD-BNC to BNC Adapter Cables
Mounting Plate with Screws
