Middle Atlantic NEXSYS 1500VA Online UPS with RackLink Bank Outlet Control
Middle Atlantic NEXSYS 1500VA Online UPS with RackLink Bank Outlet Control The Middle Atlantic NEXSYS UPX-RLNK-OL1500R-2 is a double-conversion online UPS engineered specifically for professional AV systems that demand continuous, clean power with no transfer time. Delivering pure sine wave output at...
PRODUCT DETAILS
Everything you need to know.

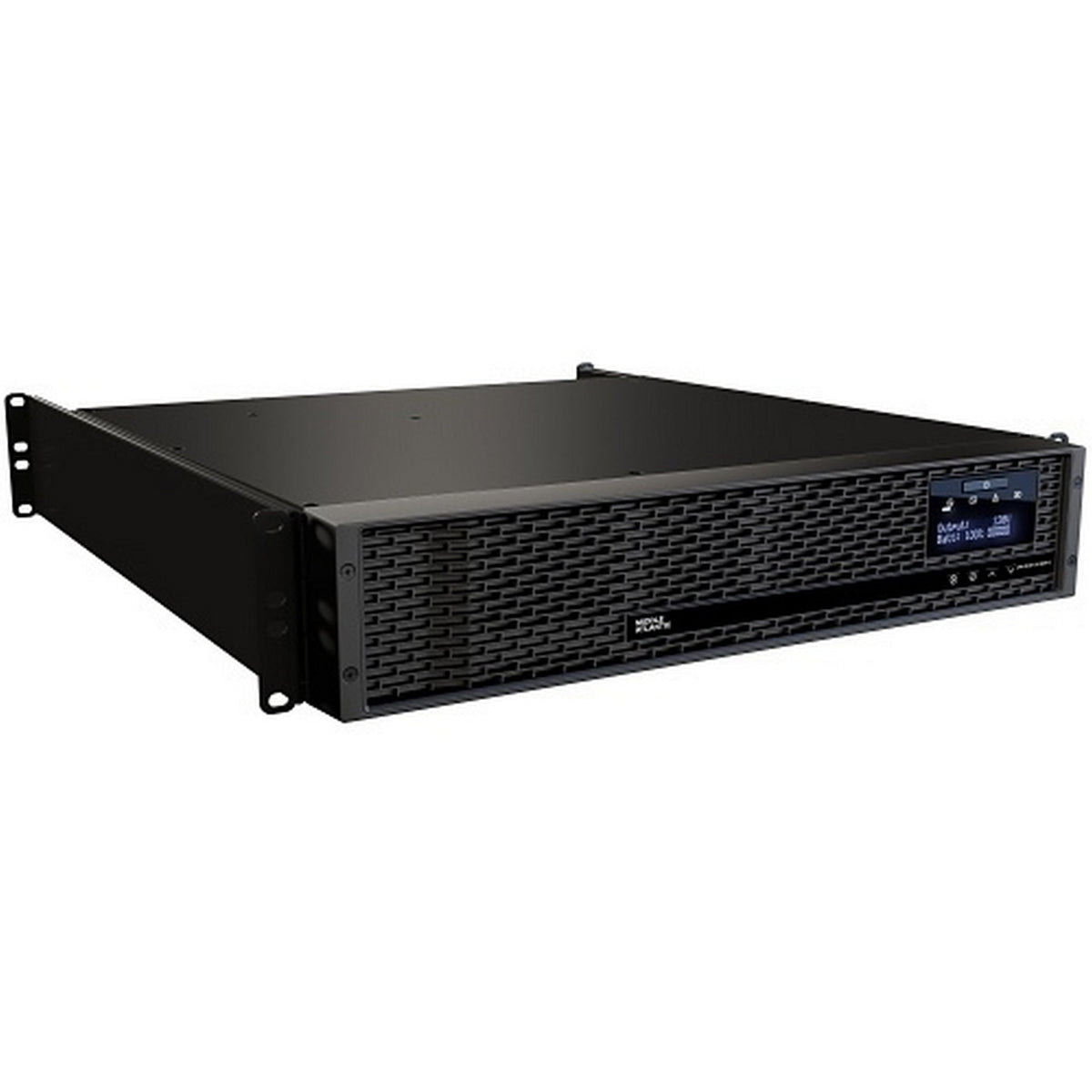

Middle Atlantic NEXSYS 1500VA Online UPS with RackLink Bank Outlet Control
The Middle Atlantic NEXSYS UPX-RLNK-OL1500R-2 is a double-conversion online UPS engineered specifically for professional AV systems that demand continuous, clean power with no transfer time. Delivering pure sine wave output at all times, it ensures maximum protection for sensitive equipment and mission-critical installations.
Designed for fast, efficient deployment, this UPS ships fully assembled with the battery already connected and rack ears pre-installed with 4-post mounting brackets. Integrated RackLink™ Cloud connectivity and the included network card provide remote monitoring and management, while two independently controlled outlet banks allow flexible power control across connected devices.
Ideal for AV racks in corporate, education, hospitality, and managed-service environments, the NEXSYS 1500VA Online UPS combines premium AV-grade components, zero transfer time, and hot-swappable battery service to minimize downtime and simplify long-term maintenance.
Key Features
- Double-conversion online UPS with zero transfer time
- Pure sine wave output for sensitive AV and IT equipment
- 1500VA / 1350W capacity with 15 Amp input
- 8 NEMA 5-15R outlets with bank-level control
- Two outlet banks with four outlets each
- RackLink™ Cloud enabled for remote monitoring and management
- Includes network card for out-of-box connectivity
- Hot-swappable, front-access battery for easy service
- Pre-installed rack ears with 4-post mounting brackets
- ENERGY STAR® certified — the only online UPS in the AV market with this certification
Technical Specifications
UPS TopologyDouble Conversion Online
Load Capacity
1500 VA / 1350 W
Input Voltage
120 VAC
Output Voltage
110 V AC / 120 V AC / 127 V AC
Input Current
15 Amp
Input Plug Type
NEMA 5-15P
Output Receptacles
8 × NEMA 5-15R (2 Controlled Banks)
Cord Length
6 ft (1.8 m)
Network Management
Network Card (RackLink Compatible)
Battery
Hot Swappable / Replaceable
Operating Temperature Range
32°F to 104°F (0°C to 40°C)
Color
Black
What’s in the Box
(1) Middle Atlantic NEXSYS 1500VA Rack-Mount Online UPS(1) Network Card
(1) 6 ft (1.8 m) SignalSAFE™ IEC Power Cord
