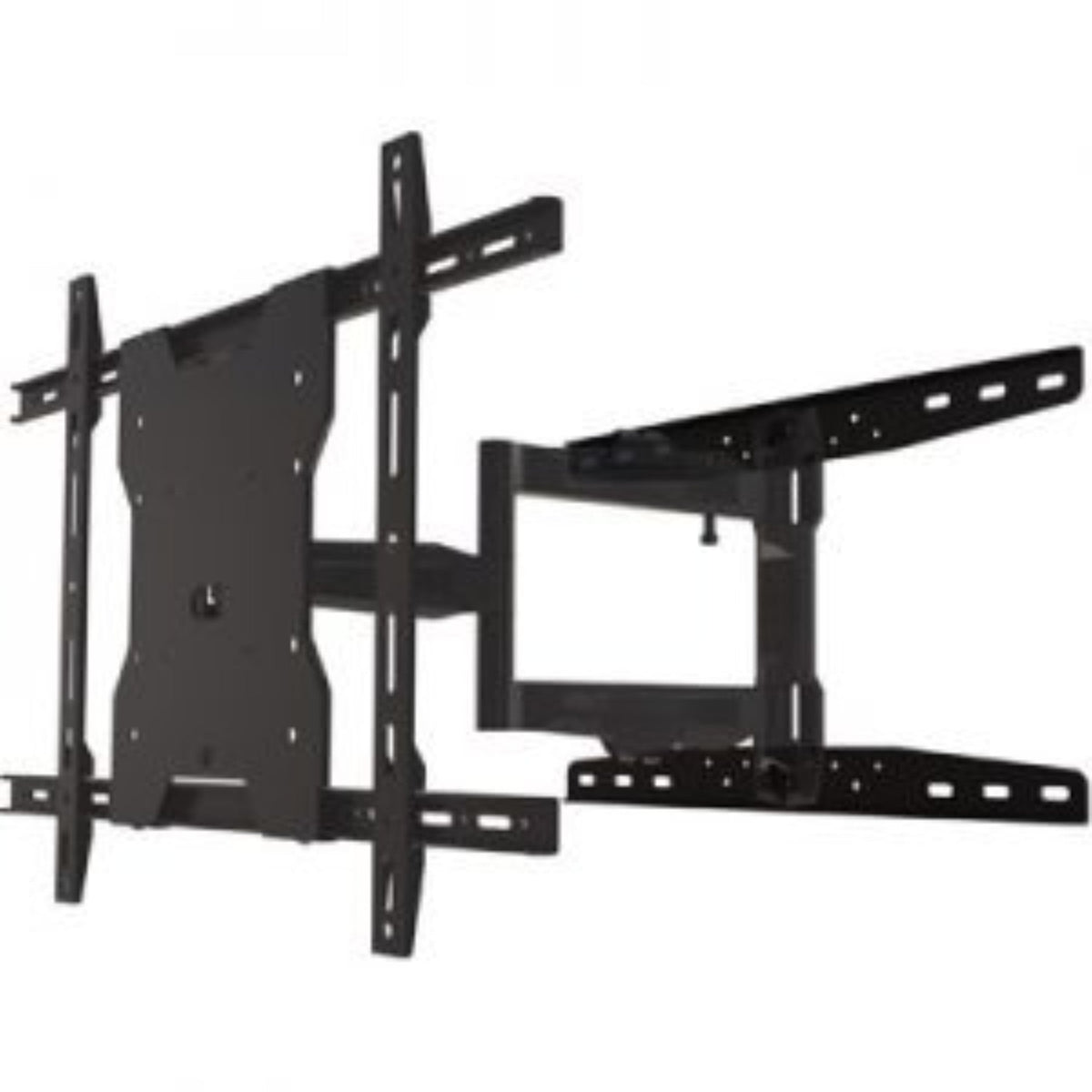

Mustang MPAUW-L64U Ultra-Flat Articulating TV Wall Mount

Mustang Professional MPAUW-L64U Ultra-Flat Articulating TV Wall Mount

Product Overview

The Mustang Professional MPAUW-L64U is an ultra-flat, full motion articulating wall mount designed for 13"–65" TVs with an 80 lb load rating. Built for clean installs and flexible viewing, it supports VESA patterns up to 600 x 400mm and retracts to a low-profile position close to the wall when not extended.

This mount comes pre-assembled for faster installation and features a built-in level to help ensure accurate placement. A pre-tensioned tilt mechanism provides up to +15° of adjustment without needing to continuously re-tighten a tension knob, helping reduce glare and improve viewing comfort.

For professional-grade durability, the mount is fabricated from high-grade aluminum and cold rolled steel with an epoxy powder coat finish. It is designed to install on a single wood stud or masonry surfaces, and can also be used on metal studs when paired with the required toggle bolt pack.

Key Features

• Ultra-Flat Retraction: Sits approximately 1.19" from the wall when retracted for a low-profile look.
• Full Motion Positioning: Uses 3 pivot joints with up to 180° pivot to help dial in viewing angles (may be limited by display width).
• Quick Installation Setup: Ships pre-assembled and includes a built-in level for efficient alignment.
• Simplified Tilt Adjustment: Pre-tensioned tilt provides up to +15° adjustment without ongoing tension knob readjustment.
• Post-Install Fine Tuning: Supports post-installation leveling without requiring tools and includes 3° roll adjustment.
• Cleaner Cable Routing: Integrated cable management supports a neat, professional finish.
• Wide VESA Fit: Supports mounting patterns up to 600 x 400mm for broad display compatibility.
• Durable Metal Construction: Built from aluminum and high-grade cold rolled steel with epoxy powder coat finish.

Technical Specifications

• Model: MPAUW-L64U
• Display Size Guide: 13" – 65"
• Load Rating: 80 lb (36 kg)
• Max VESA Pattern: 600 x 400mm
• Min Mounting Pattern: 100 x 100mm
• Pivot: 180°
• Roll: 3°
• Tilt: Up to +15°
• Depth From Wall (Retracted): 1.19" (30mm)
• Max Extension: 20" (508mm)
• Installation Surface: Single wood stud or masonry; metal studs supported with MPHT-3 toggle bolt pack (required)
• Construction: High-grade aluminum and cold rolled steel
• Finish: Epoxy powder coat
• Color: Black
• Product Weight: 16.8 lb (7.6 kg)
• Warranty: 5 year limited

What's Included

• Pre-sorted hardware pack (high-grade fasteners)
