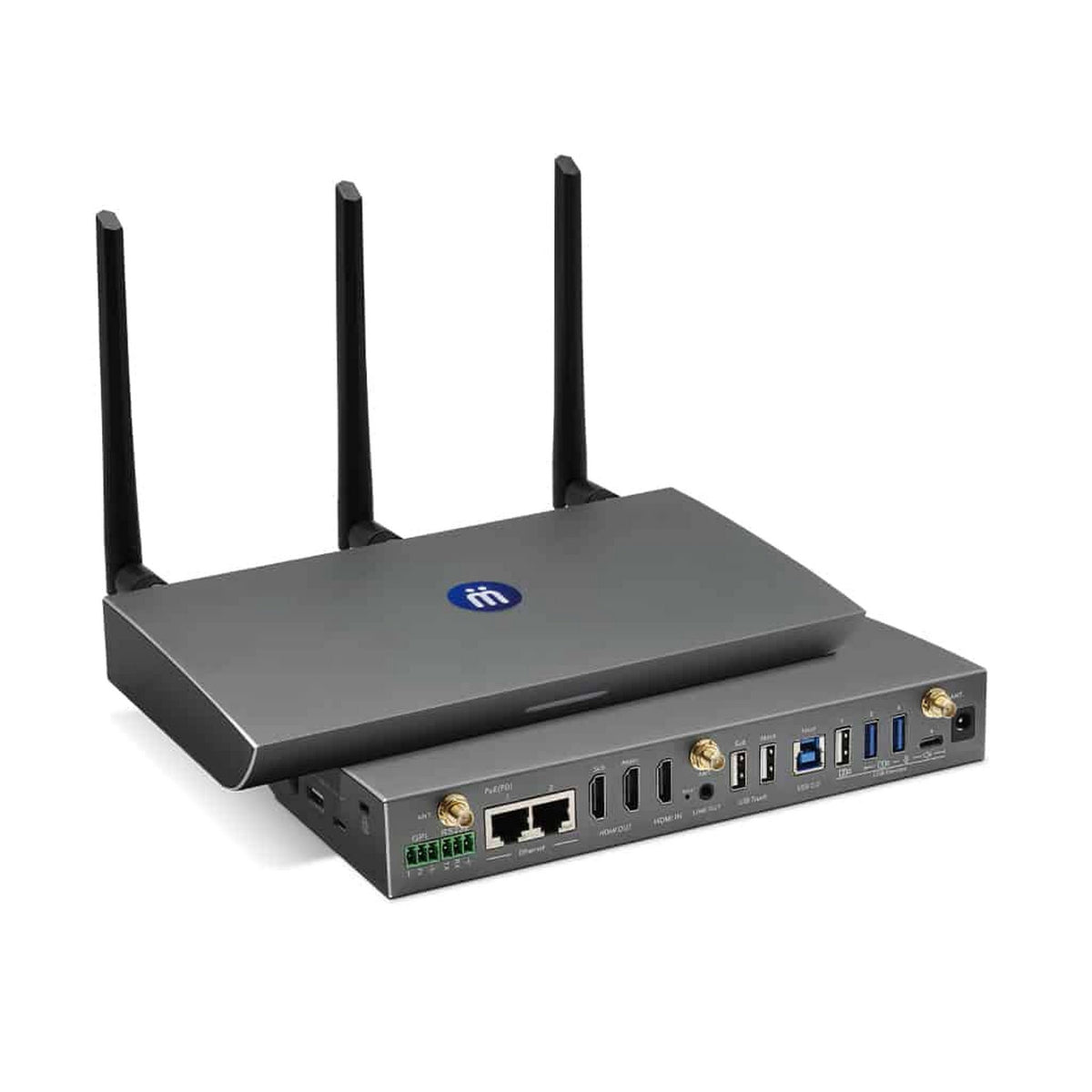

MuxLab 500825 MuxMeet Share Base-3

MuxLab 500825 MuxMeet Share Base-3

MuxLab 500825 is a wireless conference room collaboration system designed for hybrid meeting environments. It enables wireless content sharing and device connectivity between laptops and in-room AV equipment for collaborative workflows. This makes it ideal for meeting rooms and classrooms where flexible presentation and collaboration are required.

The system supports wireless screen sharing through native protocols and client applications while allowing connection to room cameras, microphones, speakers, and displays. It supports multi-view layouts and dual-screen output for simultaneous content display. Network-based management provides configuration and control through a web interface.

In real-world use, the Share Base-3 supports seamless collaboration between in-room and remote participants without physical cable limitations. Its wireless operation simplifies meeting setup and reduces dependency on adapters. This supports efficient collaboration in professional environments.

Key Features

• Wireless Screen Sharing: Supports wireless content sharing from laptops and compatible devices.
• Dual HDMI Outputs: Enables content sharing from the same or different sources across two displays.
• Multi View Display: Supports simultaneous display of multiple devices in a multi-view layout.
• Native Mirroring Support: Supports Airplay, Miracast, and Chromecast protocols.
• USB Peripheral Sharing: Enables wireless connection between laptops and room USB peripherals.
• Web Based Management: Provides WebGUI configuration and system management.

Technical Specifications

Environment
Custom audio-video systems in a structured cabling environment.

Application
Head-end installations, conference room, interactive teaching

Compatible Product
Muxlab 500880 and 500881

Video Output Resolution
HDMI Main: Up to 3840x2160@60Hz
HDMI Sub: Up to 1920x1080@60Hz

Video Output Capabilities
HDMI Main: HDMI 2.0 or HDCP 2.2
HDMI Sub: HDMI 1.4 or HDCP 1.4

Video Input Resolution
Up to 3840x2160@30Hz

Video Input Capabilities
HDMI 1.4 or HDCP1.4

Audio Input
Airplay
Miracast
Chromecast
Windows or MAC App
WMH
WMC

Transmitter
Up to 16 dongles can be connected simultaneously

Display Windows
Up to 4 plus 14 windows can be displayed (4 mains plus 14 preview control windows)

Wireless Data Rate
Up to 1200Mbps

Transmission Delay
80ms or min

Wireless Protocol
WiFi IEEE 802.11 a or g or n or ac or ax

Frequency Band
2.4GHz and 5GHz

WiFi Antenna
MIMO 2x2
MIMO 1x1

Video Output
2 x HDMI 19 Pin female

Video Input
1 x HDMI 19 Pin female

Analog Audio Output
1 x 3.5mm Stereo female

Ethernet Port
2 x RJ45 Female 1000Mbps

USB Port
2 x USB3.0 A
1 x USB3.0 C
4 x USB2.0 A
1 x USB2.0 C
1 x USB3.0 B

RS232 Port
1 x Phoenix Terminal 3 POS 3.5mm

GPI Port
1 x Phoenix Terminal 3 POS 3.5mm

Power
1 x Barrel Jack 2.1 or 5.5 mm

Power Supply
12VDC or PoE IEEE802.3at

Power Consumption
30.0W Maximum

Temperature
Operating: 0° to 40°C
Storage: -20° to 60°C

Humidity
Up to 90% non-condensing

Dimensions
8.66" x 5.12" x 1.34"
220 mm x 130 mm x 34 mm (excluding antenna)

Weight
2.05 lbs (0.93 kg)

Compliance
Regulatory: FCC, CE, RoHS

Warranty
2 Years
