NETGEAR AV M4250-8G2XF-POE+ Desktop, 10 ports, 220W TPD
In stock SKU: NETG-GSM4210PX100NAS

EchoForge

NETGEAR AV M4250-8G2XF-POE+ Desktop, 10 ports, 220W TPD

$839.99

NETGEAR AV M4250-8G2XF-POE+ Desktop, 10 ports, 220W TPDThe NETGEAR M4250-8G2XF-PoE+ brings the AV Line's switching platform to a compact desktop chassis measuring 210 x 140 x 40mm and weighing 967g. Eight gigabit PoE+ ports and two SFP+ slots handle meeting rooms, podiums,...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

NETGEAR AV M4250-8G2XF-POE+ Desktop, 10 ports, 220W TPD

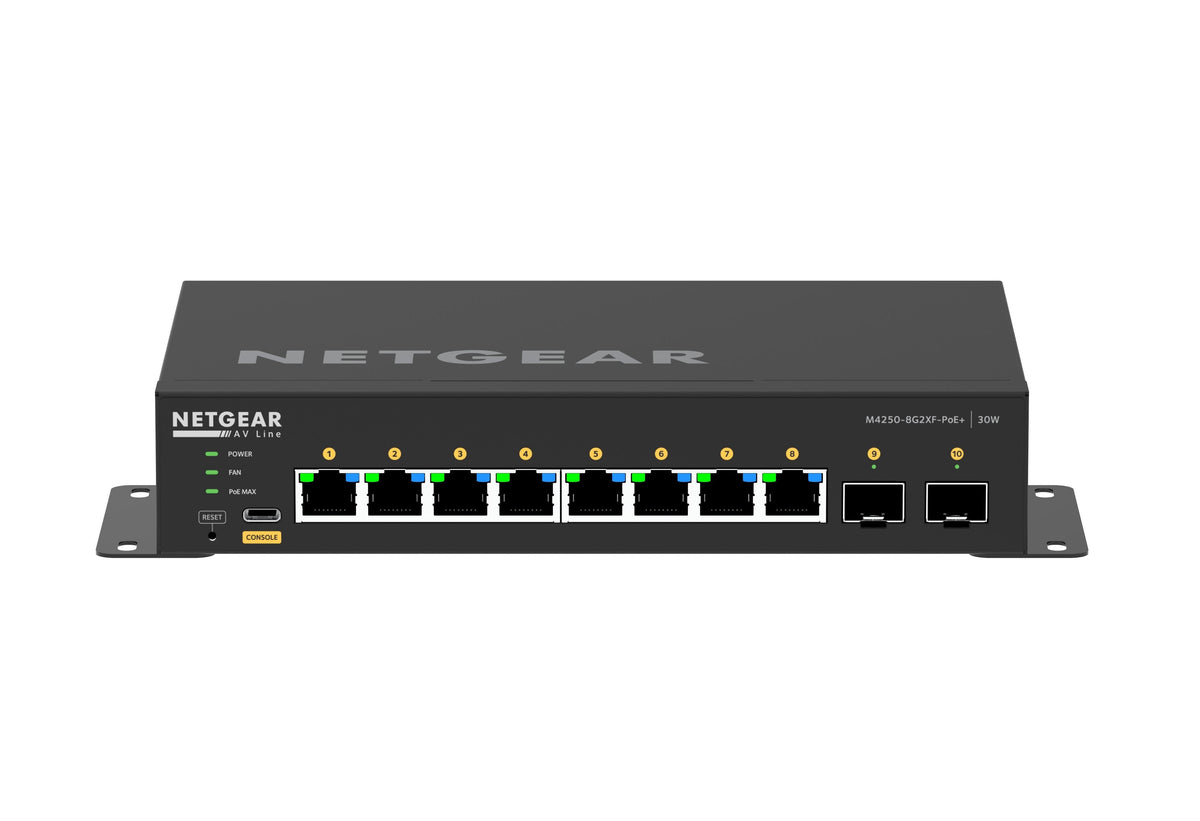

The NETGEAR M4250-8G2XF-PoE+ brings the AV Line's switching platform to a compact desktop chassis measuring 210 x 140 x 40mm and weighing 967g. Eight gigabit PoE+ ports and two SFP+ slots handle meeting rooms, podiums, and small production setups, while included flat brackets allow desktop, under-table, or wall placement.

Powered endpoints draw from a 220W total PoE budget, with each PoE+ port rated for up to 30W. NETGEAR IGMP Plus enables multicast for AV-over-IP out of the box, Auto-Trunk and Auto-LAG connect the unit automatically to other M4250 and M4300 switches, and the simplified AV GUI assigns profiles per port. The switch runs fanless or at a rated 3dB, and November 2023 firmware adds AVB transmission.

Key Features

  • 10 ports: 8x 1G PoE+ and 2x SFP+ in a desktop form factor
  • 220W total PoE budget; each PoE+ port rated up to 30W
  • Compact 210 x 140 x 40mm chassis weighing 967g
  • Flat mounting brackets included for desktop, under-table, or wall installs
  • NETGEAR IGMP Plus multicast with Auto-Trunk and Auto-LAG interconnect
  • AVB transmit added by the November 2023 firmware at no additional cost
  • Fanless operation or 3dB acoustics at 25 degrees C

Specifications

  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 10 (8x 1G PoE+, 2x SFP+)
  • PoE Ports / Budget : 8 PoE+ (30W/port), 220W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • Acoustics : Fanless or 3dB at 25ºC
  • Power Consumption : With PoE: 257.9W/880.47Btu/hr
  • Without PoE : 18.14W/61.93Btu/hr
  • Standby without any port connection : 9.51W/32.47Btu/hr
  • Dimensions (WxDxH) : 210x 140 x 40 mm
  • Weight : 967g (2.13lb)
  • Now with AVB License! New M4250 firmware released in Nov 2023 includes the ability to transmit AVB at no additional cost
  • TECHNICAL SPECS
  • PHYSICAL SPECS

What's Included

  • M4250-8G2XF-PoE+ (GSM4210PX)
  • Power Adapter
  • Power cord(s)
  • Console USB Type-C cable
  • Flat brackets for desktop or wall mounting
  • Rubber footpads for tabletop installation
  • Installation guide
