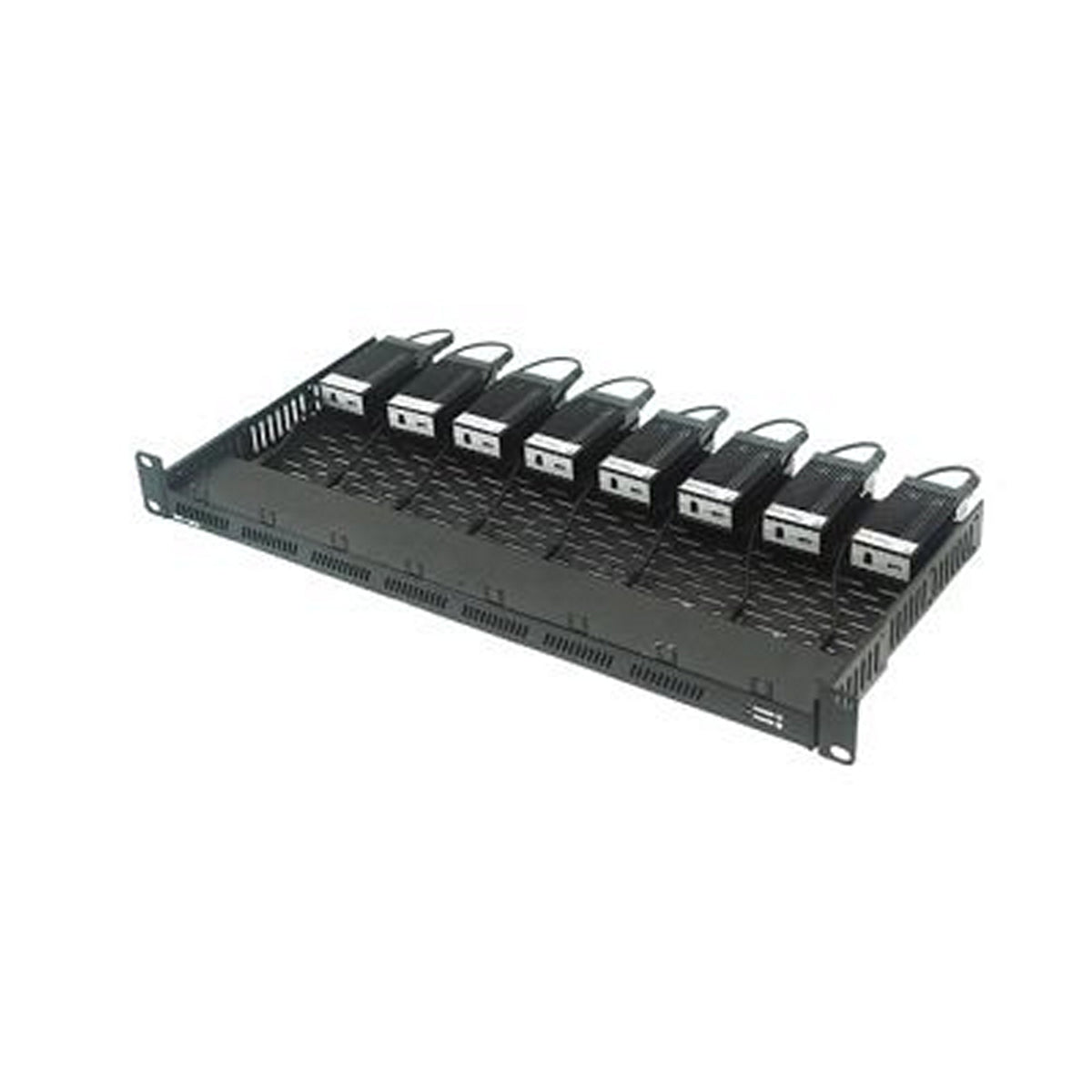

Opticis BR-400 19″ 1RU Power Supply Frame for Optical Modules

Opticis BR-400 19″ 1RU Power Supply Frame for Optical Modules

Power and organize up to eight Opticis optical extender modules in a single 1RU rack space. The BR-400 delivers reliable +12 VDC power via a central bus, supporting both single and redundant dual power supplies with automatic load-sharing to keep critical video links online—even during maintenance or a PSU failure.

Designed for professional AV, broadcast, and medical environments, this compact frame features front-panel LEDs for instant power-status monitoring and versatile rack ears that mount front or rear. With universal AC input and rugged construction, the BR-400 delivers stable, uninterrupted power to your optical extenders.

Key Features

• Rack-Mount Power Frame: 19″ 1RU chassis holds up to eight detachable modules
• Dual-Input Redundancy: Accepts two 100–240 VAC, 50/60 Hz power supplies for load-sharing and backup
• Central Power Bus: +12 V DC, 4.2 A per slot with automatic distribution
• Front-Panel LEDs: Dual indicators for power-supply status and fault detection
• Flexible Mounting: Rack ears install front or rear to suit your rack setup
• Universal AC Input: 100–240 VAC, 50/60 Hz—no step-down transformer needed
• Rugged Design: Steel construction for EMI/RFI shielding and long service life

Technical Specifications

• Dimensions (W × D × H): 482 × 210 × 44 mm (19″ × 8.27″ × 1.73″)
• Module Slots: 8 bays for Opticis optical extenders
• Input Power: 100–240 VAC, 50/60 Hz (dual PSU for redundancy)
• Output Power Bus: +12 V DC, 4.2 A per slot
• Load-Sharing: Automatic between two power supplies
• Indicators: 2 × front-panel LEDs for PSU health and failover
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: –30 °C to 70 °C
• Humidity: 10%–85% RH, non-condensing
• Mounting: 19″ 1RU; ears fit front or rear mounting positions
• Certifications: CE, FCC, RoHS compliant

What’s Included

• 1 × BR-400 power frame chassis
• 2 × AC power supply modules (100–240 VAC input)¹
• 4 × Rack-mount ears (front/rear configurable)
• 1 × User manual
