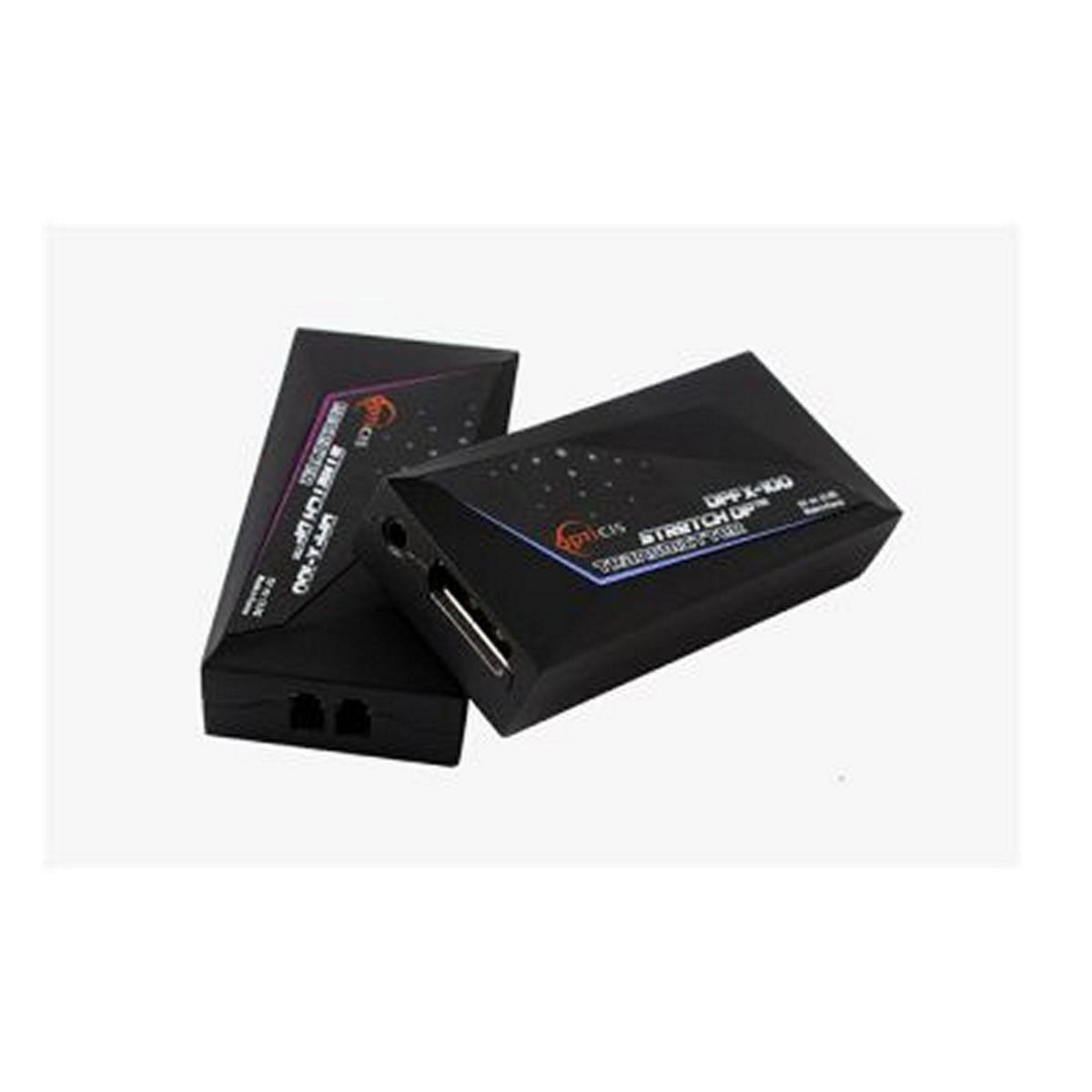

Opticis DPFX-100-TR Two-Fiber Detachable DisplayPort Extender

Bring high-resolution DisplayPort signals to distant displays without compromise. The DPFX-100-TR transmits WQXGA (2560×1600) at 60 Hz or 4K (3840×2160) at 30 Hz over two LC multimode fibers up to 200 m, delivering pristine, uncompressed video for control rooms, digital signage, and simulation environments.

Installation is effortless: hot-swappable transmitter and receiver modules draw power from the DisplayPort interface or included USB adapters, while patent-pending Self-EDID management automatically captures and restores display EDID for true plug-and-play. Rugged die-cast aluminum housings provide EMI/RFI shielding, and intuitive LEDs display power and signal status in real time.

Key Features

  • Dual-Mode DisplayPort: Supports DisplayPort 1.1a and DP++ for broad compatibility
  • High-Resolution Extension: WQXGA @ 60 Hz or 4K @ 30 Hz over fiber
  • Long-Reach Transmission: Up to 200 m (656 ft) over two LC multimode fibers
  • Self-EDID Programming: Auto-capture and restore of display EDID for seamless setup
  • Auto-Power Switching: Bus-powered via DP interface or external 5 V ⎓ 1 A USB adapters
  • Compact & Durable: Die-cast aluminum modules with EMI/RFI shielding
  • LED Indicators: Visual status for power, transmission, and detection
  • Auxiliary Channel over Fiber: I²C support for remote management

Technical Specifications

  • Signal Bandwidth: 10.8 Gbps total (2.7 Gbps per lane)
  • Resolution Support: Up to 2560×1600 @ 60 Hz or 3840×2160 @ 30 Hz
  • Maximum Distance: 200 m (656 ft) over two 50/125 µm multimode fibers
  • Power Input: +5 V ⎓ 1 A via USB adapter or 3.3 V from DP pin #20
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: –10 °C to 85 °C
  • Connector Types: DisplayPort input/output, duplex LC fiber connectors
  • Certifications: CE, FCC, UL, Class 1 Laser Safety

What’s Included

  • 1× Transmitter module (Tx)
  • 1× Receiver module (Rx)
  • 1× 0.2 m male-to-female DisplayPort copper cable
  • 2× Micro-USB to USB power cables
  • 2× USB-powered 5 V ⎓ 1 A adapters
  • 1× User manual
