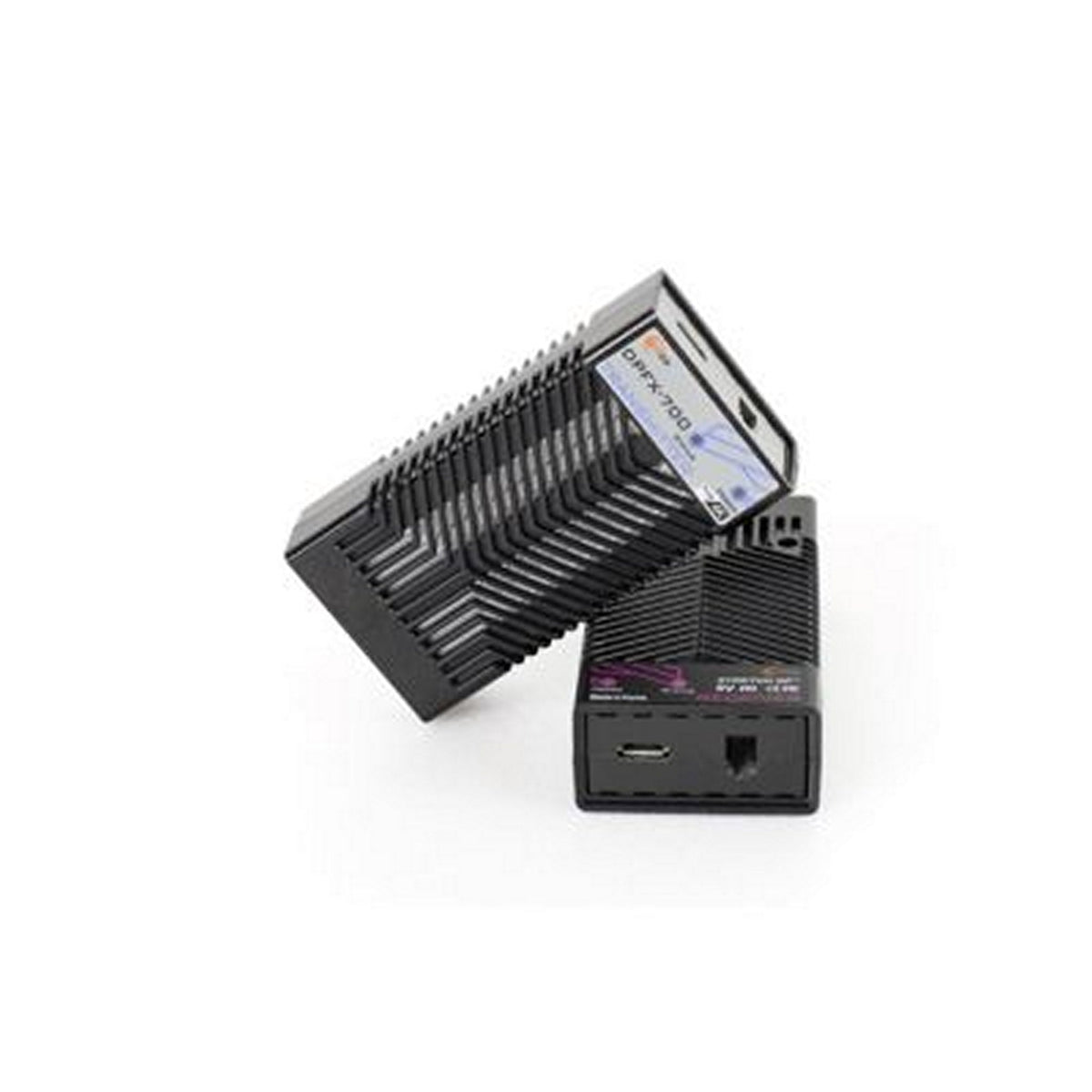

Opticis DPFX-700-TR DisplayPort 1.2 Single-Fiber Optical Extender with Copper Extension
In stock SKU: OPTS-DPFX700TR

EchoForge

Opticis DPFX-700-TR DisplayPort 1.2 Single-Fiber Optical Extender with Copper Extension

$2,391.00

Opticis DPFX-700-TR DisplayPort 1.2 Single-Fiber Optical Extender with Copper Extension Experience seamless 4K UHD (4096×2160 @ 60 Hz) over one LC multimode fiber up to 200 m (656 ft) with the Opticis DPFX-700-TR. Its detachable transmitter and receiver modules deliver uncompressed DisplayPort...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Opticis DPFX-700-TR DisplayPort 1.2 Single-Fiber Optical Extender with Copper Extension

Experience seamless 4K UHD (4096×2160 @ 60 Hz) over one LC multimode fiber up to 200 m (656 ft) with the Opticis DPFX-700-TR. Its detachable transmitter and receiver modules deliver uncompressed DisplayPort 1.2 signals, while a built-in 2 m copper extension cable enables flexible installations in tight spaces. Perfect for control rooms, digital signage, and high-end visualization systems.

Installation is plug-and-play thanks to patent-pending Self-EDID programming and auto-power switching from DisplayPort or USB. Rugged die-cast aluminum housings offer EMI/RFI shielding and efficient heat dissipation, and front-panel LEDs provide instant feedback on power and link status. Hot-swappable modules ensure zero downtime during maintenance or upgrades.

Key Features

  • Single-Fiber Extension: Up to 200 m (656 ft) over OM3 multimode fiber
  • 4K UHD @ 60 Hz: Uncompressed 4096×2160 with full 4:4:4 color
  • Copper Extension: Includes 2 m DisplayPort cable for installations in tight or obstructed areas
  • Self-EDID Programming: Automated EDID capture and restoration for true plug-and-play
  • Auto-Power Switching: Draws 3.3 V from DP or 5 V from USB (cables and adapters included)
  • Durable Construction: Die-cast aluminum modules with superior EMI/RFI shielding
  • LED Status Indicators: Real-time visual feedback on power and link integrity
  • Multi-Stream Transport: Supports multiple displays over a single fiber pair

Technical Specifications

  • Interface Standard: DisplayPort 1.2 (DP++ supported)
  • Max. Resolution: 4096×2160 @ 60 Hz (4:4:4 chroma)
  • Data Rate: 21.6 Gbps total (5.4 Gbps per lane)
  • Transmission Distance: 200 m (656 ft) over one LC multimode fiber (OM3)
  • Connector Types: 1× DisplayPort input/output; 1× LC fiber; 1× 2 m DP copper cable
  • Power Requirements: 3.3 V via DP pin #20 or 5 V ⎓ 1 A via USB (cables and adapters included)
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: –30 °C to 70 °C
  • Humidity: 10 %–85 % RH, non-condensing
  • Compliance & Safety: CE, FCC, Class 1 Laser Eye Safety, RoHS

What’s Included

  • 1× Transmitter module (Tx)
  • 1× Receiver module (Rx)
  • 2 m male-to-male DisplayPort copper extension cable
  • 2× USB-to-DC power cables and adapters
  • User manual
