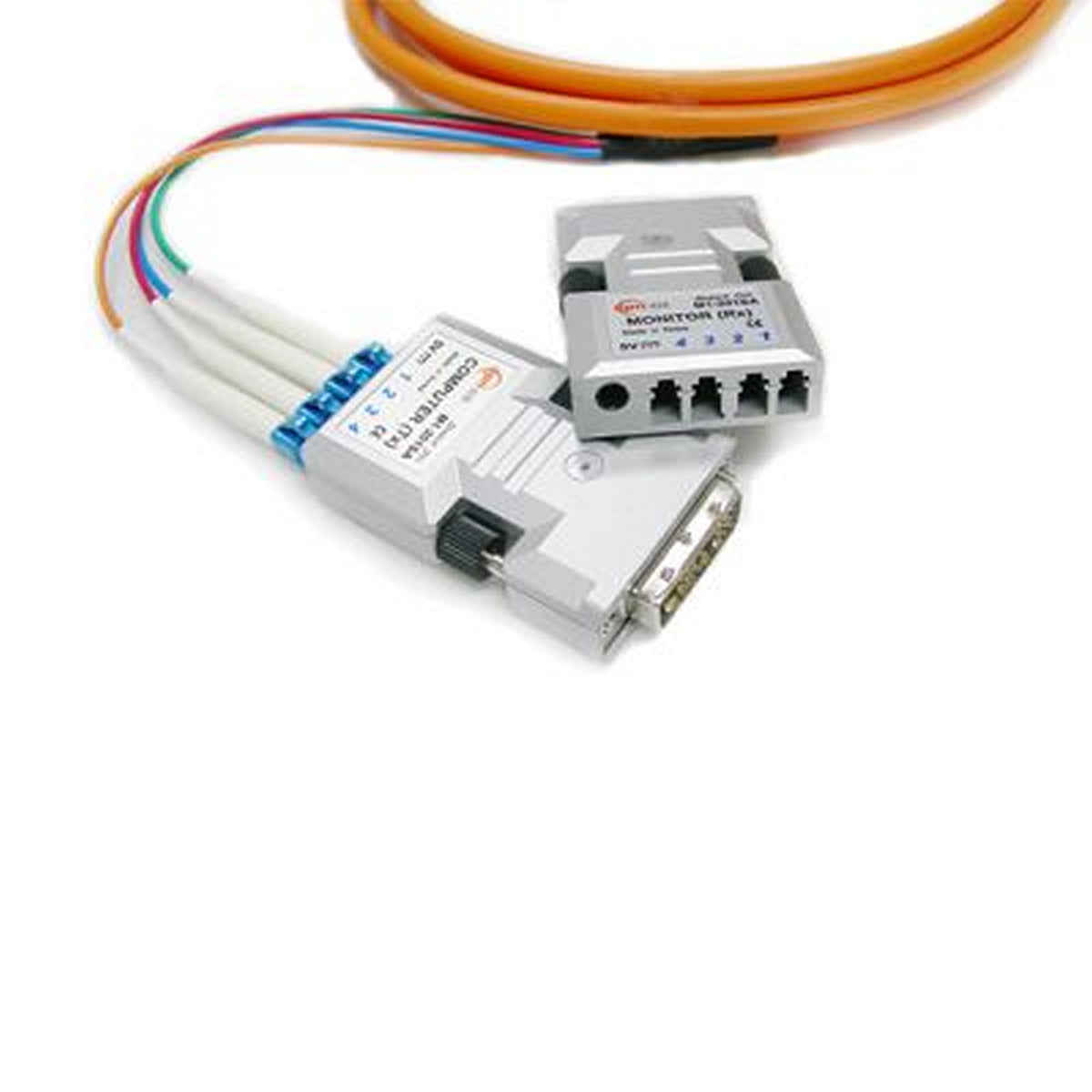

Opticis M1-201SA-TR 4-Fiber Detachable DVI Extension Module
In stock SKU: OPTS-M1201SATR

EchoForge

Opticis M1-201SA-TR 4-Fiber Detachable DVI Extension Module

$573.75

Opticis M1-201SA-TR 4-Fiber Detachable DVI Extension Module The Opticis M1-201SA-TR is a compact optical extension system that transmits uncompressed DVI signals over fiber, delivering up to WUXGA (1920×1200) at 60 Hz without degradation. Ideal for control rooms, medical displays, digital signage, and...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Opticis M1-201SA-TR 4-Fiber Detachable DVI Extension Module

The Opticis M1-201SA-TR is a compact optical extension system that transmits uncompressed DVI signals over fiber, delivering up to WUXGA (1920×1200) at 60 Hz without degradation. Ideal for control rooms, medical displays, digital signage, and any application requiring secure, long-distance video transmission with negligible EMI/RFI.

Featuring patent-pending Self-EDID management, this detachable module automatically reads and programs display EDID for plug-and-play setup. The transmitter draws +5 VDC from most video cards (or an optional adapter), while the receiver always uses an external +5 VDC adapter. Modules are clearly labeled to prevent reverse installation, and LED indicators provide status feedback.

Key Features

  • Transmission Distance: Up to 500 m (1,640 ft) over duplex LC multimode fiber
  • Resolution Support: Uncompressed DVI up to WUXGA (1920×1200) at 60 Hz
  • EDID Management: Patent-pending Self-EDID programming for easy setup
  • Fiber Interface: Two duplex LC receptacles supporting 62.5/125 µm or 50/125 µm multimode fiber
  • Power Options: Auto-switching +5 V from video card or AC/DC adapter (receiver requires adapter)
  • Form Factor: Compact detachable modules with industry-standard connectors
  • LED Indicators: Power and signal status feedback on both transmitter and receiver

Technical Specifications

  • Dimensions: 1.54" × 0.59" × 2.32" (3.9 × 1.5 × 5.9 cm)
  • Weight: 0.99 lbs (0.45 kg)
  • Bandwidth: Up to 1.65 Gbps per graphic channel
  • Compliance: DVI 1.0, DDC 2B virtual
  • Power Input (Tx): +5 V DC, up to 1 A (auto-switching)
  • Power Input (Rx): +5 V DC, 1 A (3 A option for medical adapter)
  • Operating Temperature: 0 °C to 50 °C (General), 0 °C to 40 °C (Medical)
  • Storage Temperature: –30 °C to 70 °C
  • Fiber Core: 62.5/125 µm or 50/125 µm multimode
  • Certifications: CE, FCC, IEC/EN 60825-1 Class 1 Laser Eye Safety
  • Warranty: One-year limited

What's Included

  • Transmitter module (Tx)
  • Receiver module (Rx)
  • DC power adapters, +5 V 1 A (×2)
  • User manual
