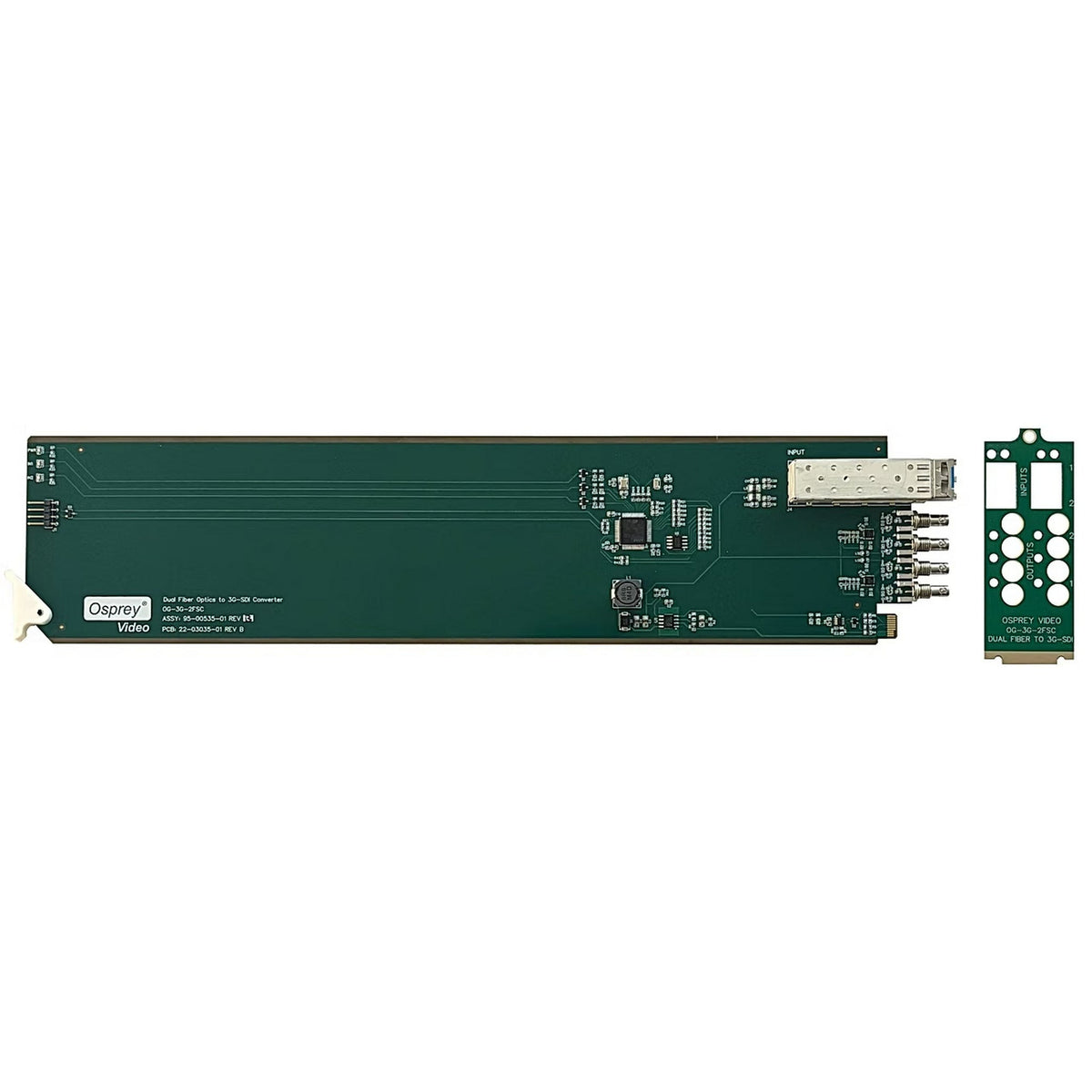

Osprey OG-3G-2FSC Dual Fiber to 3G SDI Converter

OG 3G 2FSC is a dual fiber to 3G SDI converter for openGear systems. It supports two LC single mode fiber inputs and provides two 3G SDI HD BNC outputs with two parallel outputs for each input. The module includes front LEDs for power and signal lock status.

The converter uses single mode fiber with 9um and 125um core sizes and supports wavelengths from 1270nm through 1610nm. Sensitivity is -24dBm at 3G SDI. It supports SMPTE 259, 292, 424, and DVB ASI standards and includes HDR support.

OG 3G 2FSC fits a standard openGear single slot configuration and supports up to 20 cards per frame in OGx and OG3 frames, and up to 10 cards per frame in DFR8321 frames. It includes the openGear card, rear module, and mounting hardware.

Key Features

• Fiber inputs: 2 x LC single mode fiber inputs
• SDI outputs: 2 x 3G SDI HD BNC with two parallel outputs per input
• Visual indicators: Front LEDs for power and signal lock
• Reclocking: Integrated reclocker
• Single slot design: Supports two cards per rear module

Technical Specifications

• Fiber Type: Single mode fiber 9um and 125um
• Connector: Duplex LC
• Wavelength: 1270nm through 1610nm
• Sensitivity: -24dBm at 3G SDI
• Video Outputs: 2 x 3G SDI HD BNC, two parallel outputs for each input
• Standards: SMPTE 259, 292, 424, DVB ASI, HDR support
• Power: 2.5W max
• Size: openGear standard, single slot
• Operating Temperature: 0 to 40 C (32 to 104 F)
• Storage Temperature: -40 to 60 C (-40 to 140 F)
• Humidity: 10 to 90 percent non condensing
• Altitude: Less than 3000m
• User Interface: openGear Dashboard control for Windows, Linux, macOS; signal lock status; card state; frame connection state; manufacturer and product information
• Compatibility: OGx and OG3 up to 20 cards per frame; DFR8321 up to 10 cards per frame
