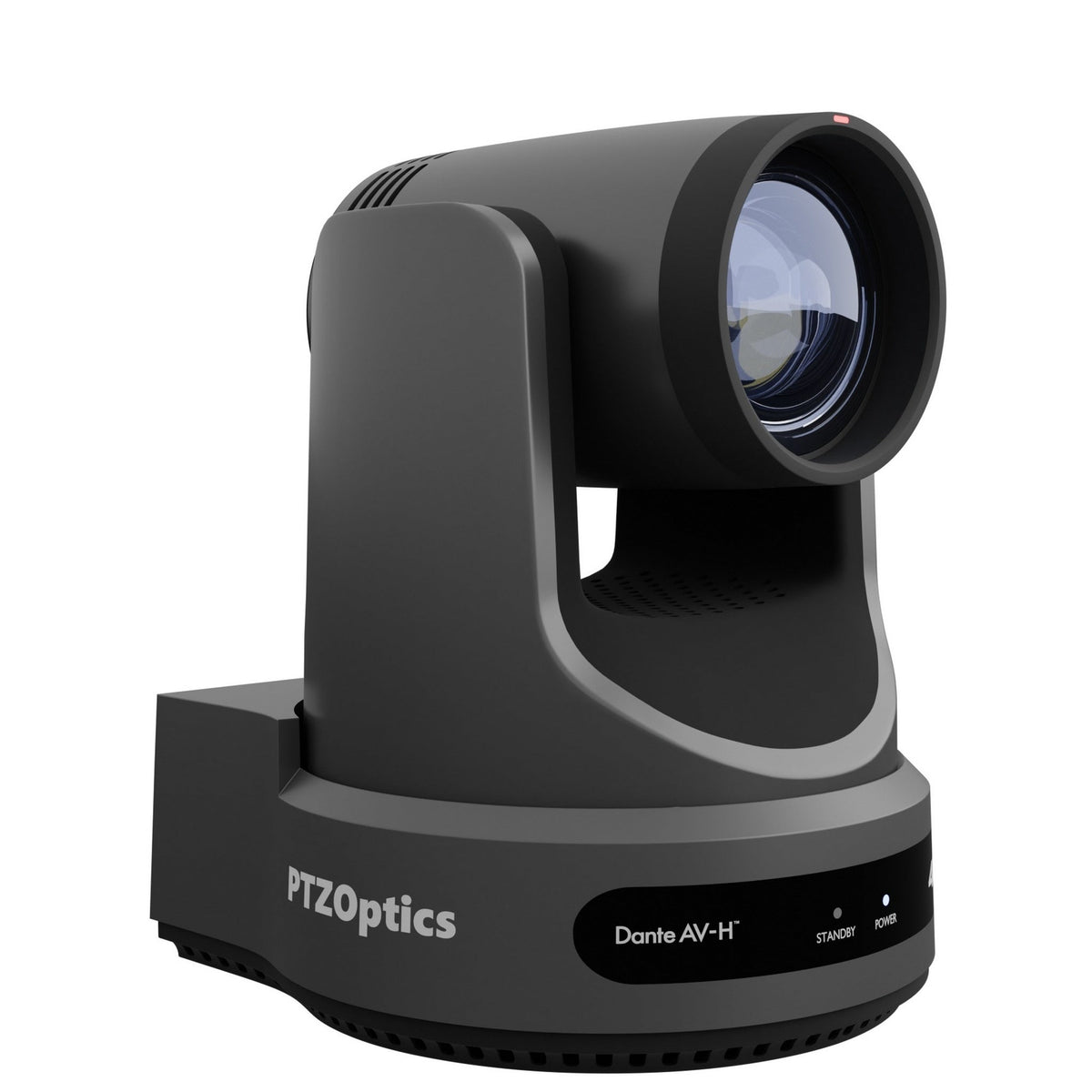

PTZOptics Link 4K 30x Zoom PTZ Camera

PTZOptics Link 4K 30x Zoom PTZ Camera, Gray

The PTZOptics PT30X-LINK-4K-GY Link 4K 30x PTZ Camera is a Dante-enabled 4K PTZ camera built for professional streaming, video production, conferencing, and large-room capture. It combines UHD 4K60 HDMI output, 30x optical zoom, auto-tracking, and flexible SDI, HDMI, USB, IP, and Dante AV-H connectivity.

This camera is ideal for buyers who need a 4K PTZ camera with Dante AV-H for lecture halls, houses of worship, corporate studios, event venues, and hybrid meeting spaces. The 30x optical zoom supports tight long-distance framing, while Presenter Lock and group auto-framing help keep presenters, speakers, and groups centered during live production.

The PT30X-LINK-4K-GY supports professional control through IP, RS-232, RS-485, IR, VISCA, Pelco-D, and Pelco-P workflows. Its 1/1.8-inch Sony CMOS sensor, 3D noise reduction, wide dynamic range, PoE+ support, and built-in tally light make it a flexible camera for modern AV-over-IP installations.

Key Features

• UHD 4K60 Video: Captures up to 3840 x 2160p at 60 fps over HDMI for detailed professional video production.
• 30x Optical Zoom: Frames presenters, stages, and distant subjects from the back of larger rooms and venues.
• Dante AV-H Connectivity: Integrates video and audio into Dante-enabled networked AV systems for streamlined routing and management.
• Built-In Auto-Tracking: Presenter Lock and group auto-framing help follow subjects without constant manual camera operation.
• Flexible Output Options: Includes HDMI 2.0, 3G-SDI, USB 2.0, and IP output for multi-format production workflows.
• Professional Camera Control: Supports IP, RS-232, RS-485, IR, VISCA, Pelco-D, and Pelco-P control methods.
• PoE+ Support: Powers the camera over a compatible network connection or through a 12V DC power source.
• Built-In Tally Light: Provides visual on-camera status for live switching, broadcast, and multi-camera production setups.

Technical Specifications

• Product Type: Dante-enabled 4K PTZ camera
• Model: PT30X-LINK-4K-GY
• Series: PTZOptics Link 4K
• Color: Gray
• Image Sensor: 1/1.8-inch Sony CMOS sensor
• Effective Pixels: 8.42 megapixels
• Optical Zoom: 30x
• Lens: f = 7.1mm to 210mm, F1.61 to F5.19
• Field of View: Horizontal 2.5° tele to 59.2° wide; vertical 1.4° tele to 34.6° wide
• Display Field of View: 66.2°
• Minimum Illumination: 0.5 lux at F1.8, AGC on
• Shutter Speed: 1/30s to 1/10000s
• HDMI Resolution: 3840 x 2160p at 60, 59.94, 50, 30, 29.97, and 25 fps; 1920 x 1080p at 60, 59.94, 50, 30, 29.97, and 25 fps; 1920 x 1080i at 60, 59.94, and 50 fps; 1280 x 720p at 60 and 59.94 fps
• SDI Resolution: 1920 x 1080p at 60, 59.94, 50, 30, 29.97, and 25 fps; 1920 x 1080i at 60, 59.94, and 50 fps; 1280 x 720p at 60 and 59.94 fps
• Video Outputs: HDMI 2.0, 3G-SDI, USB 2.0 Type-A, RJ45 IP
• Network Port: 10/100/1000M adaptive Ethernet
• Audio Interface: 3.5mm line-level input
• Pan Range: ±170°
• Pan Speed: 1.7° to 100° per second
• Tilt Range: -30° to +90°
• Tilt Speed: 1.7° to 69.9° per second
• Presets: 255 presets
• Preset Accuracy: 0.1°
• Image Controls: Flip, mirror, and freeze supported
• Power Supply: DC 12V or PoE+ 802.3at
• Maximum Input Power: 18W
• Material: Aluminum and plastic
• Control Interfaces: RS-232 input, RS-232 output, RS-485 input/output, IR, IP
• RS-232 Control Distance: Up to 98.5 ft
• RS-485 Control Distance: Up to 3,937 ft
• Control Protocols: VISCA, Pelco-D, Pelco-P
• IR Addresses: 4
• IR Control Distance: Up to 30 ft
• Power Jack: JEITA type DC IN 12V
• Working Environment: Indoor
• Operating Temperature: 14°F to 104°F
• Storage Temperature: -40°F to 140°F
• Dimensions: 7.12" L x 6.69" W x 8.98" H
• Weight: 4.41 lbs

What’s Included

• PTZOptics PT30X-LINK-4K-GY Link 4K 30x PTZ Camera
