Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth
Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth The Pure Resonance Audio MA120BT is a versatile 7 channel commercial mixer amplifier equipped with built-in Bluetooth and a 70V/100V transformer solution for small to medium scale audio installations. With its...
PRODUCT DETAILS
Everything you need to know.

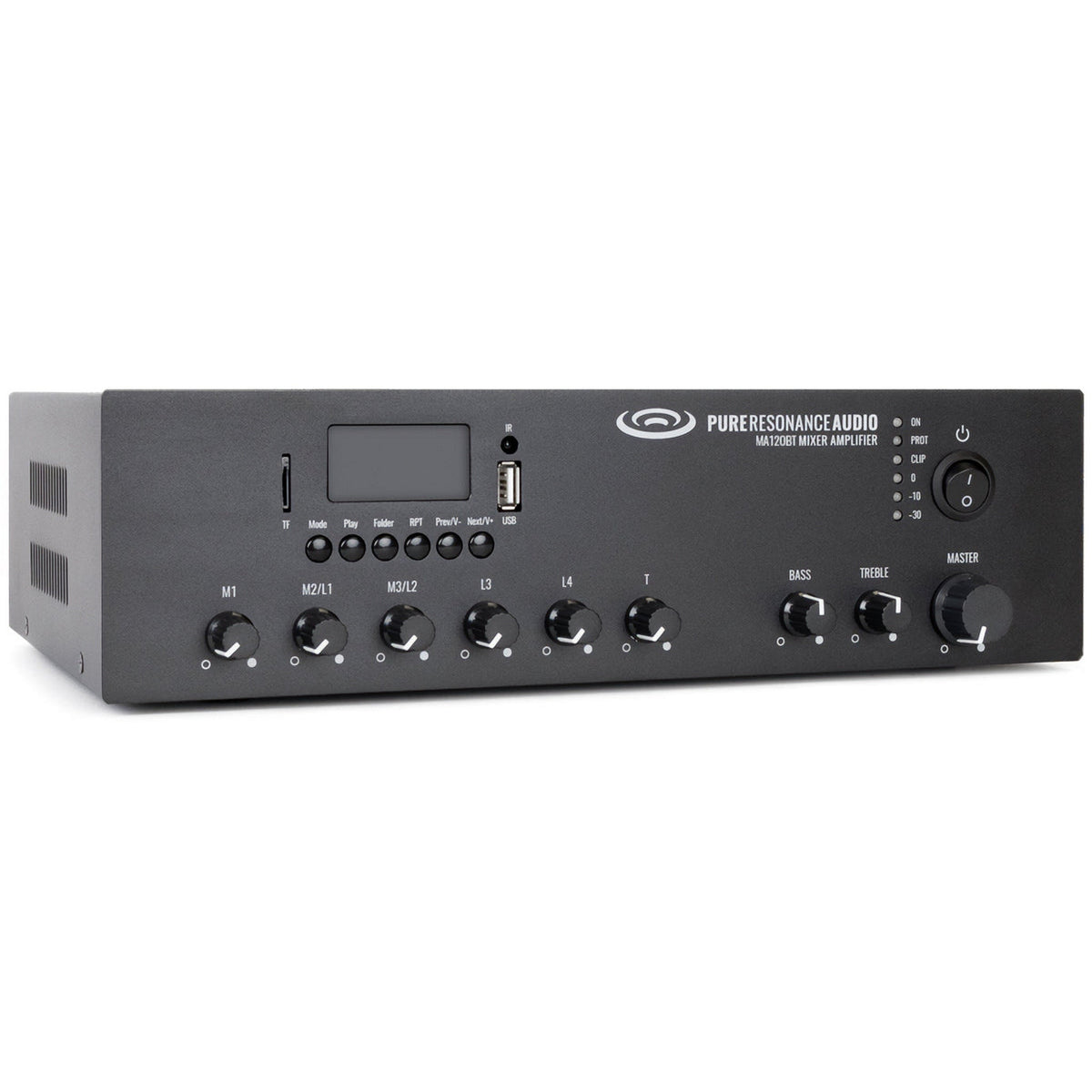

Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth
The Pure Resonance Audio MA120BT is a versatile 7 channel commercial mixer amplifier equipped with built-in Bluetooth and a 70V/100V transformer solution for small to medium scale audio installations. With its compact form and flexible outputs, it brings reliable performance to background music, paging, and multi-use venues.
This model offers six traditional input channels plus a dedicated Bluetooth media player input, allowing seamless wireless streaming from smartphones or tablets. It supports a range of speaker output configurations including 70V, 100V, 4 ohm, 8 ohm and 16 ohm, making it suitable for commercial audio systems like offices, retail, restaurants and education facilities.
Designed for straightforward installation and dependable operation, the MA120BT features front-panel controls for mic/line channels, bass/treble adjustment, master volume and remote IR operation. It also includes protection circuitry for short circuit, overload and high temperature conditions, delivering commercial reliability.
Key Features - 120 W Output Power: Provides 120 watts continuous power for commercial audio zones.
- Seven Channel Inputs: Six mic/line channels plus built-in Bluetooth media player for wireless streaming.
- Flexible Speaker Outputs: Supports 70 V, 100 V, 4 ohm, 8 ohm or 16 ohm to match system needs.
- Compact Commercial Design: Low profile installation-friendly chassis ideal for wall or shelf mounting.
- Reliable Protection: Short circuit, clip, overload and high temperature safeguards for enduring performance.
Technical Specifications - Rated Power Output: 120 Watts
- Mode Outputs: 70 V, 100 V, 4 ohm, 8 ohm, 16 ohm
- Frequency Response: 60 Hz to 15 kHz (±3 dB)
- Signal to Noise Ratio (Line): ≥ 85 dB
- Signal to Noise Ratio (Mic): ≥ 72 dB
- Total Harmonic Distortion: Less than 0.5 %
- Power Consumption: 60 W
- Dimensions (H × W × D): ~3.5 in × 11.8 in × 10.8 in
- Weight: ~6.6 lbs (3.0 kg)
- Rated Power Output: 120 Watts
- Mode Outputs: 70 V, 100 V, 4 ohm, 8 ohm, 16 ohm
- Frequency Response: 60 Hz to 15 kHz (±3 dB)
- Signal to Noise Ratio (Line): ≥ 85 dB
- Signal to Noise Ratio (Mic): ≥ 72 dB
- Total Harmonic Distortion: Less than 0.5 %
- Power Consumption: 60 W
- Dimensions (H × W × D): ~3.5 in × 11.8 in × 10.8 in
- Weight: ~6.6 lbs (3.0 kg)
