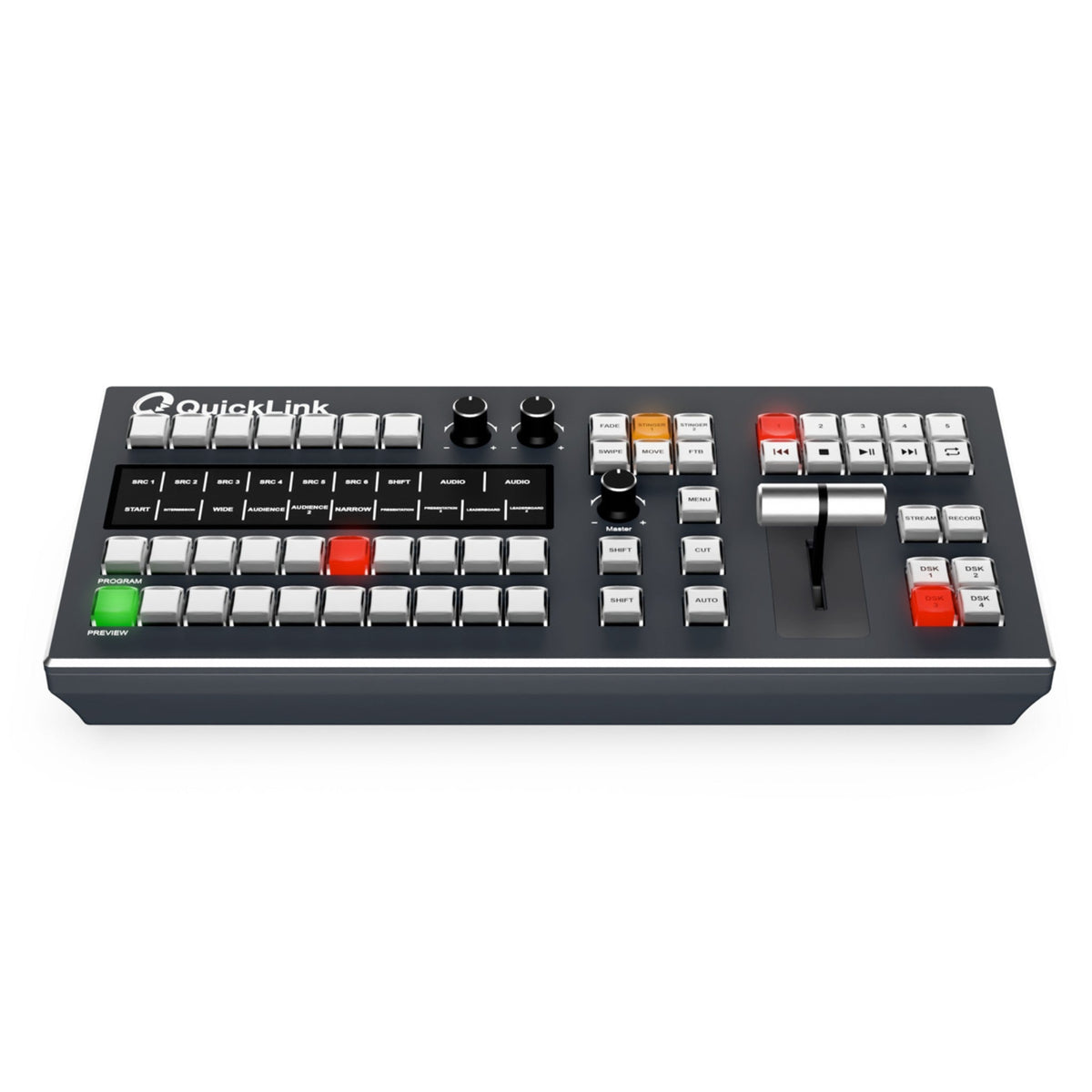

QuickLink StudioPro Proton Compact Live Production Control Panel

QuickLink StudioPro Proton Compact Live Production Control Panel

QuickLink StudioPro™ Proton is a compact, rugged control panel built for fast, confident live production. Designed to natively control your StudioPro™ workflow, Proton puts scene switching, audio control, and media playback at your fingertips—ideal for multicamera production where speed and accuracy matter.

Powered by Bitfocus Companion, StudioPro™ Proton also enables control of your broader studio ecosystem, supporting StudioPro™ control and integration with 600+ devices such as lighting, cameras, audio mixers, and other production elements. Its mapped layout, large backlit buttons, and tactile controls make it approachable for beginners while still delivering the hands-on precision experienced operators expect.

With a small footprint and portable, professional design, Proton is built for reliable operation in fast-paced environments—whether you’re producing from a studio, venue, or traveling kit. Ethernet connectivity and flexible power options help it fit cleanly into modern IP-based production setups.

Key Features For StudioPro Live Production Control

• Native StudioPro™ Control: Direct access to essential StudioPro production functions for streamlined switching and operation.
• Bitfocus Companion Support: Control your StudioPro™ production and 600+ supported devices, including lighting, cameras, audio mixers, and more.
• 54-Button Mapped Layout: Designed for efficient operation with 54 total buttons, including 27 fully configurable keys for your workflow.
• Direct Crosspoint Switching: Includes 10 direct crosspoint buttons for quick, decisive source selection.
• Audio Meter Control: Hands-on audio monitoring/control support to keep your mix in check during live shows.
• Media Playback Control: Built-in media playback control for polished productions with smooth content roll-ins.
• Macro Capability: Create repeatable actions for faster operation and fewer on-air mistakes.
• Tally Support: Tally support via 25-pin D-SUB for clear on-set status and camera confidence.
• Ethernet Connectivity: Integrates into networked production environments using an Ethernet connection.
• Flexible Power Options: Supports DC 12V power and Power over Ethernet (PoE) for simplified setups.

Technical Specifications

• Connection Type: Ethernet
• Total Buttons: 54
• Configurable Keys: 27 configurable buttons
• Direct Crosspoint Buttons: 10
• Audio Meter Control: Yes
• Media Playback Control: Yes
• Macro Capability: Yes
• Tally Support: Yes (25-pin D-SUB)
• Power: DC 12V, PoE
• Dimensions (L x D x H): 13.94 in x 6.49 in x 3.62 in (354 mm x 165 mm x 92 mm, height includes lever)
• Weight: 3.3 lb (1.5 kg)
