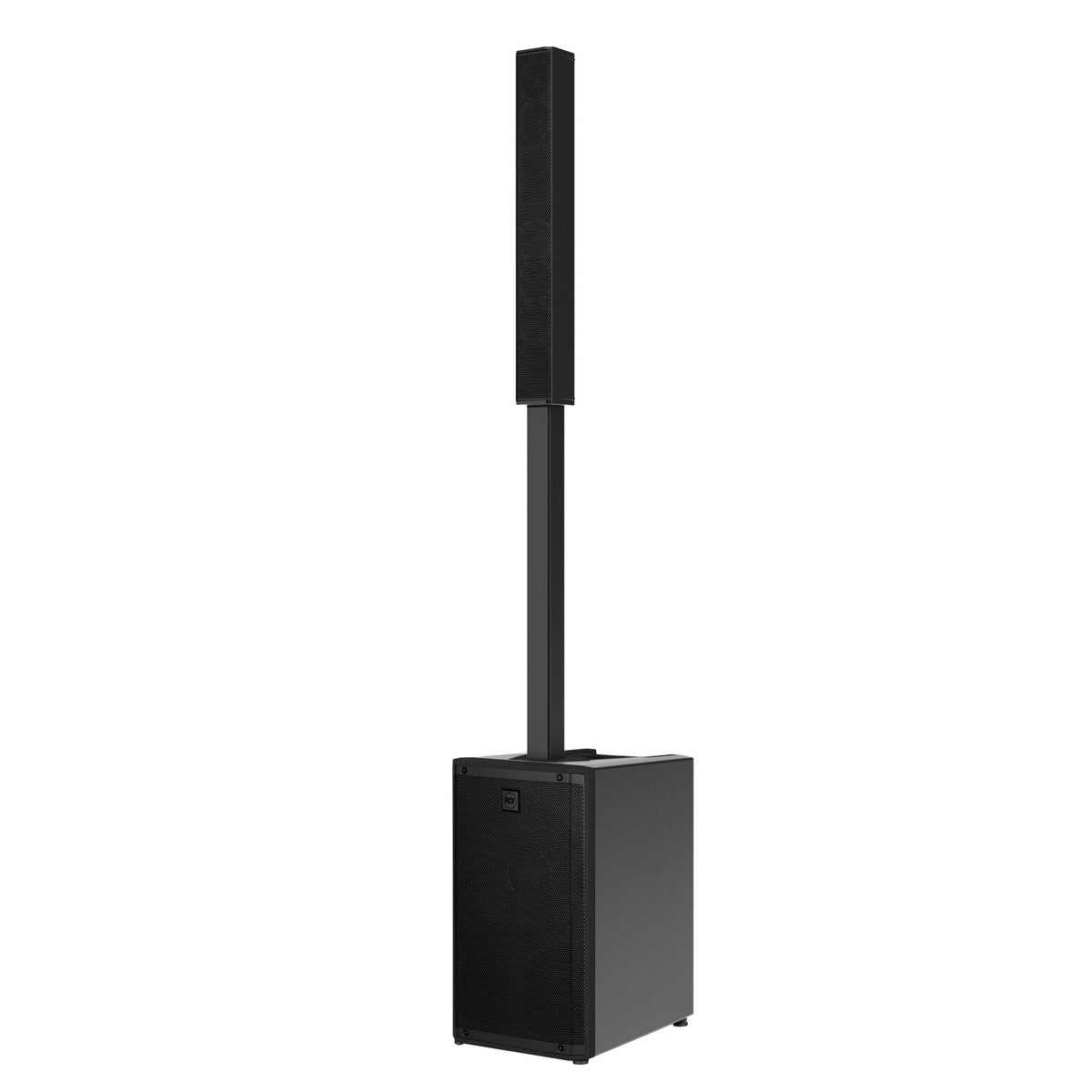

RCF EVOX-J9 Active 2100W 12-Inch Three Way Column Array PA System
RCF EVOX-J9 Active 2100W 12-Inch Three Way Column Array PA System The RCF EVOX J9 is a high-performance, active three-way column array system engineered to deliver exceptional clarity, power, and coverage in a sleek, portable design. Part of the EVOX J Series,...
PRODUCT DETAILS
Everything you need to know.
RCF EVOX-J9 Active 2100W 12-Inch Three Way Column Array PA System
The RCF EVOX J9 is a high-performance, active three-way column array system engineered to deliver exceptional clarity, power, and coverage in a sleek, portable design. Part of the EVOX J Series, it integrates RCF’s touring-grade transducer and amplification technology into a compact format ideal for professional live sound applications.
At the core of the EVOX J9 is a powerful 2100W dual-channel Class-D amplifier with built-in DSP, driving a precision 1.75-inch neodymium compression driver on a 120° × 40° True Resistive Waveguide, six 3-inch full-range neodymium transducers, and a high-output 12-inch bass-reflex woofer. This advanced configuration delivers articulate mids, crystal-clear vocals, and deep, controlled low-frequency response with a maximum output of up to 130 dB SPL.
Designed for fast deployment and professional reliability, the EVOX J9 features a composite cabinet with an integrated aluminum stand mount, dual height configuration for optimized coverage, and a road-ready form factor. It is an ideal solution for bands, DJs, corporate events, and live performers who require powerful sound reinforcement with a clean, unobtrusive stage presence.
Key Features
- 2100W Class-D amplification: Dual-channel onboard amplifier with integrated DSP processing.
- 130 dB maximum SPL: Delivers high output and consistent performance for medium to large venues.
- Three-way speaker design: Optimized for clear highs, detailed mids, and controlled low-frequency response.
- Wide dispersion waveguide: 120° × 40° True Resistive Waveguide for even audience coverage.
- Portable column array format: Compact design with fast setup and minimal stage footprint.
- Road-ready construction: Composite cabinet with aluminum stand mount for durability.
Technical Specifications
System TypeActive three-way column array PA system
Amplifier Power
2100 W Class-D with built-in DSP
Maximum SPL
130 dB
High-Frequency Driver
1.75 inch neodymium compression driver
Midrange Drivers
6 × 3 inch neodymium full-range transducers
Low-Frequency Driver
12 inch RCF precision woofer, bass-reflex design
Coverage Angle
120° horizontal × 40° vertical
Cabinet Construction
Composite enclosure with aluminum stand mount
Configuration Options
Dual height column configuration
Available Variations
The RCF EVOX J9 is available in six factory configurations, offered in black or white finishes. Each color option is available as a complete system or as individual replacement components.
EVOX-J9 (Black, Full System)
Includes top column speaker, powered 12 inch subwoofer, integrated aluminum stand and spacer system, and padded carrying bag for the top column speaker.
EVOX-J9 (Black, Top Only)
Column array speaker only. Does not include subwoofer, stand system, or accessories.
EVOX-J9 (Black, Sub Only)
Powered 12 inch subwoofer only. Does not include top column speaker or stand components.
EVOX-J9-W (White, Full System)
Includes top column speaker, powered 12 inch subwoofer, integrated aluminum stand and spacer system, and padded carrying bag for the top column speaker.
EVOX-J9-W (White, Top Only)
Column array speaker only. Does not include subwoofer, stand system, or accessories.
EVOX-J9-W (White, Sub Only)
Powered 12 inch subwoofer only. Does not include top column speaker or stand components.
