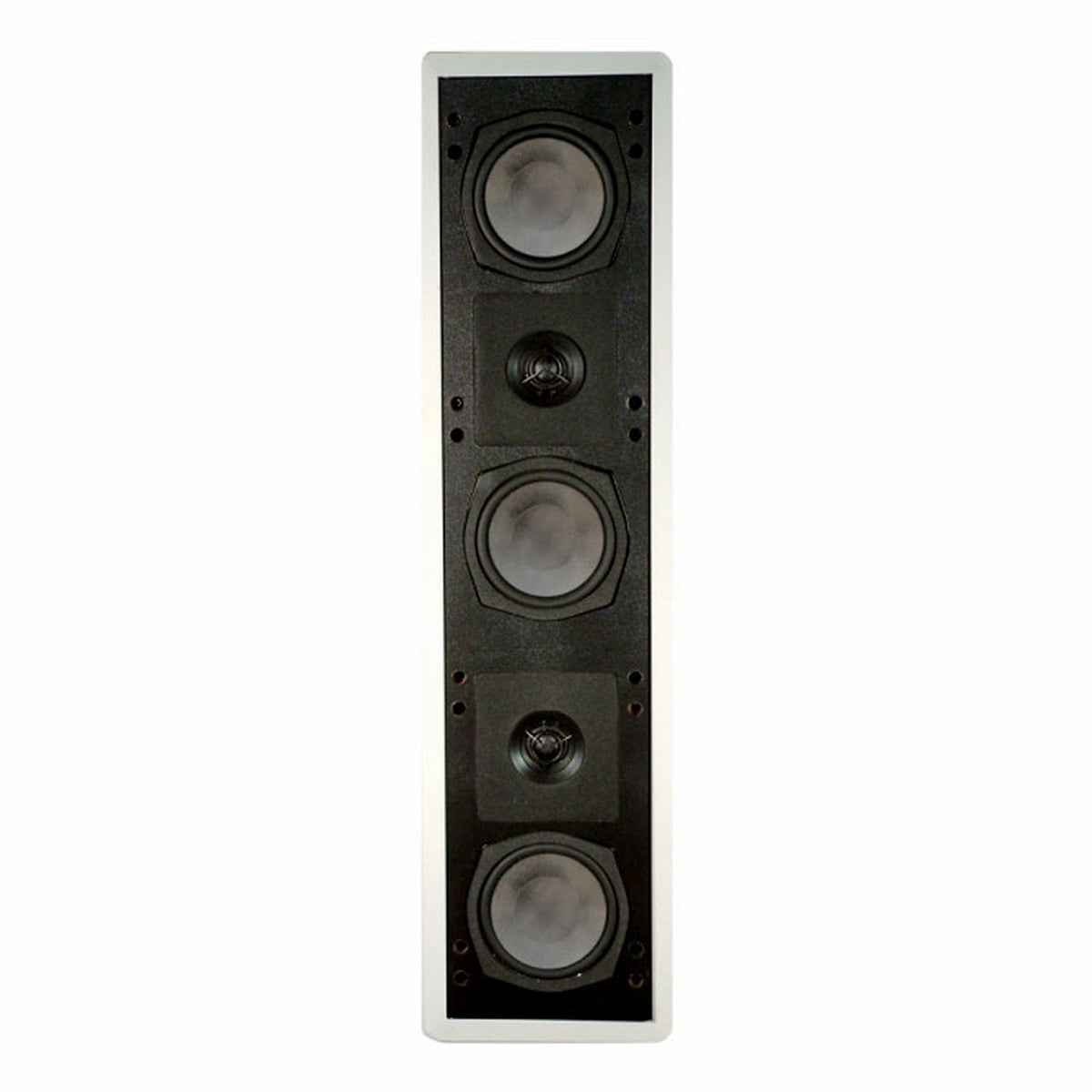

SoundTube CI150 5.25-Inch 2-Way In-Wall LCR Speaker

SoundTube CI150 5.25-Inch 2-Way In-Wall LCR Speaker

The CI150 combines left, right, and center front-channel performance into just two in-wall enclosures using patented triple 5.25" tri-laminate Kevlar/RPF™/glass-fiber flat-piston woofers and dual 1" user-adjustable variable-axis soft-dome tweeters to create a seamless, wide soundstage without the need for a separate center speaker.

Featuring an extruded-aluminum Positive Clamping™ mounting system, the CI150 installs flush for a discreet, furniture-grade finish. Its infinite-baffle sealed enclosure and paintable steel grille integrate into any décor, while the low-profile design pairs perfectly with Premier Collection PC1.5 and PC33.5 speakers.

Key Features

• Woofers: (3) 5.25" RPF® flat-piston fiberglass & Kevlar composite cones with NBR surrounds
• Tweeters: (2) 1" variable-axis soft domes with Unicell™ Acoustic Treatment
• Mounting: Patented extruded-aluminum Positive Clamping™ system
• Enclosure: Infinite-baffle sealed in-wall design
• Inputs: Terminal strip
• Cutout: 7 in (177.8 mm) Ø × 3.87 in (98.4 mm) depth
• Frequency Response: 55 Hz–22 kHz (±3 dB)
• Max SPL @ 1 m: 114 dB
• Impedance: 4 Ω nominal
• Recommended Power: 15–200 W
• Sensitivity: 90 dB @ 2.83 V/1 m
• Grille: Standard-flange, friction-fit, galvanized, powder-coated steel – white, paintable

Technical Specifications

• Color: White
• UPC: 644216205301
• Enclosure Properties: Sealed, infinite-baffle
• Cutout Dimensions: 7" Ø × 3.87" depth
• Frequency Response: 55 Hz–22 kHz (±3 dB)
• Max SPL @ 1 m: 114 dB
• Nominal Impedance: 4 Ω
• Recommended Power: 15–200 W
• Sensitivity: 90 dB @ 2.83 V/1 m
• Source Inputs: Terminal strip
• Optional Accessories: Rough-In Bracket (RB19)

What's Included

• Grille
• Hole Template
• Mounting Assembly
