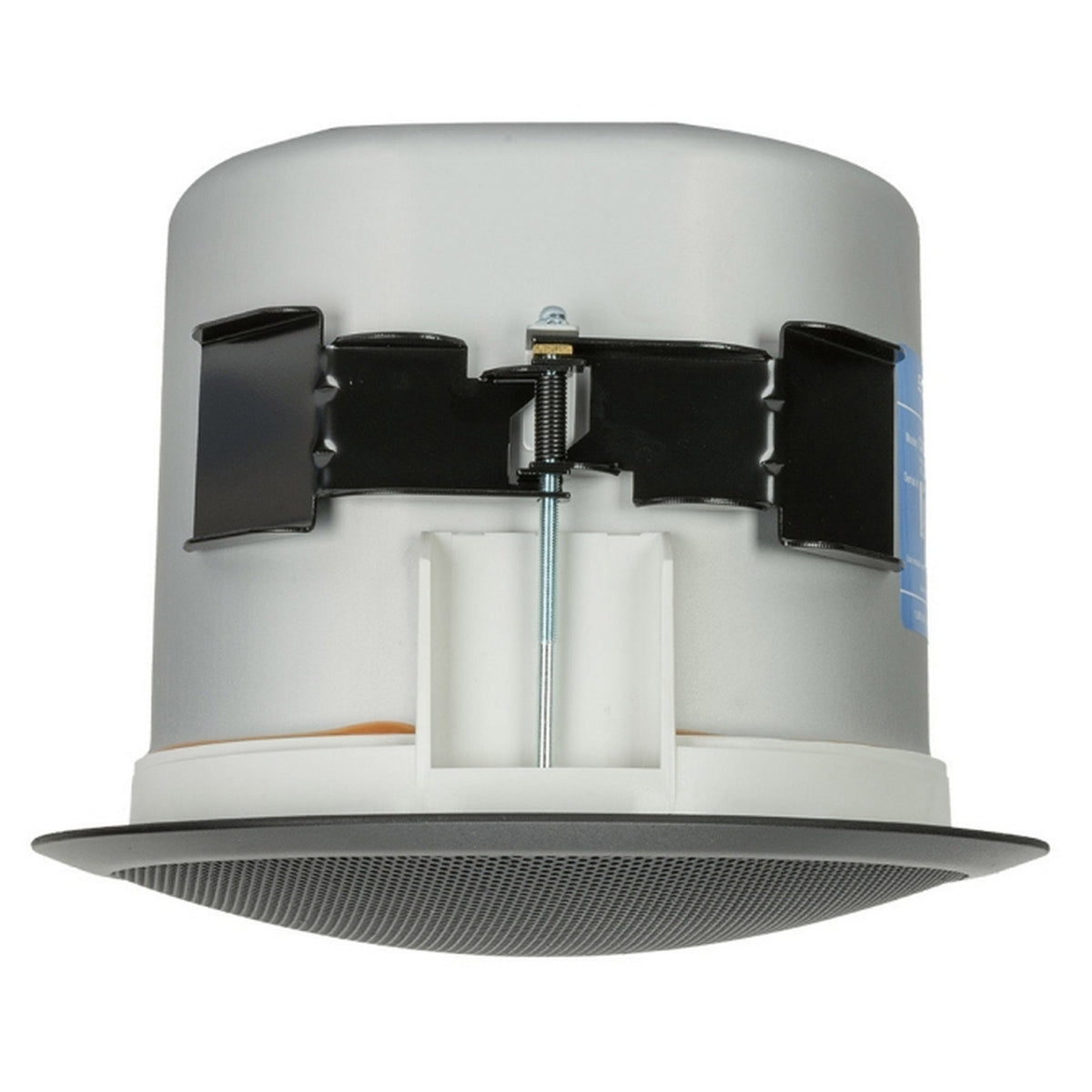

SoundTube CM500i 5.25-Inch Coaxial In‑Ceiling Commercial Speaker - Black
In stock SKU: SOUNT-CM500IBK

EchoForge

SoundTube CM500i 5.25-Inch Coaxial In‑Ceiling Commercial Speaker

$312.75

SoundTube CM500i 5.25-Inch Coaxial In‑Ceiling Commercial Speaker The SoundTube CM500i is a full-bandwidth, coaxial 5.25″ in‑ceiling speaker featuring SoundTube's BroadBeam® waveguide tweeter for consistent, wide coverage. The unit includes a ported backcan and a six-position transformer tap switch for 25/70.7/100V or 8Ω...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

SoundTube CM500i 5.25-Inch Coaxial In‑Ceiling Commercial Speaker

The SoundTube CM500i is a full-bandwidth, coaxial 5.25″ in‑ceiling speaker featuring SoundTube's BroadBeam® waveguide tweeter for consistent, wide coverage. The unit includes a ported backcan and a six-position transformer tap switch for 25/70.7/100V or 8Ω bypass operation, making it well-suited for background music and public announcement systems in commercial spaces.

A blind-mount, fixed-wing installation system supports ceiling thicknesses from 0.25″ to 1.91″. The speaker includes a magnetic steel grille and paint mask for a seamless finish. Certified to UL1480A and UL2043 standards, with CE and RoHS compliance.

With 75W RMS power handling (150W program), 86.5dB sensitivity, and a frequency range down to 55Hz, the CM500i delivers intelligibility and bass response for demanding settings.

Key Features

  • Driver Configuration: Coaxial 2‑way – 5.25″ polypropylene woofer with butyl surround, 1″ convex titanium ferrofluid‑cooled tweeter with BroadBeam® waveguide
  • Transformer Options: Internal six‑position rotary switch supports 25V, 70.7V, 100V taps and 8Ω bypass
  • Power Handling: 75W RMS continuous, 150W program
  • Sensitivity: 86.5dB @ 1W/1m and @ 2.83V/1m
  • Frequency Response: 75Hz–22kHz (±3dB); 55Hz–22kHz (±10dB)
  • Coverage Angle: ~95° at 2kHz, up to 125° at 10kHz (105° averaged) – consistent dispersion via BroadBeam®
  • Mounting System: Blind‑mount constant‑tension fixed‑wing brackets, supports up to 1.91″ ceiling thickness
  • Grille: Magnetic steel mesh, powder‑coated, paintable, includes safety cable and paint shield
  • Enclosure Material: Drawn aluminum backcan with ABS baffle, ported for improved bass
  • Certifications: UL1480A, UL2043, CE, RoHS
  • Inputs: 4‑pin Euroblock connector for daisy‑chain wiring

Technical Specifications

  • Woofer Driver: 5.25″ (133mm) polypropylene cone with butyl rubber surround
  • Tweeter Driver: 1″ titanium convex dome with FerroFluid cooling and BroadBeam® waveguide
  • Crossover Frequency: ~3kHz, 12dB/octave 2nd‑order
  • Nominal Impedance: 8Ω
  • Min Impedance: 4–4.7Ω
  • Directivity Factor (Q): 4.8 (avg), Directivity Index (DI): 6.1dB; at 2kHz Q=9.5, DI=9.8dB
  • Maximum SPL: 105.5dB @ 1m
  • Frequency Response: 75Hz–22kHz (–3dB), 55Hz–22kHz (–10dB)
  • Enclosure Dimensions: Backcan diameter 8.63″ (219.2mm), depth 7.75″ (196.9mm); grille diameter 10.71″ (272mm), grille height 0.96″ (24.4mm)
  • Cutout Diameter: ~8.50″ (≈216mm)
  • Ceiling Thickness Range: 0.25″–1.91″ (6.4–48.5mm)

What's Included

  • One CM500i in‑ceiling speaker unit (Black or White)
  • Magnetic steel grille with safety cable
  • Tile bridge (for drop‑ceiling installations)
  • Conduit plate
  • 4‑pin Euroblock connector
  • Paint mask / shield
