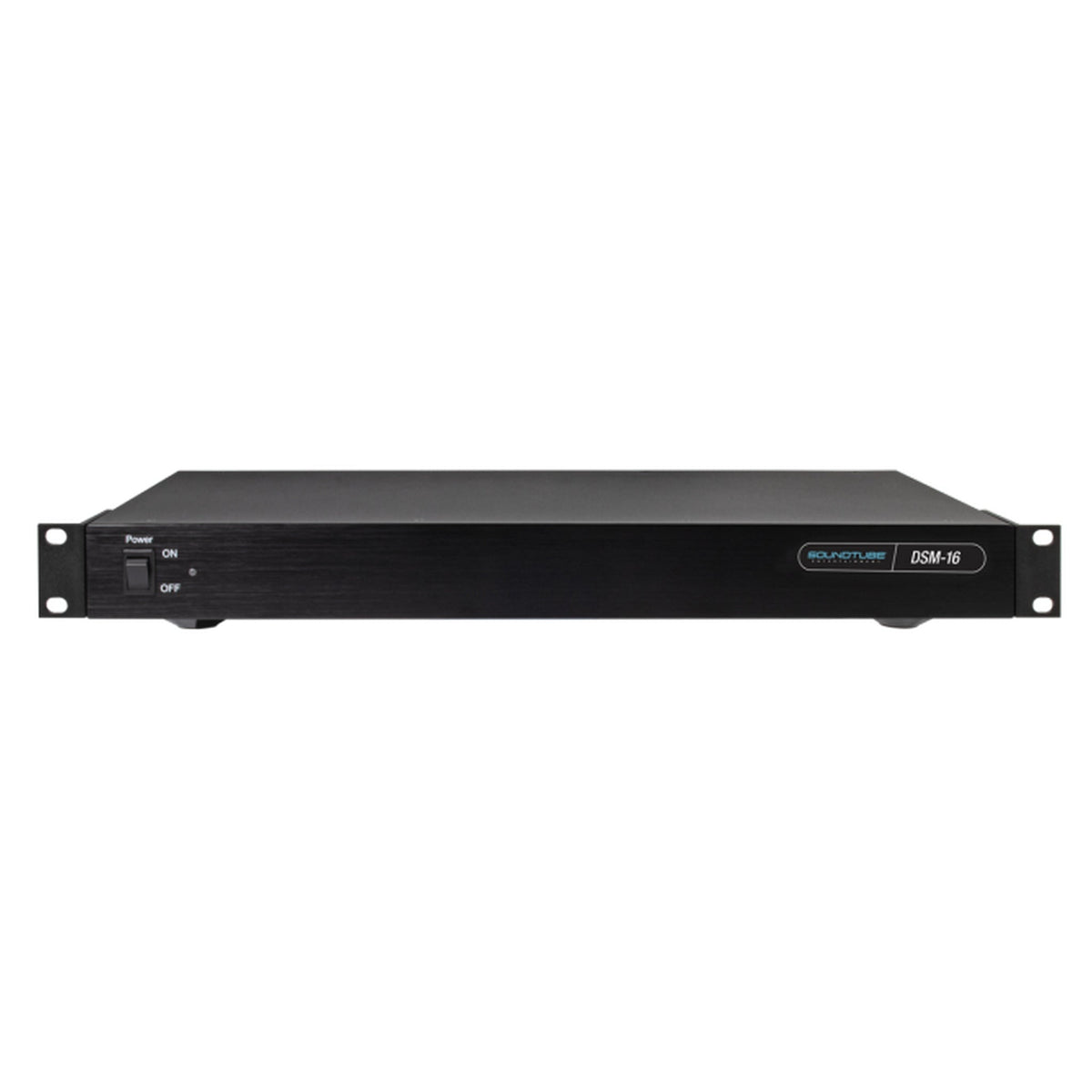

SoundTube DSM‑16 16×16 Dante DSP Matrix and System Manager

SoundTube DSM‑16 16×16 Dante DSP Matrix and System Manager

The DSM‑16 is a Dante-enabled 16×16 DSP system manager designed for distributed audio networks. It bridges legacy 70 V systems with modern IP-based Dante environments, offering flexible mixing, zoning, and signal routing-all controlled via an embedded web interface.

With three user privilege levels (installer, zone user, admin), web-based setup, and compatibility with major automation platforms, the DSM‑16 is ideal for enterprise, commercial, and premium residential installations.

Key Features

• Dante I/O: 16 Dante outputs, up to 8 Dante inputs, plus analog/coax/optical I/O
• DSP Capabilities: Zone and preset management, EQ, delay, level control
• Control Levels: Installer UI, zone user interface, admin interface
• Power Options: PoE+ (40 W) or 24 V DC power supply
• Control Integration: GPIO ports, 12 V triggers, third-party API access
• Connectivity: Ethernet port dedicated to control/configuration
• Enclosure: Rack-mountable 1U steel chassis

Technical Specifications

• Width: 17.25″ (438.2 mm)
• Depth: 9.25″ (235.0 mm)
• Height: 1.75″ (44.5 mm) without feet; 2.0″ (50.8 mm) with feet
• Weight (Net): 7.15 lbs (3.2 kg)
• Shipping Weight: 9.65 lbs (4.4 kg)
• Sampling Rate: 48 kHz / 96 kHz
• Frequency Response: 20 Hz–20 kHz ±1 dB
• Dynamic Range: 104 dB; THD+Noise < 0.01%
• Inputs: 12 RCA unbalanced; 8 balanced; 2 optical; 2 coax; 8 Dante
• Outputs: 4 analog (line-level); 16 Dante
• Control I/O: GPIO (4 ports), 1× 12 V trigger input, 2× outputs
• Power Input: PoE+ or 24 V DC
• Enclosure: Rack‑mount steel chassis

What's Included

• DSM‑16 unit
• 6-pin Euroblock connector
• Mounting hardware for rack installation
• Power supply (if not using PoE+)
